Abiko

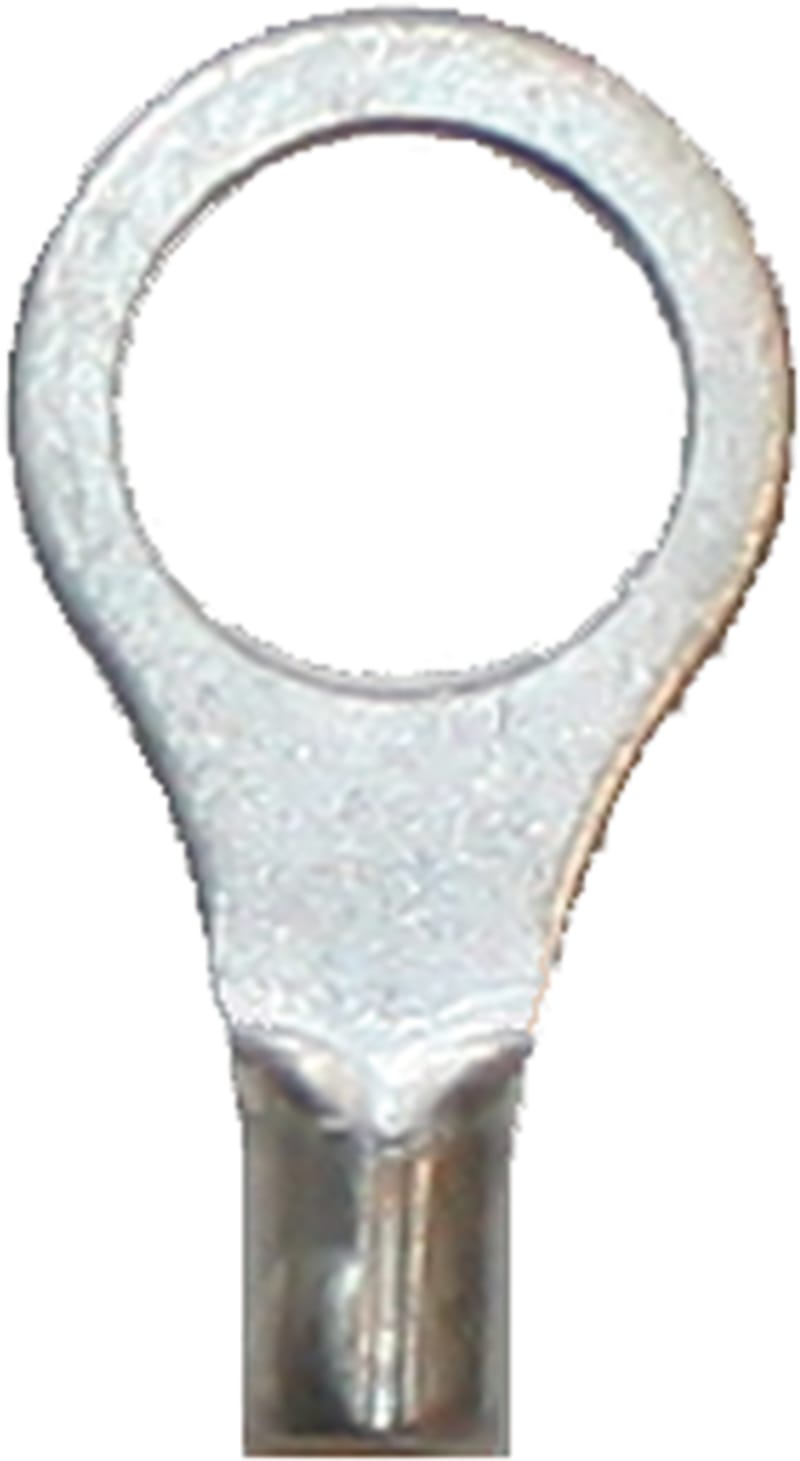

UNINSULATED. RING Terminal 2,5 mm² (B 2585 R)
Part numberB 2585 REAN / GTIN7070920008205HS code8544.42
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko B 2585 R Cable lug, 1,5-2,5mm² for M8.
Technical Specifications
- Manufacturer part number (MPN)
- B 2585 R
- EAN / GTIN
- 7070920008205
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Conductor cross-section
- 2.5 mm²
- Surface protection
- Tinned
- Insulation
- None
- Total length
- 21.8 mm
- Max. current (Imax)
- 27 A
- Flange shape
- Ring shape
- For pull protected connections
- Yes
- Reel/roll packaging
- No
- Material
- Copper
- Bolt dimension (metric)
- 8
- Nominal cross section
- 1.5–2.5 mm²
- Suitable for fine strand conductors
- Yes
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Stud size (imperial)
- 8
- Min. AWG-size
- 16
- Max. AWG-size
- 14
- Country of origin
- Taiwan
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7070920008205
- SAP 1200071971
- Code 81923821
Product Documentation
Document preview: UNINSULATED. RING Terminal 2,5 mm² (B 2585 R) — Specification sheet
More from Abiko
Abiko
Abiko Insulated Wire-End Ferrule 0.5 mm² Orange long barrel
0,5 ORANGE LANG
Abiko
Cable TIE with Steel LOCK White 7,6X 203
TY 5272 M
Abiko
Abiko KST 10 Copper Compression Butt Splice 10 mm² (Uninsulated)
Abiko

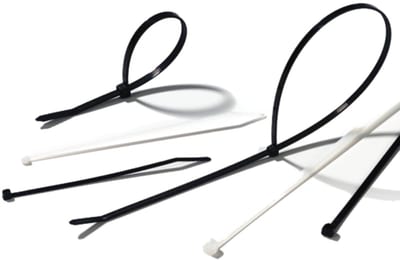

Cable TIE, White 136 X 2,4mm
TY 125-18C
Abiko
Double clamp Transp 16-19mm
DPCN 16/19
Abiko

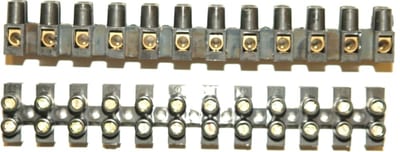

DIN-RAIL TERMINAL, Polyamide (ok 432)
OK 432
Abiko
Abiko KRF 70-6 Copper Tube Cable Lug 70 mm² M6
KRF 70- 6
Abiko

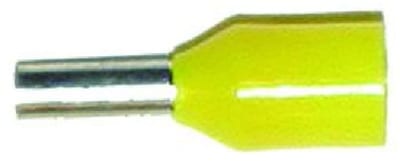

Abiko Insulated Wire-End Ferrule 1 mm² Yellow type HL
