Abiko Compression cable lug, copper, 2.5 mm², M3 stud
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko compression (crimp) cable lug, copper conductor, 2.5 mm² conductor cross-section, M3 bolt hole. Abiko is part of the Elpress Group. Crimped tube-type ring terminal for copper/aluminium conductors; installed with a matched Elpress die and crimp force.
Technical Specifications
- Manufacturer part number (MPN)
- KR 2,5-3
- EAN / GTIN
- 7070920007093
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Conductor cross-section
- 2.5 mm²
- Thread size
- M3
- Surface protection
- Tinned
- Insulation
- None
- Flange shape
- Ring shape
- For pull protected connections
- Yes
- Reel/roll packaging
- No
- Material
- Copper
- Bolt dimension (metric)
- 3
- Nominal cross section
- 2.5 mm²
- Suitable for fine strand conductors
- Yes
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- According to DIN
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920007093
- SAP 1000015121
- Code 8121486
Product Documentation
More from Abiko
Abiko
Abiko A1537GB Insulated Angled Fork (Spade) Terminal 0.5–1.5 mm² M3 (Red)
A 1537 GB
Abiko
Abiko KRF 400-16 Copper Tube Cable Lug 400 mm² M16
Abiko
Abiko KR 1.5-4 Copper Tube Cable Lug 1.5 mm² M4 (Fork Tongue)
KR 1,5-4 G
Abiko
Abiko KST 300 Copper Compression Butt Splice 300 mm² (Uninsulated)
Abiko
Abiko Stainless Steel Cable Tie with Ball Latch, 7.9 x 680 mm
LS 7,9 680 B
Abiko

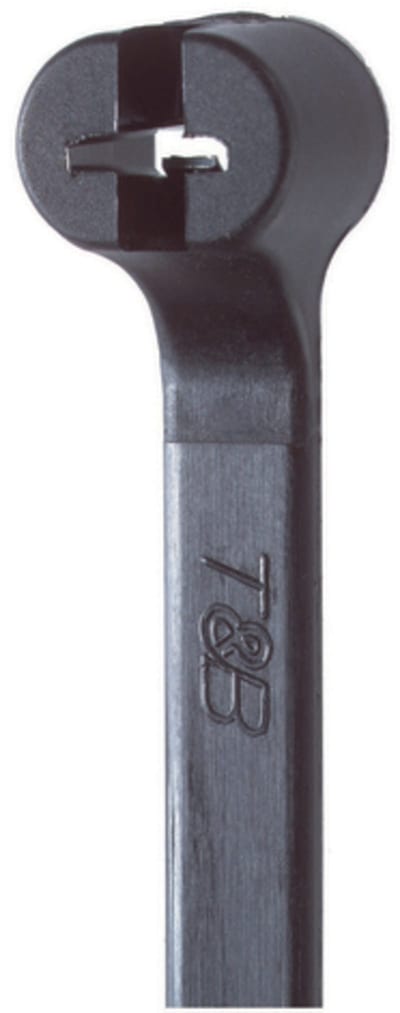

Cable TIE with Steel LOCK Black 3,6X 281
