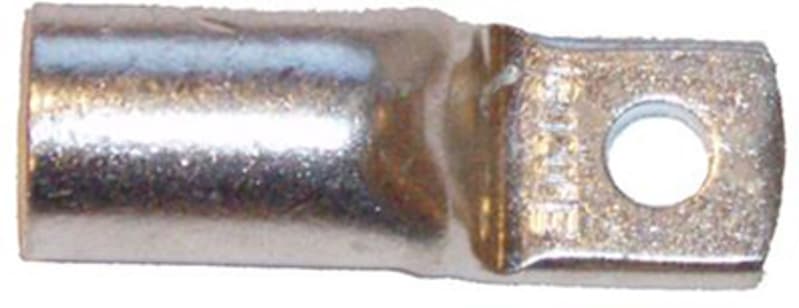

Abiko KRTS 300-10 Copper Tube Cable Lug 300 mm² M10 (Narrow Palm)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KRTS 300-10 — compression (crimp) copper tube cable lug for terminating a 300 mm² conductor onto an M10 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. The palm is narrow (reduced width) for terminals set at close centre distances. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue), narrow palm
- Conductor cross-section
- 300 mm²
- Stud / bolt hole
- M10
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KRTS
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KRTS 300-10
- EAN / GTIN
- 7070920019072
- Sales unit
- pcs
- Package quantity
- 20 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920019072
- SAP 1200605535
- Code 83010536
Product Documentation
More from Abiko
Abiko
Abiko 35-8 Copper Tube Cable Lug 35 mm² M8, 90° Angled Palm
35-8 90 GR
Abiko
Abiko KRT 120-20 Copper Tube Cable Lug 120 mm² M20
Abiko
Abiko A1537GS Insulated Narrow Fork (Spade) Terminal 0.5–1.5 mm² M3 (Red)
A 1537 GS
Abiko
Abiko KRF 16-16 Copper Tube Cable Lug 16 mm² M16
Abiko
UNINSULATED. RING Terminal 16 (B 16- 5 Sh)
B 16- 5 SH
Abiko
Abiko KRF 25-6 Copper Tube Cable Lug 25 mm² M6
KRF 25- 6
Abiko
UNINSULATED. RING Terminal 1,5 mm² (B 1585 R)
Abiko

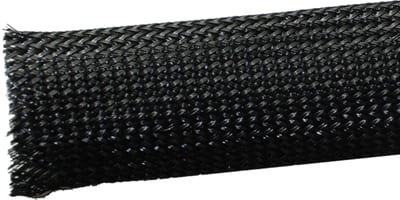

Abiko BSB 5 Braided Protective Sleeve Black Halogen-Free
