Abiko KRTS 50-6 Copper Tube Cable Lug 50 mm² M6 (Narrow Palm)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KRTS 50-6 — compression (crimp) copper tube cable lug for terminating a 50 mm² conductor onto an M6 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. The palm is narrow (reduced width) for terminals set at close centre distances. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue), narrow palm
- Conductor cross-section
- 50 mm²
- Stud / bolt hole
- M6
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KRTS
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KRTS 50-6
- EAN / GTIN
- 7070920016767
- Sales unit
- pcs
- Package quantity
- 50 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920016767
- SAP 1200071935
- Code 81923938
Product Documentation
More from Abiko
Abiko

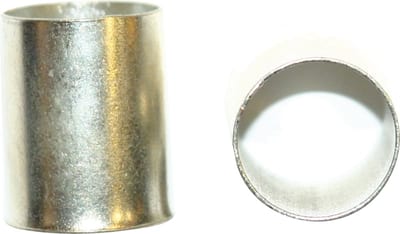

Abiko Uninsulated Wire-End Ferrule 0.75 mm² 6 mm barrel
0,75-06
Abiko

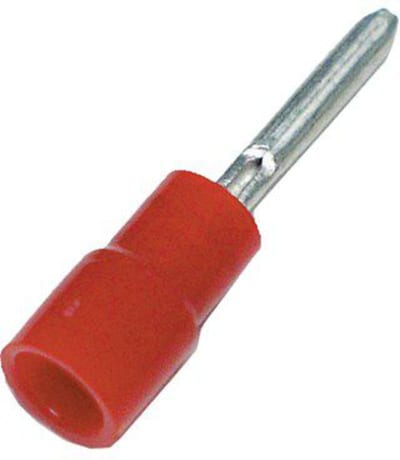

Abiko A 1519 SRM Insulated Pin Cable Lug 1.5 mm² (Macrolon)
Abiko

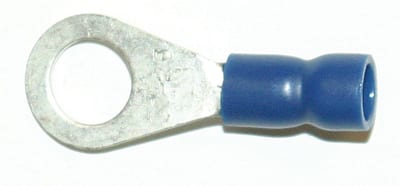

Insulated Copper RING Terminal (A 2516 R)
Abiko

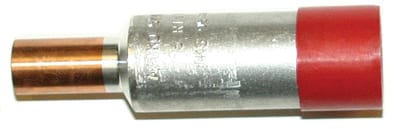

Abiko AKS 25/16 Aluminium-Copper Bimetallic Through Connector 25 mm² Al / 16 mm² Cu
Abiko
Abiko A 4607 FLH Insulated Piggyback Flat Receptacle 4–6 mm², 6.3 × 0.8 mm (Yellow)
Abiko

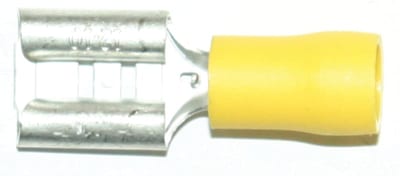

Abiko A 4609 FL Insulated Flat Receptacle 4–6 mm², 9.5 × 0.8 mm (Yellow)
Abiko

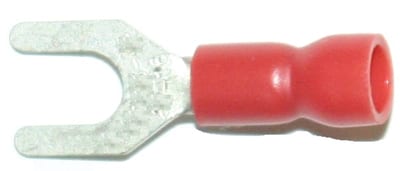

Abiko A 1585 G Insulated Fork Terminal 1.5 mm² M8 (Red)
Abiko
Abiko A 0832 G Insulated Fork Terminal 0.75 mm² M3 (Red)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy KRTS 50-6?
- KRTS 50-6 can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is KRTS 50-6.
- What is the HS code for KRTS 50-6?
- The customs tariff (HS) code for KRTS 50-6 is 8536.90.
- Who manufactures KRTS 50-6?
- KRTS 50-6 is a Abiko product in the Electrical Components range.
- Is a datasheet available for KRTS 50-6?
- Yes — the KRTS 50-6 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for KRTS 50-6?
- The minimum order quantity is 1.
- Is KRTS 50-6 available?
- Yes — KRTS 50-6 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
