Abiko KR 4-6 Copper Tube Cable Lug 4 mm² M6 (Fork Tongue)
Pricing
Request a quote
We reply within 24 hours
Product Description

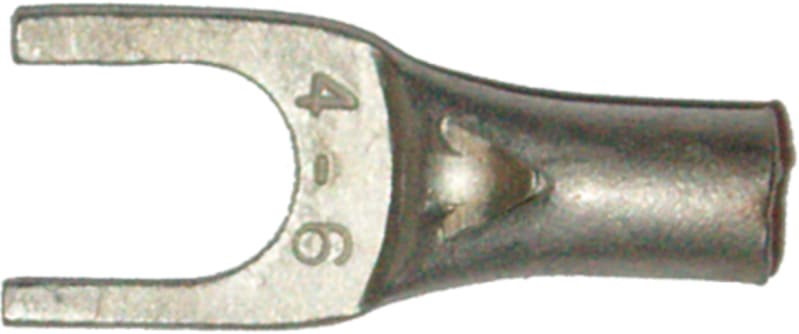

Abiko KR 4-6 G — compression (crimp) copper tube cable lug for terminating a 4 mm² conductor onto an M6 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a fork/spade tongue and a cable inspection hole for correct conductor insertion. The tongue is an open fork (spade) that slides under a partly-loosened nut without full removal. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (fork/spade tongue)
- Conductor cross-section
- 4 mm²
- Stud / bolt hole
- M6
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KR
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KR 4-6 G
- EAN / GTIN
- 7070920016699
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920016699
- SAP 1200071944
- Code 81924011
Product Documentation
More from Abiko
Abiko
Krympinsulated Ring Terminal 2,5Q-6,5
A 2565 RC
Abiko
Abiko 16-8 Copper Tube Cable Lug 16 mm² M8, 90° Angled Palm
16-8 90 GR
Abiko
Uninsulated Flatstifsconnection (B 1457 H 10)
Abiko

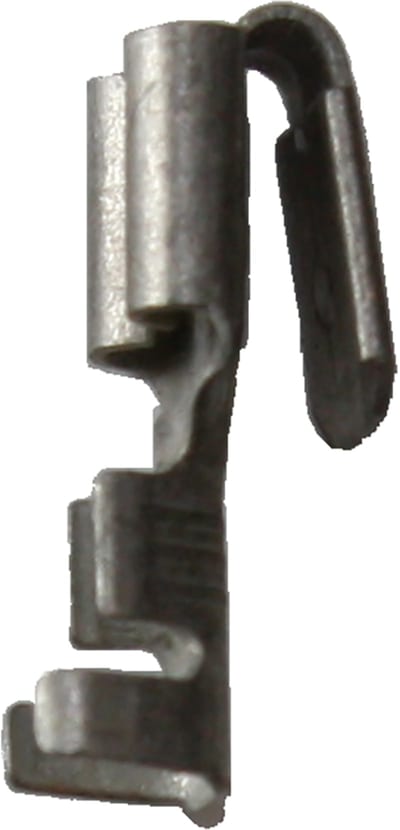

Abiko B 1504 FLH Uninsulated Piggyback Flat Receptacle, 4.8 × 0.8 mm
Abiko
Abiko Compression cable lug, copper, 1.5 mm², M3 stud
KR 1,5-3
Abiko
Abiko B 1507 FLH Uninsulated Piggyback Flat Receptacle, 6.3 × 0.8 mm
Abiko
Abiko B 2457 H 4 Uninsulated Flat-Tab Screw Terminal M4
Abiko

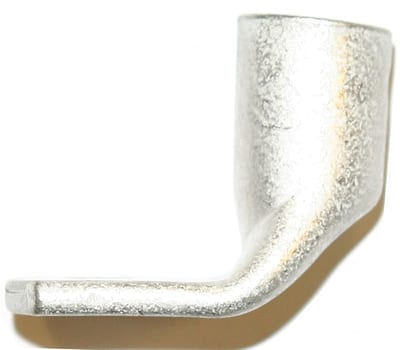

Abiko KRF 10-6 Copper Tube Cable Lug 10 mm² M6, 90° Angled Palm
KRF 10-6 90 GR
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy KR 4-6 G?
- KR 4-6 G can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is KR 4-6 G.
- What is the HS code for KR 4-6 G?
- The customs tariff (HS) code for KR 4-6 G is 8536.90.
- Who manufactures KR 4-6 G?
- KR 4-6 G is a Abiko product in the Electrical Components range.
- Is a datasheet available for KR 4-6 G?
- Yes — the KR 4-6 G datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for KR 4-6 G?
- The minimum order quantity is 1.
- Is KR 4-6 G available?
- Yes — KR 4-6 G is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
