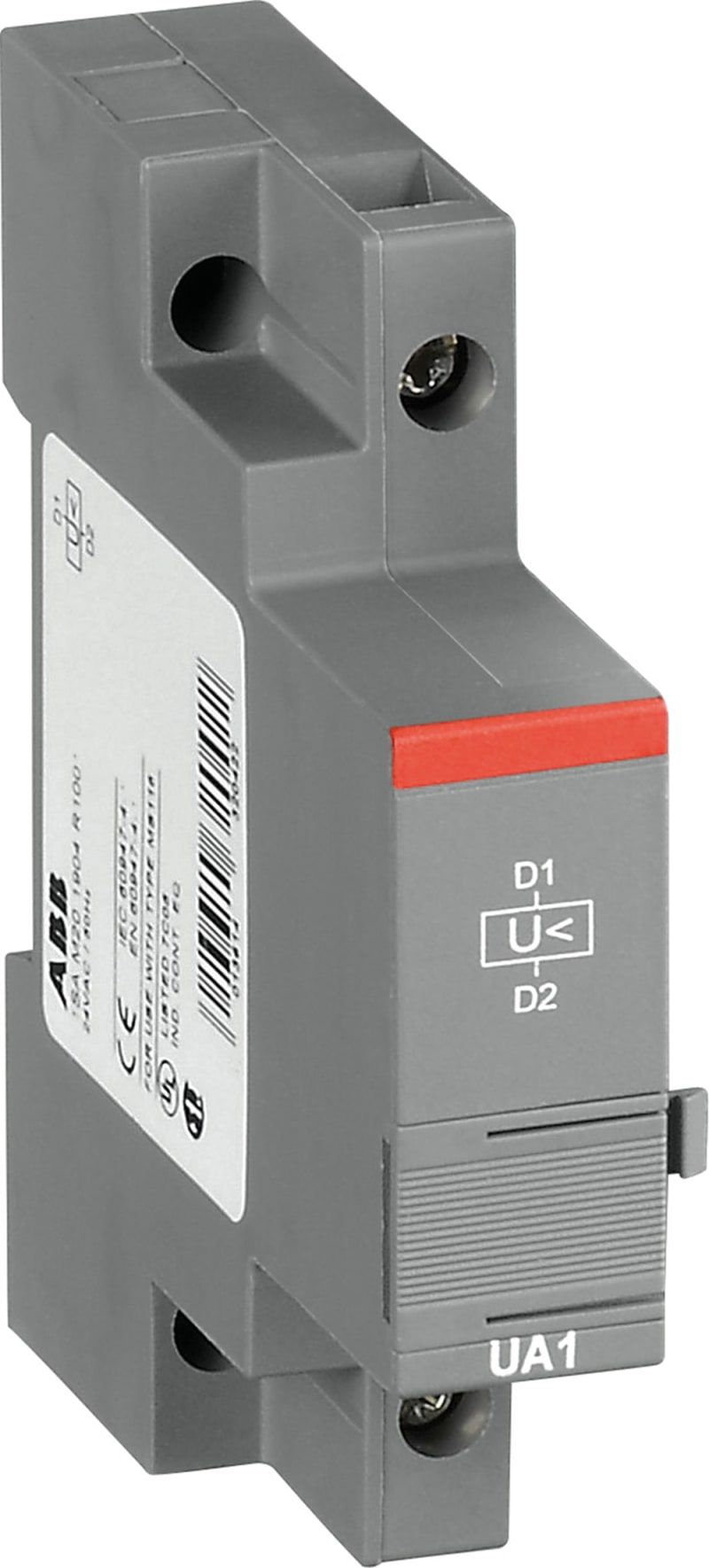

Undervoltagestrigger UA1-60
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB UA1-60 — Undervoltage release UA1 releases the manual motor starter or prevents it from being switched on when its voltage supply is interrupted. This can be used in emergency switching circuits or can prevent an automatic restart after voltage interruption. UA1 is attached laterally on the left side of MS116, MS132 or MS165 manual motor starters.
Technical Specifications
- Manufacturer part number (MPN)
- UA1-60
- EAN / GTIN
- 4013614320699
- Sales unit
- pcs
- Product Net Width
- 18 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 75.5 mm
- Rated Impulse Withstand Voltage (U imp )
- Auxiliary Circuit 6 kV
- Rated Insulation Voltage (U i )
- 690 V
- Power Loss
- 17 W
- Terminal Type
- Screw Terminals
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²; Flexible 1/2x 0.75 ... 2.5 mm²; Rigid 1/2x 1 ... 4 mm²
- Tightening Torque
- Auxiliary Circuit 0.8 ... 1.2 N·m
- Wire Stripping Length
- Auxiliary Circuit 10 mm
- Recommended Screw Driver
- Pozidriv 2
- Mounting Position
- 1 ... 6
- Standards
- CSA 22.2 No. 14; IEC/EN 60947-1; IEC/EN 60947-4-1; UL 508; UL 60947-1; UL 60947-4-1
- Remarks
- The mechanical and electrical durability of manual motor starters in combination with UA1/AA1 is reduced. Values are provided on request.
- Connecting Capacity Auxiliary Circuit UL/CSA
- Flexible 1/2x 16-12 AWG; Stranded 1/2x 16-12 AWG
- Tightening Torque UL/CSA
- Auxiliary Circuit 7 in·lb
- Ambient Air Temperature
- Operation -25 ... +60 °C; Storage -50 ... +80 °C
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 15g
- ABS Certificate
- 1SAA963001-0101
- BV Certificate
- 1SAA963002-0201
- cUL Certificate
- cUL_E137861
- Declaration of Conformity - CE
- 1SAD101100-3411
- Declaration of Conformity - UKCA
- 1SAD201100-3411
- DNV GL Certificate
- 1SAA963001-0304
- LR Certificate
- 1SAA963001-0502; 1SAA918001-0501
- RINA Certificate
- 1SAA963002-0802
- UL Certificate
- UL_E137861
- Object Classification Code
- Q
- ETIM 9
- EC001022 - Under voltage coil
- eClass
- V11.0 : 27370417
- UNSPSC
- 39121521
- IDEA Granular Category Code (IGCC)
- 4148 >> Under voltage coil
- E-Number (Norway)
- 4364287
- E-Number (Sweden)
- 3112025
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4013614320699
- SAP 1000524781
- Code 8639784
