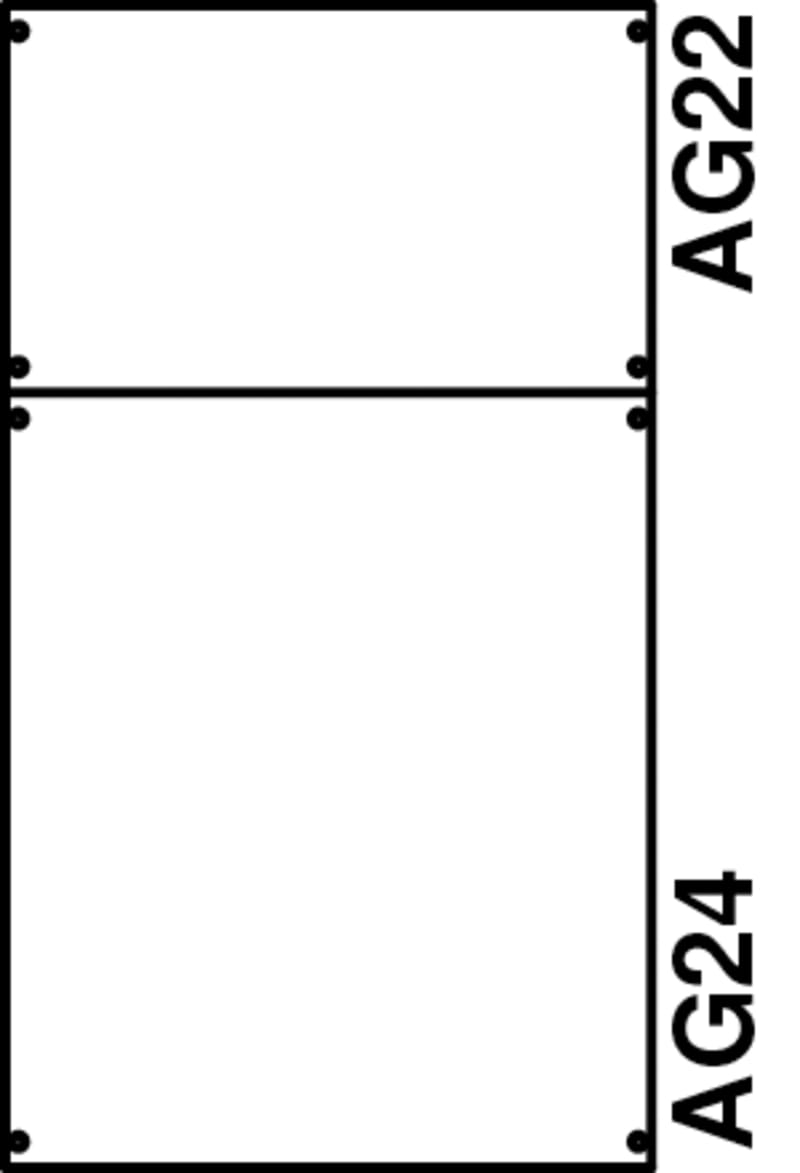

Blanking Module 2B2A
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX037633R9999 — Interior fitting system, Distribution panels, mounted on EDF-Profile, for touch guard, Grid unit 6 GU = 900 mm, panel width 2 = 500 mm, 144 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usable as of the cabinet depth of 120 mm, distribution panels or combinations must have the same grid units as the cabinets, in which they are installed. For floor standing and switch gear cabinets, two panels or combinations must be installed next to each other. The EDF profile rails are included in the scope of delivery.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX037633R9999
- EAN / GTIN
- 4011617376330
- Sales unit
- pcs
- Number of DIN Rails for Mounting
- 0
- Number of Modular Spacings per DIN Rail
- 0
- Number of Panel Heights
- 6
- Number of Rows
- 0
- Design
- EDF Distribution Panel
- Cover Plate Type
- Closed
- Enclosure Type
- Interior fitting system
- Enclosure Type of Height
- 2
- DIN Place Units
- 144
- Meter Boards
- 0
- Module Function
- touch guard
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Rated Current (I n )
- 400 A
- Number of Modules
- 144
- Product Net Width
- 500 mm
- Product Net Height
- 900 mm
- Product Net Depth / Length
- 120 mm
- Section Width
- 2
- Declaration of Conformity - CE
- 2CPC100019X0201
- ETIM 9
- EC000264 - Panel for distribution board
- eClass
- V11.0 : 27142411
- Object Classification Code
- U
- Width
- 500 mm
- Height
- 900 mm
- Depth
- 120 mm
- With mounting plate
- No
- Type of covering
- Closed
- With cover
- Yes
- With N-PE clamp
- No
- Termination point meter location
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011617376330
- SAP 1000006041
- Code 833516
Product Documentation
More from ABB Automasjon
ABB Automasjon
AF16-22-00-12 48-130V AC/DC
AF16-22-00-12 48-130V50/60HZ-DC
ABB Automasjon

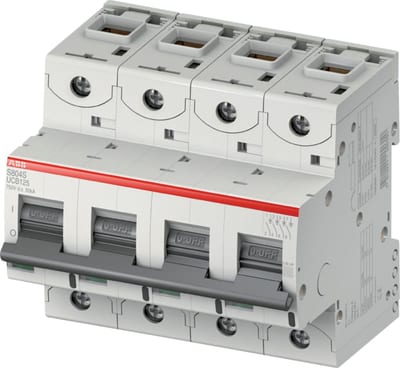

Circuit Breaker S804N-C63
2CCS894001R0634
ABB Automasjon

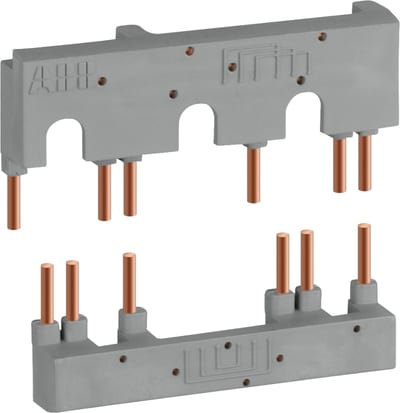

Rail f. Rev.st. AF16
BER16-4
ABB Automasjon

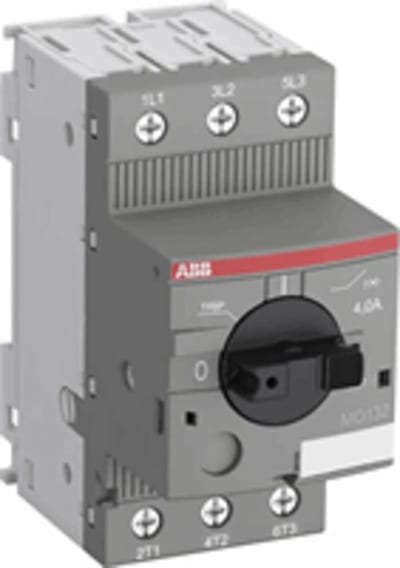

Motor protection circuit breaker-only k.sl. MO132-1.6
ABB Automasjon
Faseskillewall PB100 T4-T5 4P
1SDA054971R1
ABB Automasjon

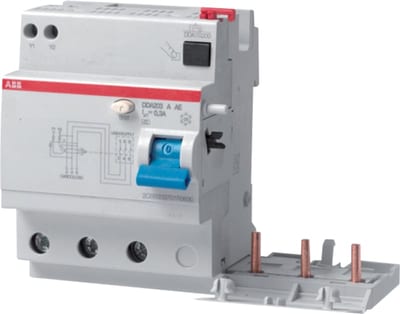

Residual Current Block DDA203A 63A30MA
2CSB203491R1630
ABB Automasjon

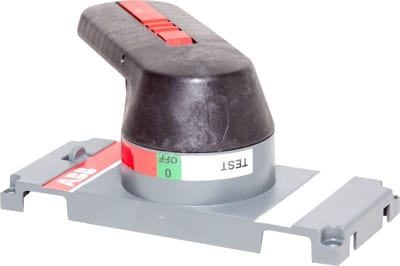

ABB Indication Test-OFF-ON/Test-O-I. Padlockable with three padlocks in OFF-position. Includes shaft and mechanism cover. OTV250EK
