Rail f. Rev.st. AF16
Pricing
Request a quote
We reply within 24 hours
Product Description

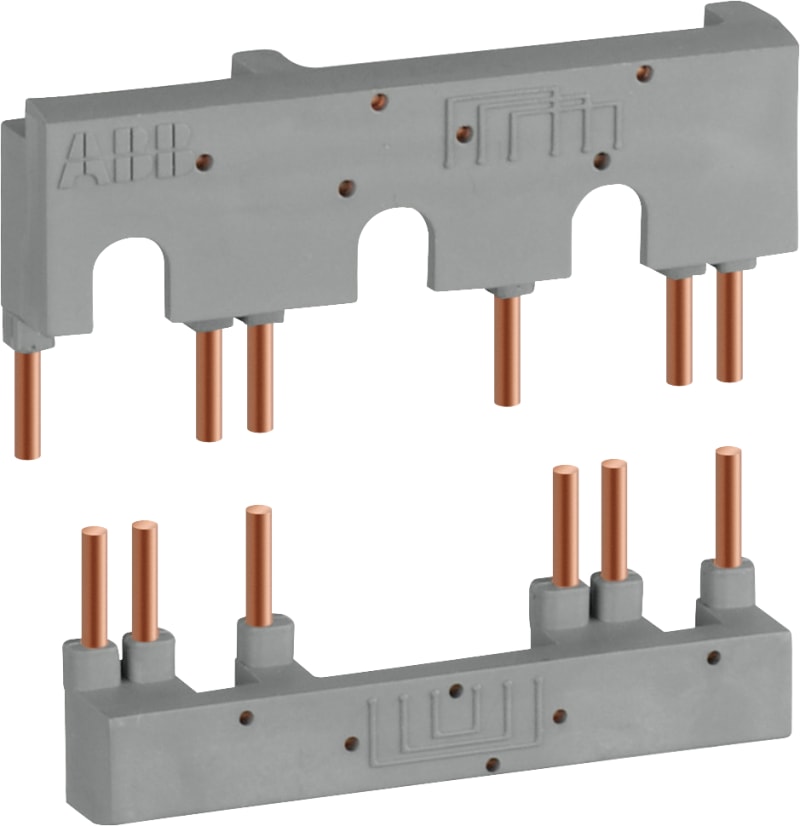

ABB BER16-4 — is a connection set for reversing contactors used to easily connect the main poles of two 3-pole AF09.AF16, AFC09.AFC16 or AFS09.AFS16 contactors mounted side by side.The BER connection sets are made up of:• 1 upstream and 1 downstream connections• Insulated, solid copper bars.
Technical Specifications
- Manufacturer part number (MPN)
- BER16-4
- EAN / GTIN
- 3471523130777
- Sales unit
- pcs
- Configuration Only
- No
- Country of Origin
- Finland
- Criticality
- No
- Lead Time
- 35 day
- Note
- No
- Product Availability Class
- Standard delivery time
- Product Sales Status
- Active
- Storage Location
- 4001
- Product Net Width
- 72 mm
- Product Net Depth / Length
- 14.55 mm
- Product Net Height
- 33 mm
- Standards
- EN 60947-1, EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
- Rated Operational Voltage
- Main Circuit 690 V AC
- Rated Frequency (f)
- Main Circuit 50 / 60 Hz
- Terminal Type
- Screw Terminals
- Suitable For
- AF09; AF09Z; AF12; AF12Z; AF16; AF16Z; AFC09; AFC12; AFC16; AFS09; AFS09Z; AFS12; AFS12Z; AFS16; AFS16Z; AF09B; AF09ZB; AF12B; AF12ZB; AF16B; AF16ZB
- Declaration of Conformity - CE
- 1SBD250021U1000
- Declaration of Conformity - UKCA
- 1SBD250043U1000
- RINA Certificate
- RINA_ELE084013XG
- UL Certificate
- UL-US-L312527-151-12119002-9; UL-CA-L312527-451-12119002-8
- UL Listing Card
- UL_E312527
- ETIM 7
- EC002498 - Accessories for low-voltage switch technology
- ETIM 8
- EC002498 - Accessories/spare parts for low-voltage switch technology
- eClass
- V11.0 : 27371392
- UNSPSC
- 39122221
- IDEA Granular Category Code (IGCC)
- 5219 >> Switch part or accessory
- E-Number (Finland)
- 3706558
- E-Number (Sweden)
- 3211441
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3471523130777
- SAP 1000225483
- Code 8125350
