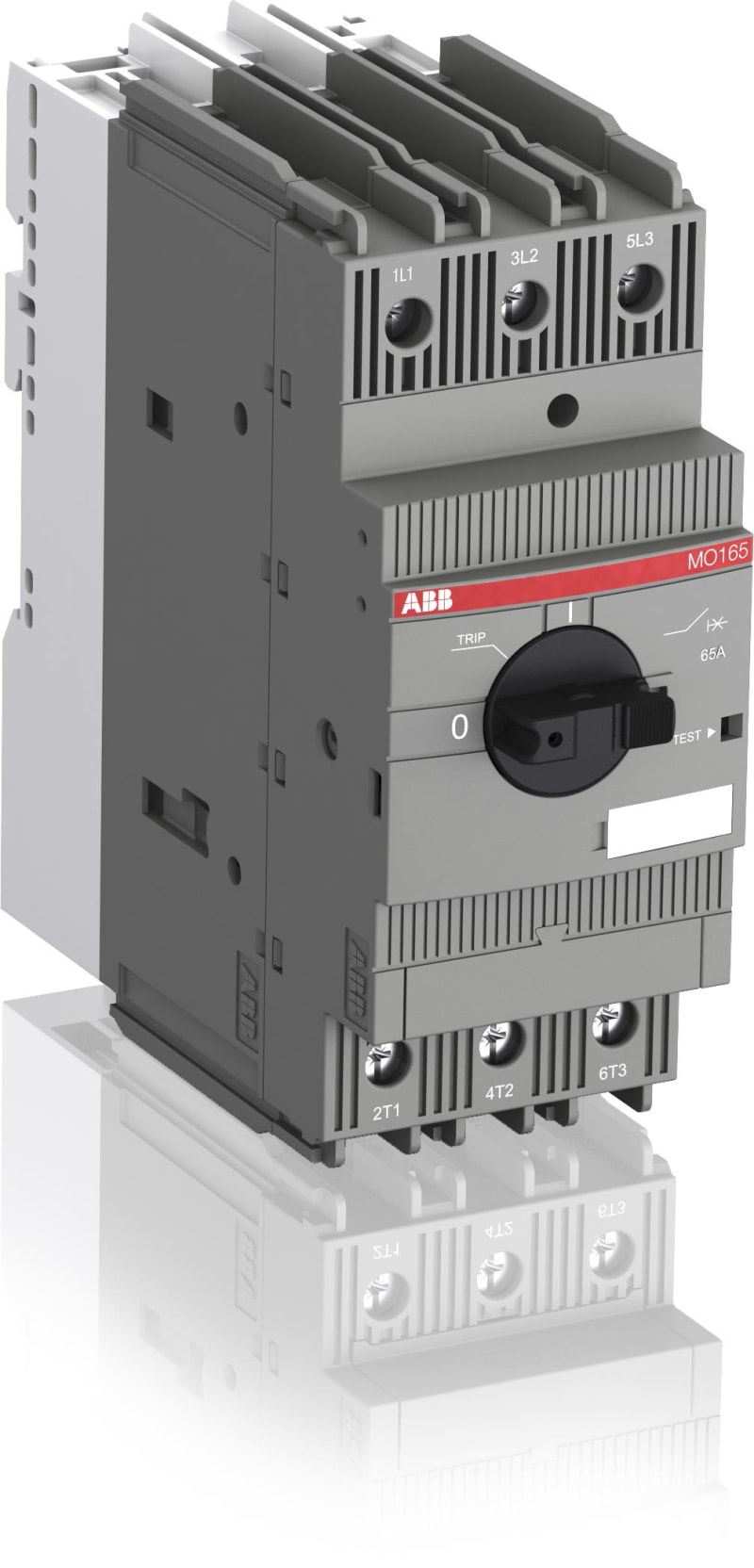

Motor protection circuit breaker-only k.sl MO165-65

ABB MO165-65 — The MO165 manual motor starter magnetic only is a compact and powerful range for motor protection up to 45 kW (400 V) in width of 55 mm. The devices are used to manually switch on and off loads/motors and to protect them reliably and without the need for a fuse from short-circuits. The manual motor starter offers a rated service short-circuit breaking capacity up to 100 kA at 400 V AC. A combination together with overload relays or motor controllers allows the protection of motors. Further features are the built-in disconnect function, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starters magnetic only are suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars and power in-feed blocks are available as accessory.

Manufacturer part number (MPN)

MO165-65 EAN / GTIN: 4013614486180 Sales unit: pcs Configuration Only: No Country of Origin: Finland Criticality: No Lead Time: 35 day Note: No Product Availability Class: Standard delivery time Product Sales Status: Active Storage Location: 4001 Product Net Width: 55 mm Product Net Height: 142.65 mm Product Net Depth / Length: 122.1 mm Rated Service Short-Circuit Breaking Capacity (I cs ): (230 V AC) 30 kA; (250 V DC) 3 Poles in Series 100 kA; (400 V AC) 30 kA; (440 V AC) 30 kA; (500 V AC) 20 kA; (690 V AC) 6 kA Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (230 V AC) 50 kA; (250 V DC) 100 kA; (400 V AC) 50 kA; (440 V AC) 45 kA; (500 V AC) 20 kA; (690 V AC) 8 kA Rated Instantaneous Short-Circuit Current Setting (I i ): 975 A Setting Range: None Rated Operational Power AC-3 (P e ): (400 V) Three Phase 30 kW Rated Operational Power AC-3e (P e ): (400 V) Three Phase 30 kW Rated Operational Voltage: Main Circuit 690 V AC; Main Circuit 250 V DC Rated Operational Current (I e ): 65 A Rated Operational Current AC-3 (I e ): 65 A Rated Operational Current AC-3e (I e ): 65 A Rated Operational Current DC-5 (I e ): 65 A Rated Frequency (f): Main Circuit 50 Hz; Main Circuit 60 Hz Operating Frequency (f sw ): 0 ... 415 Hz Rated Impulse Withstand Voltage (U imp ): Main Circuit 8 kV Rated Insulation Voltage (U i ): 1000 V Power Loss: 8.03 W Number of Poles: 3P Conventional Free-air Thermal Current (I th ): Main Circuit 65 A Degree of Protection: Housing IP20; Main Circuit Terminals IP10 Pollution Degree: 3 Electrical Durability: 25000 cycle Mechanical Durability: Nr. Operations 50000 cycle Terminal Type: Screw Terminals Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 1 ... 35 mm²; Flexible with Insulated Ferrule 1/2x 1 ... 35 mm²; Flexible 1/2x 1 ... 35 mm²; Rigid 1/2x 1 ... 4 mm²; Solid 1/2x 1 ... 4 mm²; Stranded 1/2x 1 ... 50 mm² Tightening Torque: Main Circuit 4 N·m Wire Stripping Length: Main Circuit 16 mm Recommended Screw Driver: Pozidriv 2 Mounting Position: 1 ... 6 Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 minimum Mounting Distance: Electrical Conductive Board, Horizontal - Up to 1000 V 1.5 mm; Electrical Conductive Board, Horizontal - Up to 400 V 0 mm; Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm; Electrical Conductive Board, Vertical 75 mm; Other Device Same Type, Horizontal 0 mm; Other Device Same Type, Vertical 150 mm Contact Position Indication: ON / OFF / TRIP Standards: CSA 22.2 No. 14; IEC/EN 60947-1; IEC/EN 60947-2; IEC/EN 60947-4-1; UL 60947-4-1 Remarks: For overload protection of the motors, an appropriate thermal or electronic overload relays must be used Short-Circuit Current Rating (SCCR): Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 65 kA; Manual Self-Protected Combination Controllers (Type E), (600Y / 347 V AC) 30 kA; Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kA; Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 30 kA; Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kA; Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 30 kA; Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kA; Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 30 kA Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC Horsepower Rating UL/CSA: (200 V AC) Three Phase 20 Hp; (208 V AC) Three Phase 20 Hp; (220 ... 240 V AC) Three Phase 20 Hp; (440 ... 480 V AC) Three Phase 50 Hp; (550 ... 600 V AC) Three Phase 60 Hp Full Load Amps Motor Use: (200 V AC) Three Phase 62.1 A; (208 V AC) Three Phase 59.4 A; (220 ... 240 V AC) Three Phase 54 A; (440 ... 480 V AC) Three Phase 65 A; (550 ... 600 V AC) Three Phase 62 A Locked Rotor Amps: (200 V AC) Three Phase 334 A; (208 V AC) Three Phase 321 A; (220 ... 240 V AC) Three Phase 290 A; (440 ... 480 V AC) Three Phase 363 A; (550 ... 600 V AC) Three Phase 348 A General Use Rating UL/CSA: (600 V AC) 65 A Connecting Capacity Main Circuit UL/CSA: Flexible 1/2x 16-0 AWG; Stranded 1/2x 16-0 AWG Tightening Torque UL/CSA: Main Circuit 35 in·lb Ambient Air Temperature: Operation -25 ... +60 °C; Operation Compensated -25 ... +60 °C; Storage -50 ... +80 °C Ambient Air Temperature Compensation: No Maximum Operating Altitude Permissible: 2000 m Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 25g Resistance to Vibrations: Mounted on Mounting Plate: 5g 3 ... 150 Hz; Mounted on DIN-Rail: 4g 3 ... 150 Hz ABB EcoSolutions: Yes ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available EcoSolutions Profile: 1SFC100125C0353 End Of Life Disassembling Instructions: 1SAC200284H0001 Environmental Product Declaration - EPD: 1SAC200253H0001 Improved Energy Efficiency for Customers: Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 93.1 % ABS Certificate: 1SAA963002-0101 BV Certificate: 1SAA963002-0201 CB Certificate: 1SAA918002-2002 CCC Certificate: 2024010307654703 CQC Certificate: CQC2015010307760141 Declaration of Conformity - CCC: 2020980307003042 Declaration of Conformity - CE: 1SAD101100-3409 Declaration of Conformity - UKCA: 1SAD201100-3409 DNV GL Certificate: 1SAA963002-0301 EAC Certificate: 1SAA963000-2701 IECEx Certificate: 1SAA918000-4001 LR Certificate: 1SAA918001-0501 RMRS Certificate: 1SAA918000-0704 UL Certificate: E137861-20150206; E345003-20150206 Object Classification Code: F ETIM 9: EC000074 - Motor protection circuit-breaker eClass: V11.0 : 27370401 UNSPSC: 39121521 IDEA Granular Category Code (IGCC): 4731 >> Manual Starters E-Number (Finland): 3707297 E-Number (Norway): 4364146 E-Number (Sweden): 3110144

HS Code

8536.20

• EAN 4013614486180
• SAP 1200048555
• Code 81876726
