Mechanical Interlock
Pricing
Request a quote
We reply within 24 hours
Product Description

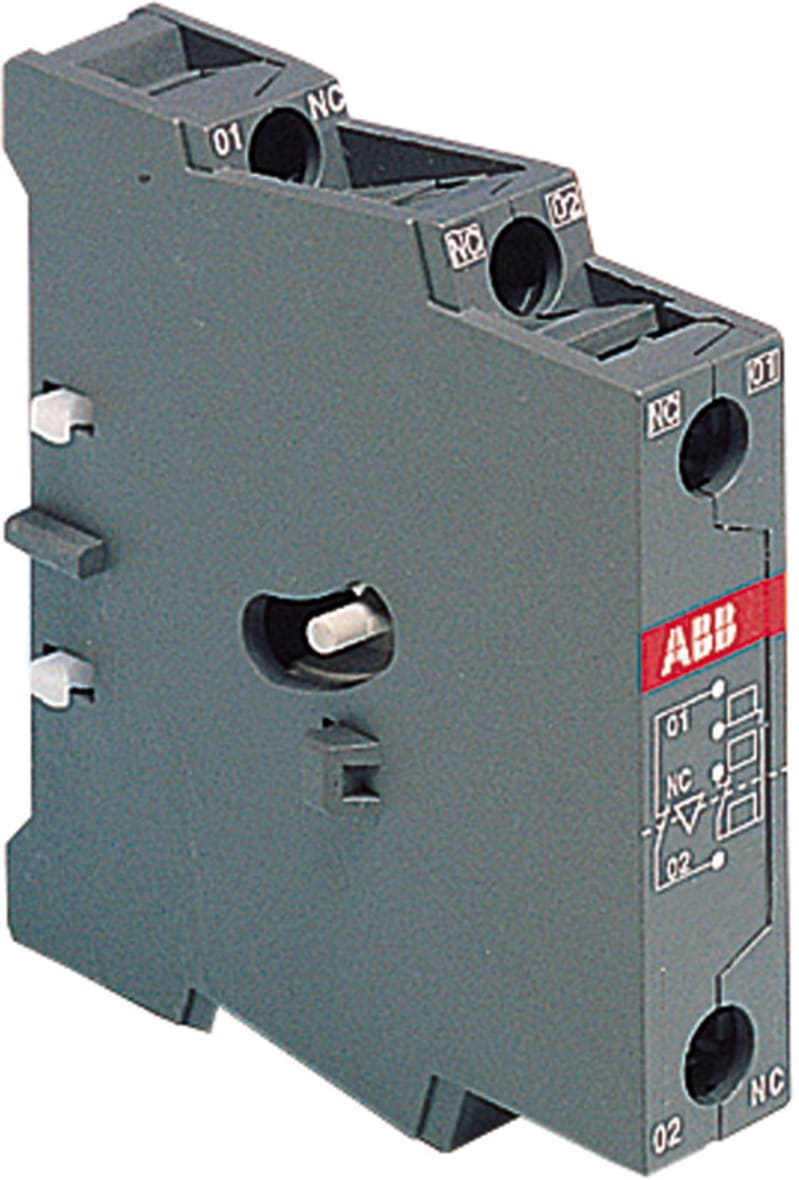

ABB VM5-1 — is a mechanical interlock unit used for the mechanical interlocking of two contactors of the A contactor serie, in the case, e.g. of reversing contactors, changeover contactors or star-delta starters. Electrical interlocking is generally provided through additionnal N.C. auxiliary contacts fitted on contactors and wired with the respective contactors coil terminals.
Technical Specifications
- Manufacturer part number (MPN)
- VM5-1
- EAN / GTIN
- 3471522121363
- Sales unit
- pcs
- Country of Origin
- India
- Product Sales Status
- Active
- Product Net Width
- 15 mm
- Product Net Depth / Length
- 71 mm
- Product Net Height
- 70 mm
- Standards
- IEC/EN 60947-4-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14
- Suitable For
- A9; A12; A16; A26; A30; A40; AL9; AL9Z; AL12; AL12Z; AL16; AL16Z; AL26; AL30; AL40; TAL9; TAL12; TAL16; TAL26; TAL30; TAL40; AX06; AX09; AX12; AX18; AX25; AX32; AX40
- Declaration of Conformity - CE
- 1SBD250835U1000
- Declaration of Conformity - UKCA
- 1SBD250836U1000
- RINA Certificate
- RINA_ELE172319XG001
- UL Certificate
- UL_20160418-E252354_5_5
- ETIM 7
- EC001044 - Mechanic interlock for switch
- eClass
- V11.0 : 27371303
- UNSPSC
- 39122221
- IDEA Granular Category Code (IGCC)
- 5219 >> Switch part or accessory
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3471522121363
- SAP 1000086432
- Code 8578486
Product Documentation
More from ABB Automasjon
ABB Automasjon
LOAD-Break Switch 4P T5D 630
1SDA054602R0001
ABB Automasjon
AF09Z-40-00-22 48-130V AC/DC
AF09Z-40-00-22 48-130V50/60HZ-DC
ABB Automasjon
Circuit Breaker S803N-C63
2CCS893001R0634
ABB Automasjon
Partition ZX70
ABB Automasjon
ABB 4-Pole, front operated, base mounted switch-disconnector with black IP65 handle and shaft, terminal bolt kit included OT250E04P
ABB Automasjon
Circuit Breaker S803S-C63
2CCS863001R0634
ABB Automasjon
Circuit Breaker S203-B 32
2CDS253001R0325
ABB Automasjon
LAS Complete SA3 (sa 3)
SA 3
Catalogue entry last verified: 2026-09-20. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy VM5-1?
- VM5-1 can be ordered from cballast.com as a ABB Automasjon catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB Automasjon product?
- The manufacturer part number is VM5-1.
- What is the HS code for VM5-1?
- The customs tariff (HS) code for VM5-1 is 8538.90.
- Who manufactures VM5-1?
- VM5-1 is a ABB Automasjon product in the SC001044 range.
- Is a datasheet available for VM5-1?
- Yes — the VM5-1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for VM5-1?
- The minimum order quantity is 1.
- Is VM5-1 available?
- Yes — VM5-1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
