ABB 4-Pole, front operated, base mounted switch-disconnector with black IP65 handle and shaft, terminal bolt kit included OT250E04P

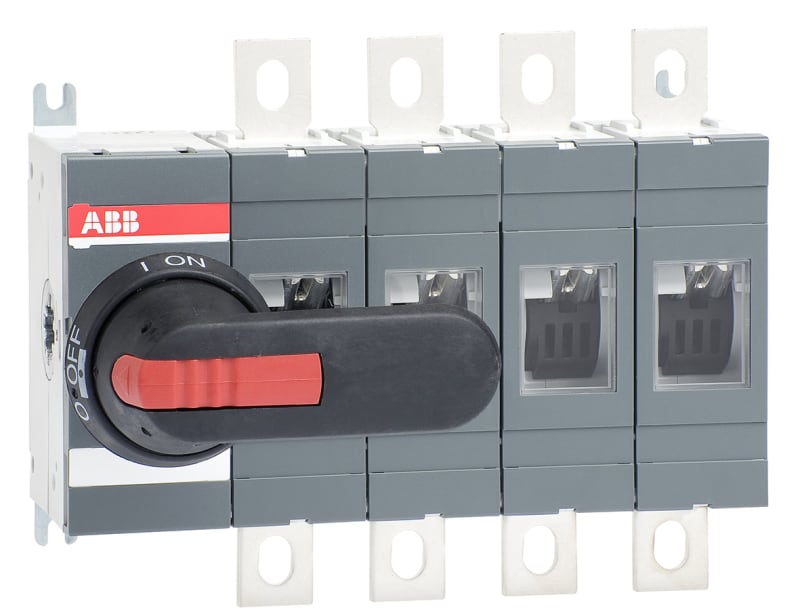

ABB OT250E04P — 4-pole, front operated, base mounted switch-disconnector with black IP65 handle and shaft, terminal bolt kit included.

Manufacturer part number (MPN)

OT250E04P

EAN / GTIN

6417019225982

HS code

8536.90

Sales unit

pcs

Country of Origin

India

Product Sales Status

Active

End Of Life Disassembling Instructions

1SCC301117M0201

Environmental Information

1SCC301265D0201

Environmental Product Declaration - EPD

1SCC301282D0201

Degree of Protection

Front IP00

Pollution Degree

3

Product Net Width

180.5 mm

Product Net Height

150 mm

Product Net Depth / Length

82.5 mm

Color

Grey

Conventional Free-air Thermal Current (I th )

Θ = 40 °C 250 A

Conventional Thermal Current (I the )

Fully Enclosed 250 A

Distance Between Phases

Standard

Fourth Pole Position

Right Side

Fourth Pole Type

Switched - Simultaneous Function

Handle Color

Black

Mechanical Durability

20000

Mounting Type

Base mounting

Number of Poles

4P

Operating Mode

Front

Position of Line Terminals

Top In - Bottom Out; Bottom In - Top Out

Power Loss

at Rated Operating Conditions per Pole 6.5 W

Rated Conditional Short-Circuit Current (I nc )

(315 A fuse, 500 V) 100 kA; (355 A fuse, 690 V) 80 kA; (250 A fuse, 690 V) 100 kA

Rated Impulse Withstand Voltage (U imp )

12 kV

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 1000 V

Rated Operational Current AC-21A (I e )

(380 ... 415 V) 250 A; (500 V) 250 A; (690 V) 250 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 250 A; (500 V) 250 A; (690 V) 250 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 250 A; (500 V) 250 A; (690 V) 250 A

Rated Operational Power AC-23A (P e )

(220 ... 240 V) 75 kW; (400 ... 415 V) 145 kW; (500 V) 170 kW; (690 V) 250 kW

Rated Operational Voltage

Main Circuit 1000 V

Rated Short-Circuit Making Capacity (I cm )

(690 V) 30 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 8 kA

Special Functions

No

Standards

IEC 60947-3

Switches Operating Mechanism

Mechanism at the End of the Switch; 04 (Left Side)

Terminal Type

Lug terminals

Terminal Width

20 mm

Tightening Torque

acc. IEC 60947-1 15 … 22 N·m

A2L Certificate – IEC

1SCC301337D0201

ATEX Certificate

No certification needed

BV Certificate

1SCC301103D0201

Declaration of Conformity - CE

1SCC301131D2705

DNV GL Certificate

1SCC301174D0204

GL Certificate

1SCC301139D0201

LR Certificate

1SCC301144D0201

UL Certificate

No certification needed

VDE Certificate

No certification needed

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122233

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3661354

E-Number (Norway)

4337857

E-Number (Sweden)

3171163

HS Code

8536.90
