Residual Current Circuit Breaker F204 S-63/0,3
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB Automasjon 2CSF204201R3630 F204, 4 pole, Type A S (selective), 63A, 300mA.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSF204201R3630
- EAN / GTIN
- 8012542784807
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 69 mm
- Rated current
- 63 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 500 V
- Number of poles
- 4
- Rated fault current
- 0.3 A
- Leakage current type
- A
- Selective protection
- Yes
- Short-circuit breaking capacity (Icw)
- 1 kA
- Surge current capacity
- 5 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- Short-time delayed tripping
- No
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 13.2 W
- Frequency
- 50/60 Hz
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 25 mm²
- Connectable conductor cross section multi-wired
- 0–25 mm²
- With interlocking device
- Yes
- Ambient temperature during operating
- -25–55 °C
- Additional equipment possible
- Yes
- Device width
- 70 mm
- Device height
- 85 mm
- Device depth
- 69 mm
- Rated impulse withstand voltage Uimp
- 4 kV
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542784807
- SAP 1000024029
- Code 8212775
Product Documentation
More from ABB Automasjon
ABB Automasjon
ABB TF65-47 Thermal Overload Relay 36–47 A, Class 10, 3-Pole
ABB Automasjon
Earth-fault RCD DS204 M A-B16/0,03
2CSR274101R1165
ABB Automasjon
ABB PSR-FAN 3-45A Cooling Fan for PSR Soft starters
ABB Automasjon
ABB OXP6X130 SHAFT for pistol handle
ABB Automasjon
Circuit Breaker S202M-C 40
S202M-C40
ABB Automasjon
Circuit Breaker S202M-C 50
S202M-C50
ABB Automasjon

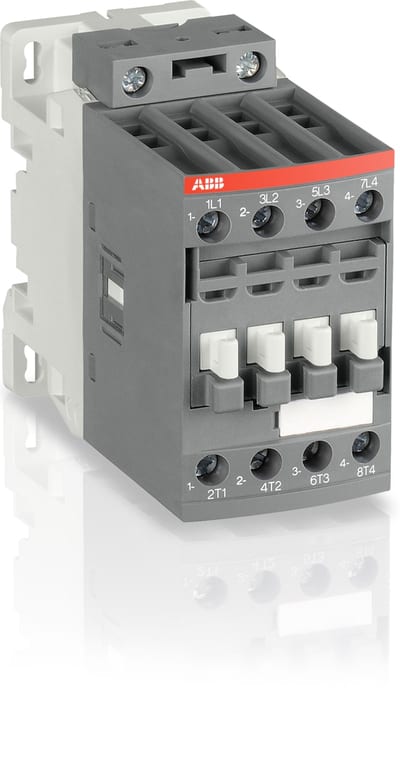

AF26-22-00-12, 48-130VAC/DC (AF26-22-00-12 48-130V50/60HZ-DC)
ABB Automasjon

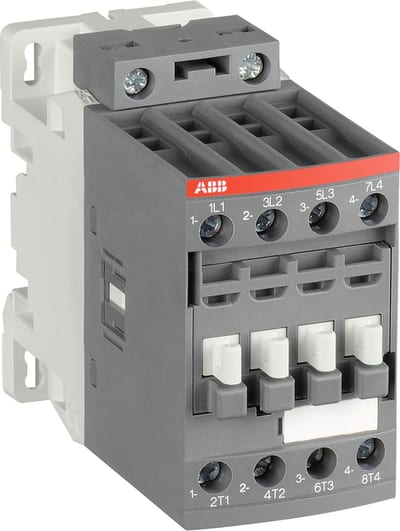

AF38Z-40-00-20, 12-20VDC (AF38Z-40-00-20 12-20VDC)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2CSF204201R3630?
- 2CSF204201R3630 can be ordered from cballast.com as a ABB Automasjon catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB Automasjon product?
- The manufacturer part number is 2CSF204201R3630.
- What is the HS code for 2CSF204201R3630?
- The customs tariff (HS) code for 2CSF204201R3630 is 8536.90.
- Who manufactures 2CSF204201R3630?
- 2CSF204201R3630 is a ABB Automasjon product in the Electrical Components range.
- Is a datasheet available for 2CSF204201R3630?
- Yes — the 2CSF204201R3630 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2CSF204201R3630?
- The minimum order quantity is 1.
- Is 2CSF204201R3630 available?
- Yes — 2CSF204201R3630 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
