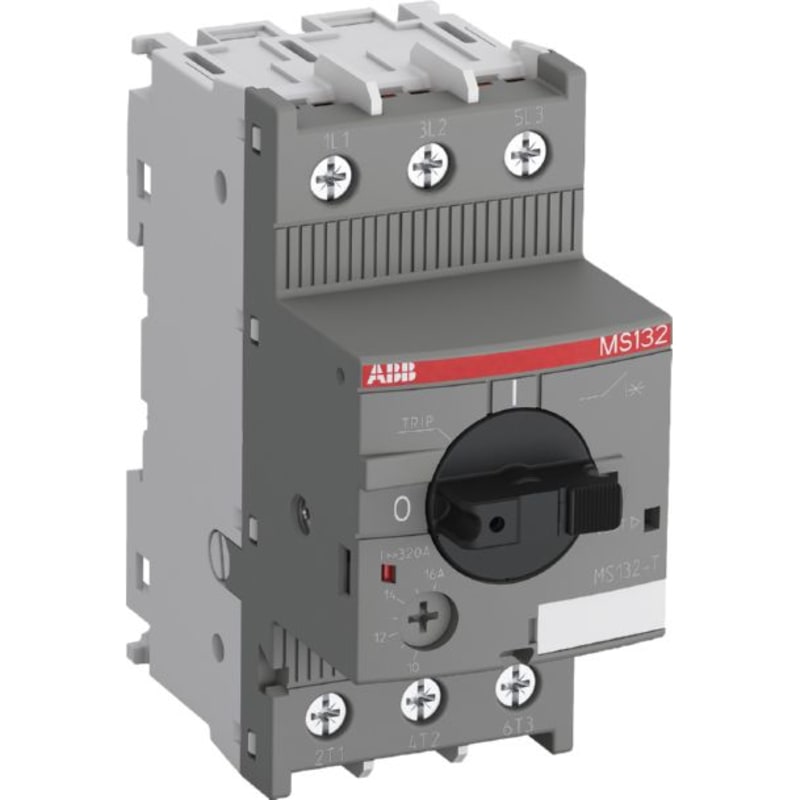

MS132-16T for transformer protection

ABB 1SAM340000r1011 — The circuit breaker for transformer protection MS132-16T is a compact 45 mm width device designed to protect control transformers on the primary side. This device has a rated operational current of Ie = 16 A. It allows fuse-less protection against overload and short-circuit. The short-circuit current setting is fixed to 20 times the rated operational current to handle the high inrush current generated by transformers. The device allows manually connect and disconnect the transformer from the mains thanks of its built-in disconnection function. The circuit breaker for transformer protection offers a rated service short-circuit breaking capacity of Ics = 100 kA at 400 VAC and a trip class 10. Further features are temperature compensation, trip-free mechanism, rotary handle with a clear switch position indication and short circuit trip indicator. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, power in-feed blocks and terminal spacers are available as accessory.

Manufacturer part number (MPN)

1SAM340000r1011 EAN / GTIN: 4013614485022 HS code: 8536.90 Sales unit: pcs Configuration Only: No Country of Origin: Germany Criticality: No Lead Time: 27 day Note: No Product Availability Class: Standard delivery time Product Sales Status: Active Storage Location: 4001 Product Net Width: 45 mm Product Net Height: 97.8 mm Product Net Depth / Length: 86.05 mm Rated Service Short-Circuit Breaking Capacity (I cs ): (230 V AC) 100 kA; (400 V AC) 100 kA; (440 V AC) 30 kA Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (400 V AC) 100 kA Rated Instantaneous Short-Circuit Current Setting (I i ): 320 A Setting Range: 10 ... 16 A Rated Operational Voltage: Main Circuit 690 V AC Rated Operational Current (I e ): 16 A Rated Frequency (f): Main Circuit 50 Hz; Main Circuit 60 Hz Operating Frequency (f sw ): 0 ... 400 Hz Rated Impulse Withstand Voltage (U imp ): Main Circuit 6 kV Rated Insulation Voltage (U i ): 690 V Power Loss: at Rated Operating Conditions per Pole 0.9 ... 2.3 W Number of Poles: 3P Conventional Free-air Thermal Current (I th ): Main Circuit 16 A Degree of Protection: Housing IP20; Main Circuit Terminals IP10 Pollution Degree: 3 Electrical Durability: 50000 cycle Mechanical Durability: Nr. Operations 100000 cycle Terminal Type: Screw Terminals Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 0.75 ... 6 mm²; Flexible with Insulated Ferrule 1/2x 0.75 ... 6 mm²; Flexible 1/2x 1 ... 2.5 mm²; Flexible 1/2x 2.5 ... 6 mm²; Rigid 1/2x 1 ... 2.5 mm²; Rigid 1/2x 2.5 ... 6 mm² Tightening Torque: Main Circuit 2 N·m Wire Stripping Length: Main Circuit 10 mm Recommended Screw Driver: M4; Pozidriv 2 Mounting Position: 1 ... 6 Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 minimum Mounting Distance: Electrical Conductive Board, Vertical 75 mm; Other Device Same Type, Horizontal 9 mm; Other Device Same Type, Vertical 150 mm Contact Position Indication: ON / OFF / TRIP Standards: IEC/EN 60947-1; IEC/EN 60947-2; IEC/EN 60947-4-1; IEC 60335-2-40 A2L Short-Circuit Current Rating (SCCR): Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 30 kA; Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 18 kA Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC Horsepower Rating UL/CSA: (120 V AC) Single Phase 1 Hp; (220 ... 240 V AC) Single Phase 2 Hp Full Load Amps Motor Use: (120 V AC) Single Phase 16 A; (220 ... 240 V AC) Single Phase 12 A Locked Rotor Amps: (120 V AC) Single Phase 96 A; (220 ... 240 V AC) Single Phase 96 A Connecting Capacity Main Circuit UL/CSA: Flexible 1/2x 16-8 AWG; Stranded 1/2x 16-8 AWG Tightening Torque UL/CSA: Main Circuit 16 in·lb Ambient Air Temperature: Around the Enclosure 0 ... +40 °C; Operation -25 ... +70 °C; Operation Compensated -25 ... +60 °C; Storage -50 ... +80 °C Ambient Air Temperature Compensation: Yes Maximum Operating Altitude Permissible: 2000 m Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 25g Resistance to Vibrations: 5g 3 ... 150 Hz ABB EcoSolutions: Yes ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available EcoSolutions Profile: 1SFC100125C0353 End Of Life Disassembling Instructions: 1SAC200332H0001 Environmental Product Declaration - EPD: 1SAC200360H0001; 1SAC200385H0001 Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 80 % A2L Certificate – IEC: 1SAA963000-4601 CB Certificate: 1SAA963002-2002; 1SAA963007-2002 CCC Certificate: 2024010307654702; 2024010307658958 CQC Certificate: CQC2010010307387700; CQC2019010307243864 Declaration of Conformity - CCC: 2020980307003526; 2020980307003041 Declaration of Conformity - CE: 1SAD101100-3404 Declaration of Conformity - UKCA: 1SAD201100-3404 RMRS Certificate: 1SAA918000-0704 UL Certificate: E137861-20090225 Object Classification Code: F ETIM 9: EC000228 - Power circuit-breaker for transformer/generator/installation protection eClass: V11.0 : 27370409 UNSPSC: 39121601 IDEA Granular Category Code (IGCC): 4864 >> Enclosed 3 Pole Circuit Breakers E-Number (Finland): 3707273 E-Number (Norway): 4364110

HS Code

8536.90

• EAN 4013614485022
• SAP 1200092819
• Code 81959817
