Busbar PS1-3-0-65
Pricing
Request a quote
We reply within 24 hours
Product Description

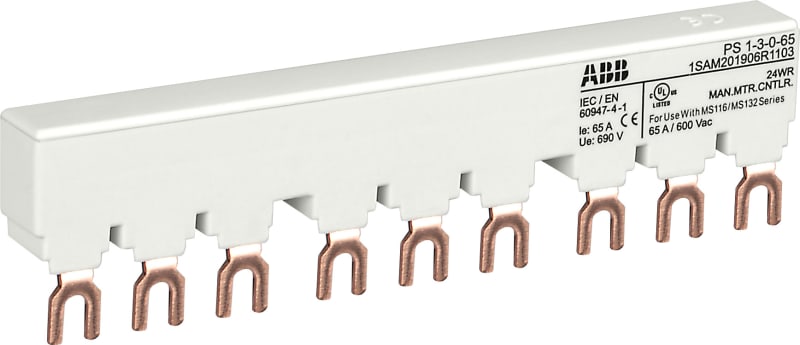

ABB PS1-3-0-65 — 3-phase busbars ensure a quick and safe connection of 3 MS132 or MS116 manual motor starters without lateral auxiliary contacts and are therefore a cost effective solution. The rated current is 65 A.
Technical Specifications
- Manufacturer part number (MPN)
- PS1-3-0-65
- EAN / GTIN
- 4013614400698
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Configuration Only
- No
- Country of Origin
- Germany
- Criticality
- No
- Lead Time
- 38 day
- Note
- No
- Product Availability Class
- Standard delivery time
- Product Sales Status
- Active
- Storage Location
- 4001
- Product Net Width
- 131.5 mm
- Product Net Height
- 32.3 mm
- Product Net Depth / Length
- 13 mm
- Rated Operational Voltage
- 690 V AC; 250 V DC
- Rated Operational Current (I e )
- 65 A
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Number of Poles
- 9P
- Degree of Protection
- IP20
- Pollution Degree
- 3
- Standards
- IEC/EN 60947-1; IEC/EN 60947-4-1; UL 60947-1; UL 60947-4-1
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Ambient Air Temperature
- Operation -25 ... +70 °C; Storage -50 ... +80 °C
- Declaration of Conformity - CE
- 1SAD101100-3411
- Declaration of Conformity - UKCA
- 1SAD201100-3411
- UL Certificate
- E121190-20000619
- Object Classification Code
- W
- ETIM 9
- EC000215 - Phase busbar
- eClass
- V11.0 : 27371306
- UNSPSC
- 39121117
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase buss bar
- E-Number (Finland)
- 3705949
- E-Number (Norway)
- 4364001
- E-Number (Sweden)
- 3111676
- EAN
- 4013614488078
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4013614400698
- SAP 1000225427
- Code 8946004
Product Documentation
More from ABB Automasjon
ABB Automasjon
ABB Cover, Design of the cover with slot, covers out of Plastic, 90 degree press and turn closure, RAL 7035, packaging unit 1 piece 2CPX062802R9999
ABB Automasjon
ABB NHP 139214R0001 FS 630A/800 Busbar Assembly Plates
ABB Automasjon
Busbar PS1-2-2-65
ABB Automasjon

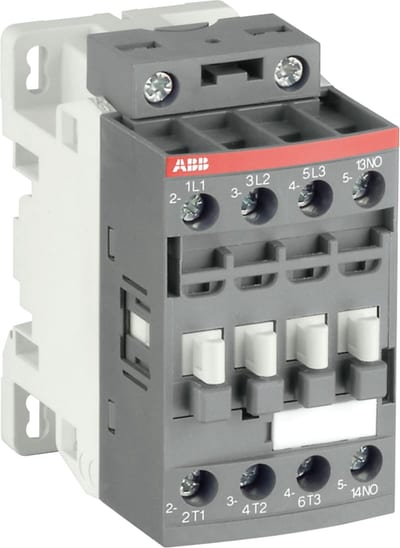

100-250V AC/DC AF12-30-10-13
ABB Automasjon

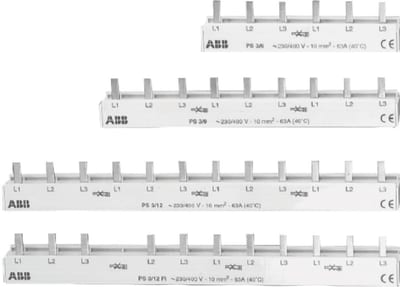

ABB 2CDL230001R1648 PS 3/48/16H Busbar
ABB Automasjon

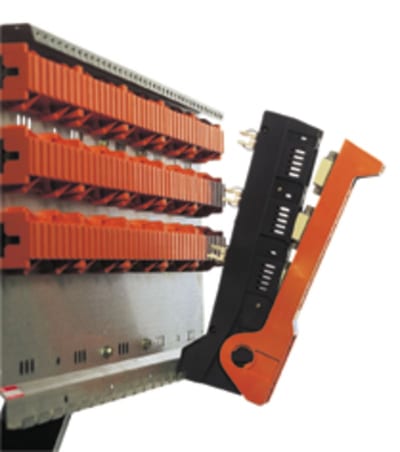

ABB FS 400A/250 Busbar Assembly Plates NHP 139201R0001
ABB Automasjon

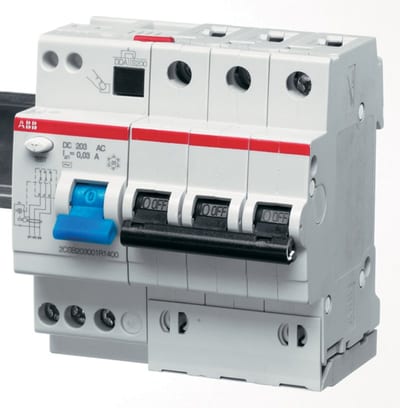

ABB the RCBOs DS200 series has the function to protect against overload and short-circuit currents 2CSR273191R1104
ABB Automasjon

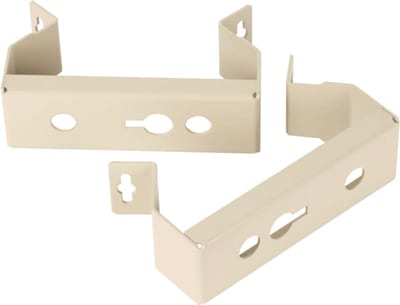

ABB SLKU pole mount Galvanized NHP 150193R0016
