Busbar PS1-2-2-65
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB PS1-2-2-65 — 3-phase busbars ensure a quick and safe connection of 2 MS132 or MS116 manual motor starters with 2 lateral auxiliary contacts and are therefore a cost effective solution. The rated current is 65 A.
Technical Specifications
- Manufacturer part number (MPN)
- PS1-2-2-65
- EAN / GTIN
- 4013614400766
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Product Net Width
- 104.5 mm
- Product Net Height
- 32.3 mm
- Product Net Depth / Length
- 13 mm
- Rated Operational Voltage
- 690 V AC; 250 V DC
- Rated Operational Current (I e )
- 65 A
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Degree of Protection
- IP20
- Pollution Degree
- 3
- Standards
- IEC/EN 60947-1; IEC/EN 60947-4-1; UL 60947-1; UL 60947-4-1
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Ambient Air Temperature
- Operation -25 ... +70 °C; Storage -50 ... +80 °C
- Declaration of Conformity - CE
- 1SAD101100-3411
- Declaration of Conformity - UKCA
- 1SAD201100-3411
- UL Certificate
- E121190-20000619
- Object Classification Code
- W
- ETIM 9
- EC000215 - Phase busbar
- eClass
- V11.0 : 27371306
- UNSPSC
- 39121117
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase buss bar
- E-Number (Finland)
- 3705928
- E-Number (Norway)
- 4364008
- E-Number (Sweden)
- 3111683
- EAN
- 4013614488146
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4013614400766
- SAP 1000225434
- Code 8962540
Product Documentation
More from ABB Automasjon
ABB Automasjon
100-250V AC/DC AF12-30-10-13
ABB Automasjon
ABB 2CDL230001R1648 PS 3/48/16H Busbar
ABB Automasjon
ABB FS 400A/250 Busbar Assembly Plates NHP 139201R0001
ABB Automasjon
ABB the RCBOs DS200 series has the function to protect against overload and short-circuit currents 2CSR273191R1104
ABB Automasjon
ABB SLKU pole mount Galvanized NHP 150193R0016
ABB Automasjon
ABB OZXB9/1 Terminal SET
ABB Automasjon

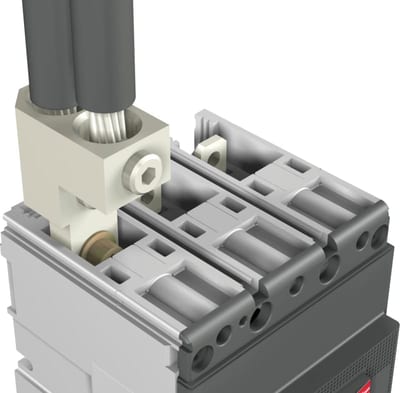

KAB.KL CUAL 2X240MM2 T5 630 4P
