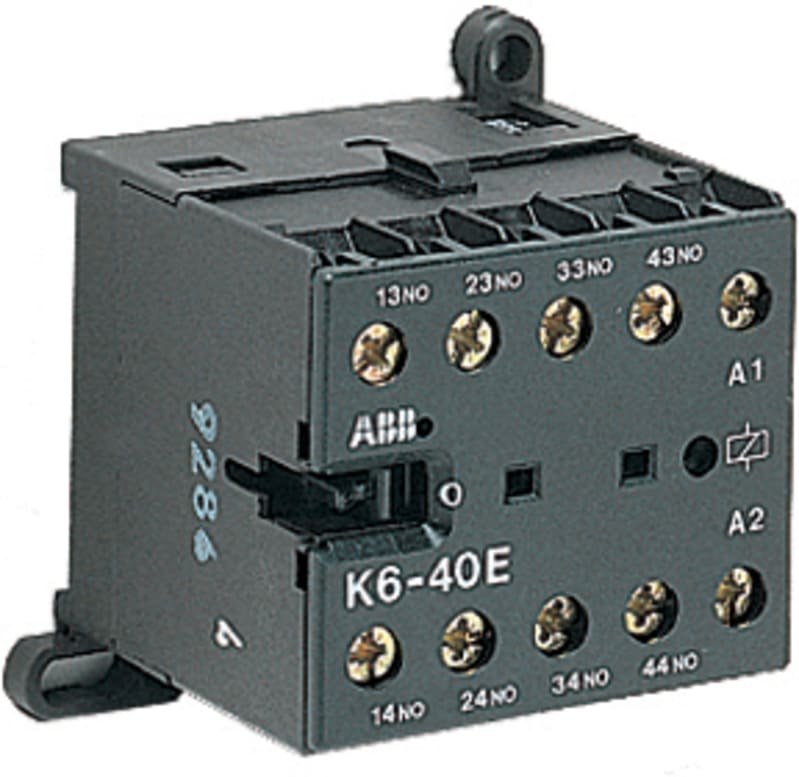

Auxiliary Relay KC6-40E 110V DC

ABB GJH1213001R0404 — The KC6-40E mini contactor relay is a compact 4 pole contactor relay with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Further features are the noiseless and hum-free coil and a a switch position indication.

Manufacturer part number (MPN)

GJH1213001R0404 EAN / GTIN: 4013614049798 Sales unit: pcs Voltage: 110 V Country of Origin: Germany Lead Time: 0 day Product Sales Status: Active Product Net Width: 52.5 mm Product Net Depth / Length: 46.5 mm Product Net Height: 57.5 mm Dimension Diagram: GJL1200436F0001 Number of Main Contacts NO: 0 Number of Main Contacts NC: 0 Number of Auxiliary Contacts NO: 4 Number of Auxiliary Contacts NC: 0 Number of Poles: 4P Standards: IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1; IEC 60335-2-40 A2L Rated Operational Voltage: Auxiliary Circuit 690 V AC; Auxiliary Circuit 250 V DC Rated Frequency (f): Auxiliary Circuit 50 Hz; Auxiliary Circuit 60 Hz; Auxiliary Circuit DC; Control Circuit DC; Main Circuit 60 Hz; Main Circuit 50 Hz; Main Circuit DC Conventional Free-air Thermal Current (I th ): Auxiliary Circuit 6 A Rated Operational Current AC-15 (I e ): (24 V) 4 A; (120 V) 4 A; (240 V) 4 A; (400 V) 3 A; (500 V) 2 A Rated Operational Current DC-13 (I e ): (24 V) 2.5 A; (110 V) 0.7 A; (220 / 240 V) 0.4 A Short-Circuit Protective Devices: gG Type Fuses 6 A Rated Insulation Voltage (U i ): 690 V; acc. to UL/CSA 600 V Rated Impulse Withstand Voltage (U imp ): Auxiliary Circuit 6 kV Maximum Electrical Switching Frequency: (AC-15) 600 cycles per hour; (DC-13) 600 cycles per hour Mechanical Durability: Nr. Operations 10000000 cycle minimum Switching Capacity: 17 V; 5 mA Coil Operating Limits: (acc. to IEC 60947-5-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C) Rated Control Circuit Voltage (U c ): 110 ... 125 V DC Coil Consumption: Average Holding Value DC 3.5 W; Average Pull-in Value DC 3.5 W Power Loss: at Rated Operating Conditions per Pole 0.32 W Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 1 ... 2.5 mm²; Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²; Flexible 1/2x 1 ... 2.5 mm²; Rigid 1/2x 1 ... 4 mm² Connecting Capacity Control Circuit: Flexible with Ferrule 1/2x 1 ... 2.5 mm²; Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²; Flexible 1/2x 1 ... 2.5 mm²; Rigid 1/2x 1 ... 4 mm² Wire Stripping Length: Auxiliary Circuit 9 mm Degree of Protection: Auxiliary Circuit Terminals IP20; Control Circuit Terminals IP20 Recommended Screw Driver: M3; Pozidriv 1 Tightening Torque: Auxiliary Circuit 0.8 ... 1.1 N·m; Control Circuit 0.8 ... 1.1 N·m; Main Circuit 0.8 ... 1.1 N·m Terminal Type: Screw Terminals Mini Contactor Type: Mini Contactor Relay Maximum Operating Voltage UL/CSA: 600 V AC General Use Rating UL/CSA: (600 V AC) 5 A Connecting Capacity Auxiliary Circuit UL/CSA: Stranded 1/2x 22-10 AWG Contact Rating UL/CSA: A600 Tightening Torque UL/CSA: Auxiliary Circuit 7 in·lb; Control Circuit 7 in·lb Ambient Air Temperature: Operation -25 ... +55 °C; Storage -40 ... +80 °C Maximum Operating Altitude Permissible: 2000 m Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 15g Resistance to Vibrations: 3g 3 ... 150 Hz ABB EcoSolutions: Yes ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available EcoSolutions Profile: 1SFC100125C0354 End Of Life Disassembling Instructions: 1SBC100156C0270 Environmental Product Declaration - EPD: 1SAC200409H0001 Improved Energy Efficiency for Customers: Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 87.4 % A2L Certificate – IEC: 1SAA938000-4601 CB Certificate: 1SAA938001-2001 Declaration of Conformity - CE: 1SAD101100-3101 Declaration of Conformity - UKCA: 1SAD201100-3101 RMRS Certificate: 1SAA938001-0704 UL Certificate: E48139-19881214 Object Classification Code: K ETIM 7: EC000196 - Contactor relay eClass: V11.0 : 27371001 UNSPSC: 39121529 IDEA Granular Category Code (IGCC): 4763 >> Power contactor, DC switching E-Number (Norway): 4190535 E-Number (Sweden): 3210549 EAN: 4013614411007

HS Code

8536.50

• EAN 4013614049798
• SAP 1000087531
• Code 8867390
