Attenuator RV-BC6/250 110-250
Pricing
Request a quote
We reply within 24 hours
Product Description

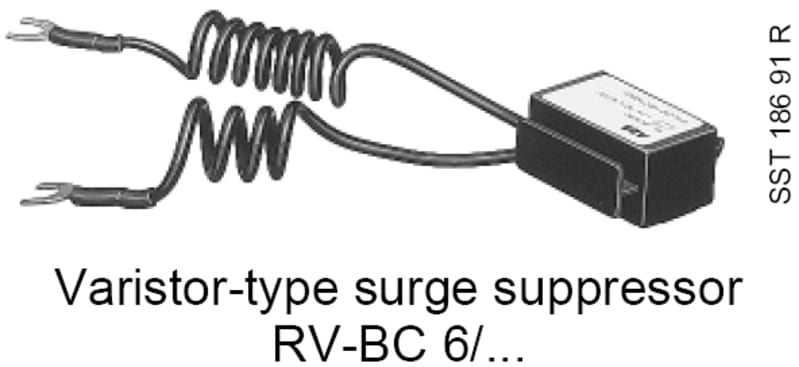

ABB RV-BC6/250 — The RV-BC6/250 is a varistor surge suppressor for contactor coils. Designed to reduce the maximum overvoltage peak value and to limit or even completely eliminate the high pre-damping voltage frequencies for a rated control circuit voltage between 50. 250 V. The surge suppressor is equipt with screw terminals and can be mounted on the DC-operated B6 and B7 mini contactor.
Technical Specifications
- Manufacturer part number (MPN)
- RV-BC6/250
- EAN / GTIN
- 4013614027178
- Sales unit
- pcs
- Product Net Width
- 21 mm
- Product Net Depth / Length
- 12 mm
- Product Net Height
- 11.5 mm
- Standards
- UL 60947-1; UL 60947-4-1
- Rated Frequency (f)
- Control Circuit DC
- Rated Insulation Voltage (U i )
- 690 V
- Rated Control Circuit Voltage (U c )
- DC Operation 50 ... 250 V DC
- Degree of Protection
- IP20
- Terminal Type
- Screw Terminals
- Suitable For
- BC6; BC7; KC6; TBC7; TKC6; VBC6; VBC6A; VBC7; VBC7A
- Suitable for Product Class
- Mini Contactors
- Ambient Air Temperature
- Operation -25 ... +55 °C; Storage -40 ... +80 °C
- Maximum Operating Altitude Permissible
- 2000 m
- ABS Certificate
- NoCerNee
- BV Certificate
- NoCerNee
- Declaration of Conformity - CE
- 1SAD101100-3101
- Declaration of Conformity - UKCA
- 1SAD201100-3101
- DNV Certificate
- NoCerNee
- GL Certificate
- NoCerNee
- LR Certificate
- NoCerNee
- RINA Certificate
- NoCerNee
- RMRS Certificate
- NoCerNee
- UL Certificate
- E191658-19881208
- Object Classification Code
- F
- ETIM 7
- EC000197 - Surge voltage protection
- ETIM 8
- EC000683 - Surge protection module
- eClass
- V11.0 : 27371010
- UNSPSC
- 39121610
- IDEA Granular Category Code (IGCC)
- 4906 >> Surge suppressers
- E-Number (Finland)
- 3709093
- E-Number (Norway)
- 4188188
- E-Number (Sweden)
- 3210692
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4013614027178
- SAP 1000072681
- Code 8563431
Product Documentation
