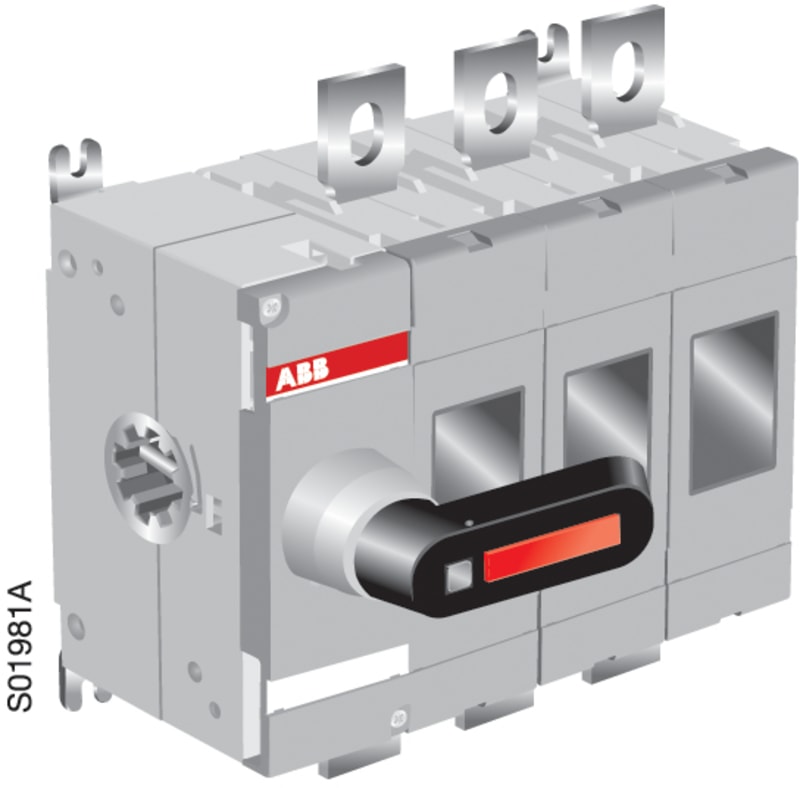

ABB 3-Pole, front operated, base mounted switch-disconnector with black direct mount handle, terminal bolt kit included 1SCA022763R5630

ABB 1SCA022763R5630 — 3-pole, front operated, base mounted switch-disconnector with black direct mount handle, terminal bolt kit included.

Manufacturer part number (MPN)

1SCA022763R5630

EAN / GTIN

6417019249353

HS code

8536.90

Sales unit

pcs

End Of Life Disassembling Instructions

1SCC301118M0201

Environmental Information

1SCC301266D0201

Environmental Product Declaration - EPD

1SCC301283D0201

Degree of Protection

Front IP00

Pollution Degree

3

Product Net Width

191 mm

Product Net Height

185 mm

Product Net Depth / Length

128 mm

Color

Grey

Conventional Free-air Thermal Current (I th )

Θ = 40 °C 315 A

Conventional Thermal Current (I the )

Fully Enclosed 315 A

Distance Between Phases

Standard

Handle Color

Black

Handle Type

Direct Mount Pistol Type

Mechanical Durability

16000

Mounting Type

Base mounting

Number of Poles

3P

Operating Mode

Front

Position of Line Terminals

Top In - Bottom Out; Bottom In - Top Out

Power Loss

at Rated Operating Conditions per Pole 6.5 W

Rated Conditional Short-Circuit Current (I nc )

(500 A fuse, 500 V) 100 kA; (500 A fuse, 690 V) 80 kA

Rated Impulse Withstand Voltage (U imp )

12 kV

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 1000 V

Rated Operational Current AC-21A (I e )

(380 ... 415 V) 315 A; (500 V) 315 A; (690 V) 315 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 315 A; (500 V) 315 A; (690 V) 315 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 315 A; (500 V) 315 A; (690 V) 315 A

Rated Operational Power AC-23A (P e )

(220 ... 240 V) 100 kW; (400 ... 415 V) 180 kW; (500 V) 220 kW; (690 V) 315 kW

Rated Operational Voltage

Main Circuit 1000 V

Rated Short-Circuit Making Capacity (I cm )

(690 V) 65 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 15 kA

Special Functions

No

Standards

IEC 60947-3

Switches Operating Mechanism

Mechanism at the End of the Switch; 03 (Left Side)

Terminal Type

Lug terminals

Terminal Width

25 mm

Tightening Torque

acc. IEC 60947-1 30 … 44 N·m

A2L Certificate – IEC

1SCC301337D0201

ATEX Certificate

No certification needed

BV Certificate

1SCC301103D0201

Declaration of Conformity - CE

1SCC301135D2704

DNV GL Certificate

1SCC301174D0204

GL Certificate

1SCC301139D0201

LR Certificate

1SCC301144D0201

UL Certificate

No certification needed

VDE Certificate

No certification needed

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122233

IDEA Granular Category Code (IGCC)

5293 >> Switch disconnector

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3660806

E-Number (Norway)

4337894

HS Code

8536.90

• EAN 6417019249353
• SAP 1000010749
• Code 885621
