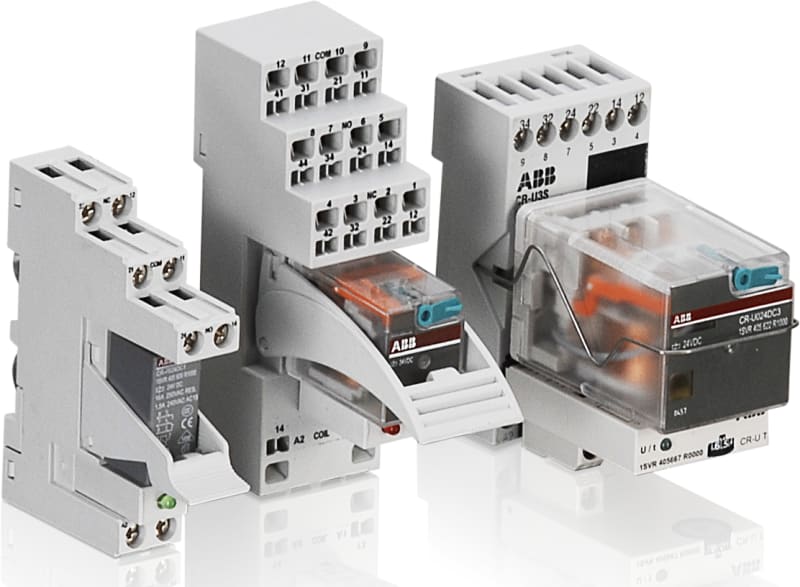

Logic Plinth CR-M2LS

ABB CR-M2LS — The CR-M2LS socket is from the CR-M (miniature) relay range. The logical socket is suitable for CR-M relays with 2 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories.

Manufacturer part number (MPN)

CR-M2LS

EAN / GTIN

4013614373756

Sales unit

pcs

Package quantity

10 pcs

Country of Origin

China

Lead Time

56 day

Product Sales Status

Inactive

Product Net Width

27 mm

Product Net Height

61 mm

Product Net Depth / Length

82 mm

Function

Accessory for interface relays CR-M

Sub-Function

Socket for miniature relays

Sub-Function 2

Logical socket for miniature relay 2 c/o

Rated Operational Voltage

250 V

Terminal Type

Screw Terminals

Rated Operational Current AC-12 (I e )

(230 V) 7 A

Rated Insulation Voltage (U i )

3 V

Mounting Position

1

Standards

CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61984; UL 508

Connecting Capacity Main Circuit UL/CSA

Flexible with Ferrule 2x 20-16 AWG; Rigid 2x 20-14 AWG; Stranded 2 x 20-14 AWG

Flammability According to UL94

V-0

Ambient Air Temperature

Operation -40 ... +70 °C; Storage -40 ... +70 °C

Maximum Operating Altitude Permissible

2000 m

CSA Certificate

CSA_262671_2785566

cURus Certificate

cURus508_E244328

Declaration of Conformity - CE

1SVD982020-0001

Declaration of Conformity - UKCA

1SVD982020-1000

EAC Certificate

EAC_RU_C-DE.ME77.B.00446-19

Object Classification Code

K

ETIM 7

EC001456 - Relay socket

eClass

V11.0 : 27371603

UNSPSC

39122335

E-Number (Finland)

2712712

E-Number (Norway)

4187428

E-Number (Sweden)

4005371

EAN

4013614528620

HS Code

8536.69

• EAN 4013614373756
• SAP 1000017626
• Code 8137555
