ABB Automasjon
Circuit Breaker S804S-C25
Part number2CCS864001R0254EAN / GTIN7612271200886HS code8536.90
Electrical Components
Miniature Circuit Breakers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB Automasjon 2CCS864001R0254 S800S, 50kA Icu, 4Pol, C-characteristic, 25A.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCS864001R0254
- EAN / GTIN
- 7612271200886
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 25 A
- Tripping characteristic
- C
- Power loss
- 17.2 W
- Built-in depth
- 82.5 mm
- Release characteristic
- C
- Number of poles (total)
- 4
- Number of protected poles
- 4
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Current limiting class
- 3
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 6
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -40–70 °C
- Connectable conductor cross section multi-wired
- 0–50 mm²
- Connectable conductor cross section solid-core
- 0–70 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7612271200886
- SAP 1000079406
- Code 8570691
Product Documentation
Document preview: Circuit Breaker S804S-C25 (2CCS864001R0254) — Specification sheet
More from ABB Automasjon
ABB Automasjon
Circuit Breaker S204M-B 6
S204M-B6
ABB Automasjon

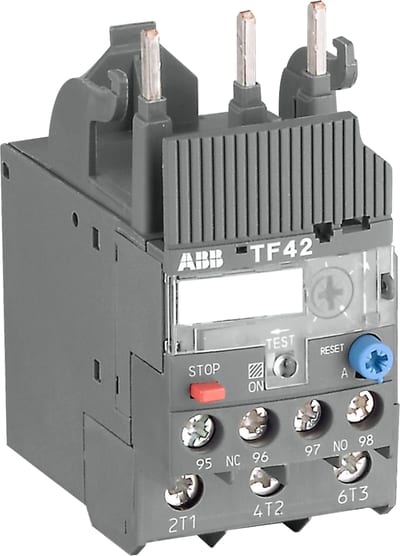

ABB TF42-0.17 Thermal Overload Relay, 0.13-0.17 A
