Contactor B 6-40-00F 380/50

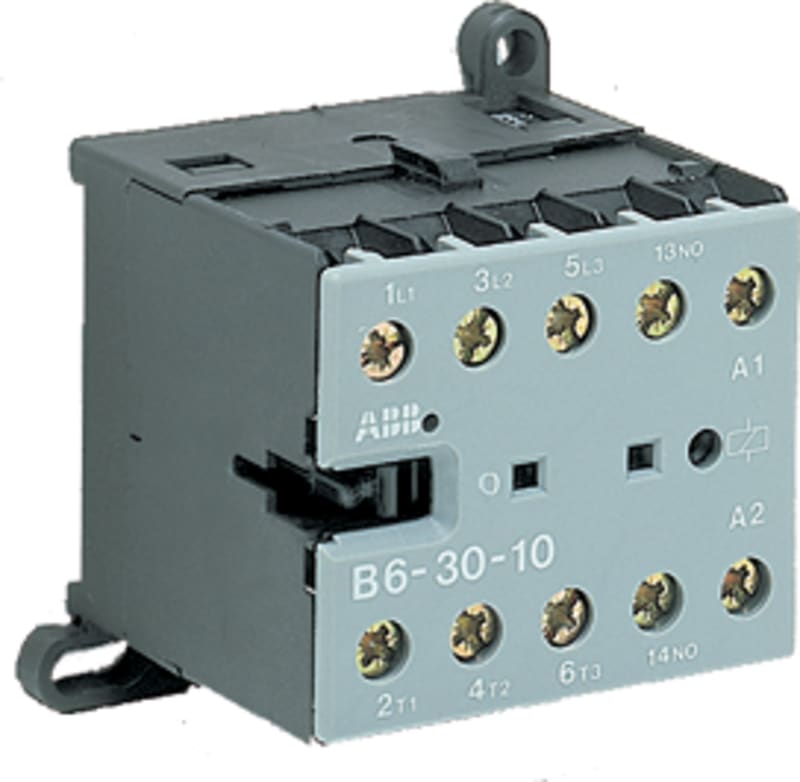

ABB GJL1211203R8005 — The B6-40-00-F mini contactor is a compact 4 pole contactor with flat pin connection. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.

Manufacturer part number (MPN)

GJL1211203R8005

EAN / GTIN

4013614189296

HS code

8536.90

Sales unit

pcs

Product Net Width

52.5 mm

Product Net Depth / Length

46.7 mm

Product Net Height

57.5 mm

Dimension Diagram

GJL1200437F0001

Number of Main Contacts NO

4

Number of Main Contacts NC

0

Number of Auxiliary Contacts NO

0

Number of Auxiliary Contacts NC

0

Number of Poles

4P

Standards

IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1; IEC 60335-2-40 A2L

Rated Operational Voltage

Main Circuit 690 V AC; Main Circuit 220 V DC

Rated Frequency (f)

Control Circuit 400 Hz; Control Circuit 50 Hz; Control Circuit 60 Hz; Main Circuit 60 Hz; Main Circuit 50 Hz; Main Circuit DC

Conventional Free-air Thermal Current (I th )

Main Circuit 20 A

Rated Operational Current AC-1 (I e )

(220 / 240 V) 40 °C 20 A; (220 / 240 V) 55 °C 16 A; (380 / 440 V) 40 °C 20 A; (380 / 440 V) 55 °C 16 A; (690 V) 40 °C 6 A; (690 V) 55 °C 6 A

Rated Operational Current AC-3 (I e )

(230 V) 55°C 9 A; (400 V) 55 °C 9 A; (500 V) 55 °C 6.5 A; (690 V) NO 55°C 3.5 A

Rated Operational Power AC-3 (P e )

(230 V) Three Phase 2.2 kW; (400 V) Three Phase 4 kW; (500 V) Three Phase 4 kW; (690 V) Three Phase, NO 3 kW

Rated Breaking Capacity AC-3

8 x Ie / AC-3

Rated Making Capacity AC-3

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I cw )

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 64 A

Rated Insulation Voltage (U i )

690 V; acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U imp )

Main Circuit 6 kV

Maximum Electrical Switching Frequency

(AC-1) 300 cycles per hour; (AC-3) 600 cycles per hour; (DC-1) 600 cycles per hour; (DC-3) 600 cycles per hour

Mechanical Durability

Nr. Operations 10000000 cycle

Coil Operating Limits

(acc. to IEC 60947-4-1) for AC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U c )

380 ... 415 V AC

Coil Consumption

Average Holding Value 50 Hz 3.5 V·A; Average Pull-in Value 50 Hz 3.5 V·A

Power Loss

at Rated Operating Conditions AC-1 per Pole 1 W

Mounting on DIN Rail

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Degree of Protection

Control Circuit Terminals IP20; Main Circuit Terminals IP20

Terminal Type

Flat-Pin Connections

Mini Contactor Type

Mini Contactor

Maximum Operating Voltage UL/CSA

Main Circuit 600 V AC

General Use Rating UL/CSA

(300 V AC) 12 A

Horsepower Rating UL/CSA

(115 V AC) Single Phase 0.25 Hp; (200 V AC) Three Phase 1 Hp; (220 ... 240 V AC) Three Phase 2 Hp; (230 V AC) Single Phase 0.5 Hp; (440 ... 480 V AC) Three Phase 3 Hp; (550 ... 600 V AC) Three Phase 1 Hp

Full Load Amps Motor Use

(115 V AC) Single Phase 5.8 A; (200 V AC) Three Phase 4.8 A; (220 ... 240 V AC) Three Phase 6.8 A; (230 V AC) Single Phase 4.9 A; (440 ... 480 V AC) Three Phase 4.8 A; (550 ... 600 V AC) Three Phase 1.7 A

Ambient Air Temperature

Operation -20 ... +55 °C; Storage -40 ... +80 °C

Maximum Operating Altitude Permissible

2000 m

Resistance to Shock acc. to IEC 60068-2-27

11 ms Pulse 15g

Resistance to Vibrations

5g 5 ... 150 Hz

ABB EcoSolutions

Yes

ABB Site Meeting Group Waste To Landfill Target

No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available

EcoSolutions Profile

1SFC100125C0354

End Of Life Disassembling Instructions

1SBC100156C0270

Environmental Product Declaration - EPD

1SAC200409H0001

Improved Energy Efficiency for Customers

Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 87.4 %

A2L Certificate – IEC

1SAA938000-4601

BV Certificate

1SAA920000-0204

CB Certificate

1SAA938000-2002

CCC Certificate

2024010304658943

cURus Certificate

cUL_E191658

Declaration of Conformity - CE

1SAD101100-3101

Declaration of Conformity - UKCA

1SAD201100-3101

DNV GL Certificate

1SAA938000-0306

LR Certificate

1SAA938000-0504

RMRS Certificate

1SAA938000-0704

UL Certificate

E191658-19880915

Object Classification Code

Q

ETIM 7

EC000066 - Power contactor, AC switching

eClass

V11.0 : 27371003

UNSPSC

39121529

E-Number (Norway)

4184012

EAN

4013614413315

HS Code

8536.90
