ABB Automasjon

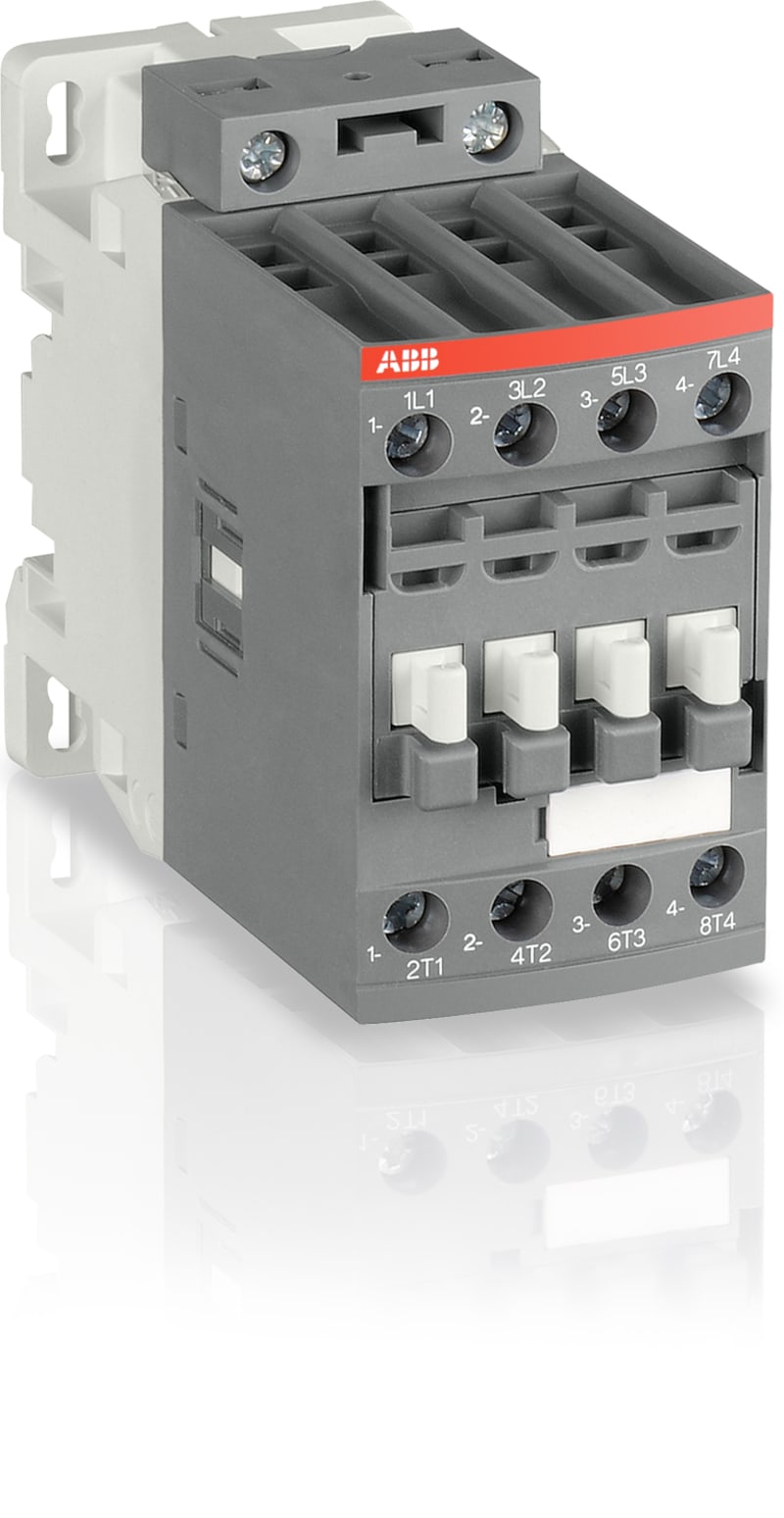

AF38Z-22-00, 24-60VAC/20-60VDC (AF38Z-22-00-21 24-60V50/60HZ 20-60VDC)
Part numberAF38Z-22-00-21 24-60V50/60HZ 20-60VDCEAN / GTIN3471523116917HS code8536.90
Electrical Components
Contactors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB Automasjon AF38Z-22-00-21 24-60V50/60HZ 20-60VDC AF38Z-22-00-21.
Technical Specifications
- Manufacturer part number (MPN)
- AF38Z-22-00-21 24-60V50/60HZ 20-60VDC
- EAN / GTIN
- 3471523116917
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Voltage
- 24-60 V AC
- Width
- 45 mm
- Height
- 86 mm
- Depth
- 101 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 11 kW
- Number of normally open contacts as main contact
- 2
- Number of normally closed contacts as main contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 22 A
- Rated operation current Ie at AC-1, 400 V
- 55 A
- Rated control supply voltage AC 50 Hz
- 24–60 V
- Rated control supply voltage AC 60 Hz
- 24–60 V
- Rated control supply voltage DC
- 20–60 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC/DC
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3471523116917
- SAP 1000407329
- Code 81091656
Product Documentation
Document preview: AF38Z-22-00, 24-60VAC/20-60VDC (AF38Z-22-00-21 24-60V50/60HZ 20-60VDC) — Specification sheet
