ABB Automasjon

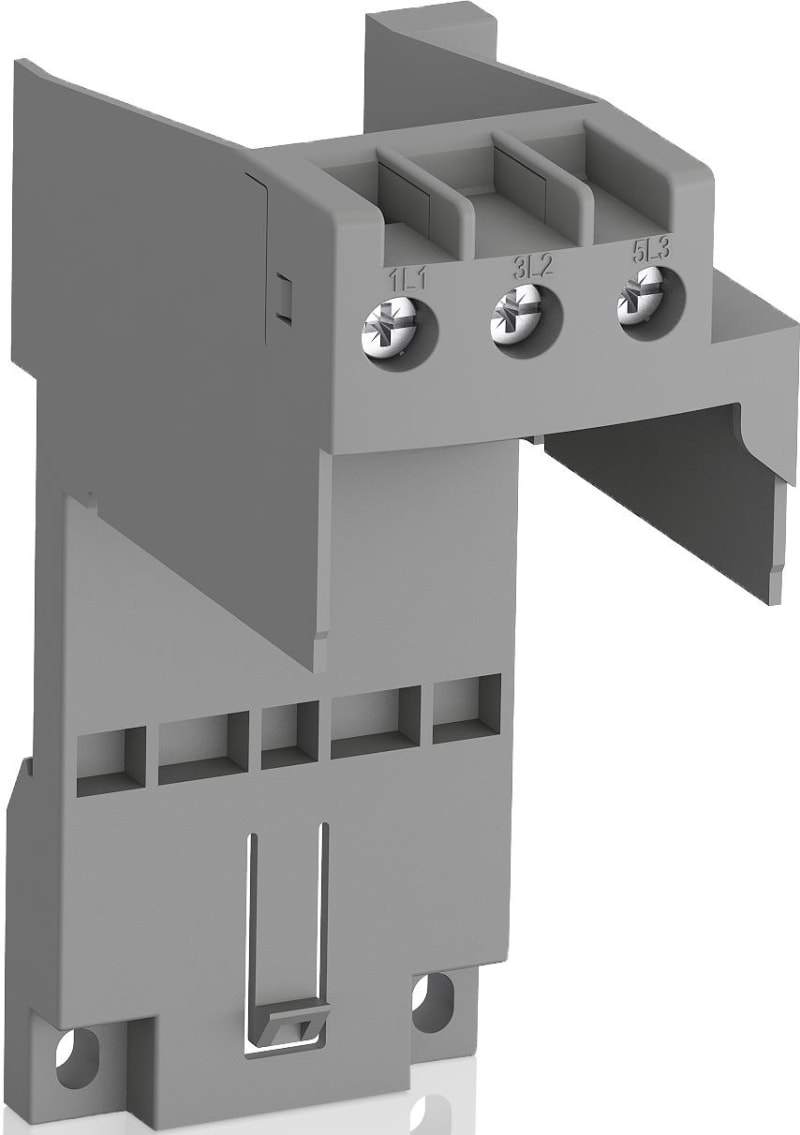

Base for Separate Mounting of EF19DU Overload Relay
Part numberDB19EFEAN / GTIN4013614483950HS code8538.90
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB DB19EF mounting base for separate (stand-alone) mounting of EF19DU electronic overload relays.
Technical Specifications
- Manufacturer part number (MPN)
- DB19EF
- EAN / GTIN
- 4013614483950
- Sales unit
- pcs
- Configuration Only
- No
- Country of Origin
- Italy
- Criticality
- No
- Lead Time
- 48 day
- Note
- No
- Product Availability Class
- Standard delivery time
- Product Sales Status
- Active
- Storage Location
- 4001
- Product Net Width
- 45 mm
- Product Net Height
- 103.5 mm
- Product Net Depth / Length
- 67.3 mm
- Rated Operational Voltage
- Auxiliary Circuit 600 V AC/DC; Main Circuit 690 V AC
- Rated Operational Current (I e )
- 18.9 A
- Rated Operational Current AC-3 (I e )
- 18.9 A
- Rated Frequency (f)
- Main Circuit 50 Hz; Main Circuit 60 Hz
- Rated Impulse Withstand Voltage (U imp )
- Main Circuit 6 kV
- Rated Insulation Voltage (U i )
- 690 V
- Number of Poles
- 3P
- Number of Protected Poles
- 3
- Pollution Degree
- 3
- Connecting Capacity Main Circuit
- Flexible with Ferrule 1x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²; Flexible 1x 0.75 ... 2.5 mm²; Rigid 1x 1 ... 4 mm²
- Tightening Torque
- Main Circuit 0.8 ... 1.5 N·m
- Wire Stripping Length
- Main Circuit 12 mm
- Recommended Screw Driver
- Pozidriv 2
- Suitable For
- EF19
- Standards
- IEC/EN 60947-1; IEC/EN 60947-4-1; UL 60947-1; UL 60947-4-1
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Connecting Capacity Main Circuit UL/CSA
- Flexible 1/2x 18-10 AWG; Stranded 1/2x 18-10 AWG
- Tightening Torque UL/CSA
- Main Circuit 7 ... 13 in·lb
- RoHS Information
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA
- 2CMT2023-006525
- Declaration of Conformity - CE
- 1SAD101100-3504
- Declaration of Conformity - UKCA
- 1SAD201100-3504
- EAC Certificate
- 1SAA941003-2701
- UL Certificate
- E48139-19990512
- Object Classification Code
- F
- ETIM 9
- EC002498 - Accessories/spare parts for low-voltage switch technology
- eClass
- V11.0 : 27371392
- UNSPSC
- 31162313
- IDEA Granular Category Code (IGCC)
- 2988 >> Mounting kits
- E-Number (Finland)
- 3800373
- E-Number (Norway)
- 4117837
- E-Number (Sweden)
- 3210277
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4013614483950
- SAP 1200092849
- Code 81961174
Product Documentation
Document preview: Base for Separate Mounting of EF19DU Overload Relay (DB19EF) — Specification sheet
