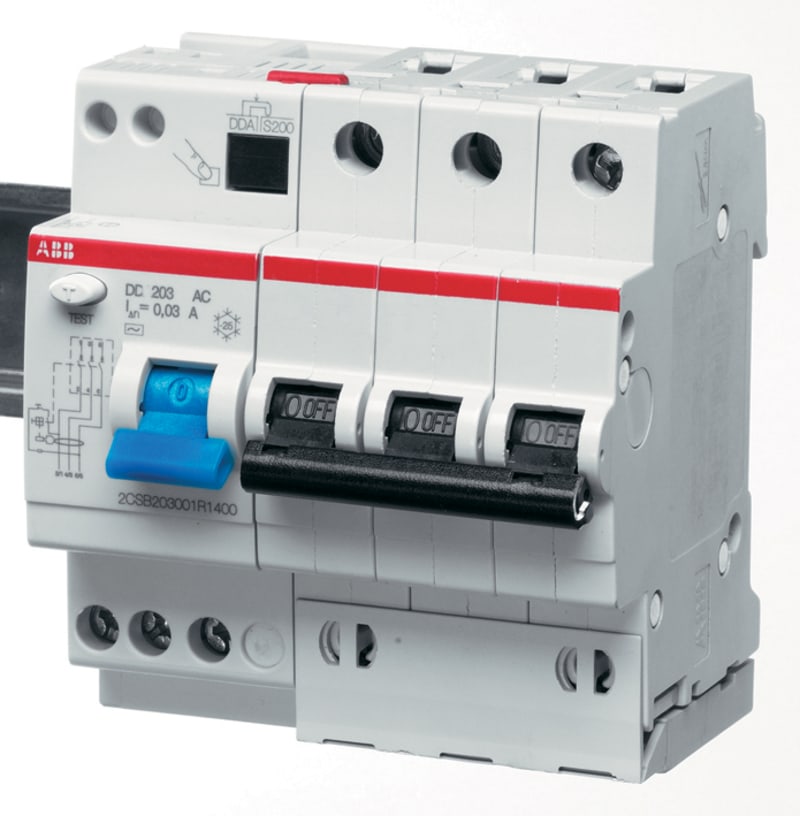

ABB the RCBOs DS200 series has the function to protect against overload and short-circuit currents 2CSR273191R1164

ABB 2CSR273191R1164 — The RCBOs DS200 series has the function to protect against overload and short-circuit currents.

Manufacturer part number (MPN)

2CSR273191R1164

EAN / GTIN

8012542178026

Sales unit

pcs

Type of Residual Current

Type A

Rated Ultimate Short-Circuit Breaking Capacity (I cu )

(400 V AC) 15 kA

Power Supply Connection

Arbitrary

Electrical Endurance

10000 cycle

Number of Protected Poles

3

Number of Poles

3P

Number of Earth Leakage Circuit Breakers (ELCBs)

1

Operating Characteristic

Instantaneous

Release Type

C

Connecting Capacity

Busbar 10 mm²; Rigid 16 ... 25 mm²; Flexible 16 ... 25 mm²

Short-Circuit Current Rating (SCCR)

30 mA

Tripping Characteristic

C

Rated Voltage (U r )

230 V AC

Rated Operational Voltage

230 V AC

Rated Current (I n )

16 A

Rated Residual Current

30 mA

Rated Short-Circuit Capacity

(230 V AC) 10 kA

Maximum Breaking Capacity

10 kA

Rated Frequency (f)

50 … 60 Hz

Power Loss

Total 6.6 W

Ambient Air Temperature

Operation -25 ... +55 °C; Storage -40 ... +70 °C

Resistance to Vibrations

20 Cycles with Load 0.8 In: 1g or 0.1mm 5...150...5 Hz

Resistance to Shock acc. to IEC 60068-2-27

25g 2 shocks 13 ms

Environmental Information

Refer to RoHS

Product Net Width

87.5 mm

Product Net Height

93 mm

Product Net Depth / Length

69 mm

Declaration of Conformity - CE

9AKK106713A5607

Instructions and Manuals

9AKK107045A1451

ETIM 9

EC002281 - Distributor assembly with combination RCCB/MCB

eClass

V11.0 : 27400618

Object Classification Code

F

Standards

IEC EN 60947-2; EN 61009-1

Rated fault current

30 mA

Concurrently switching neutral conductor

No

Release characteristic

C

Breaking capacity

10 kA

Wiring on terminal block

No

Height

93 mm

Width

87.5 mm

Depth

69 mm

Country of origin

Italy

HS Code

8536.30
