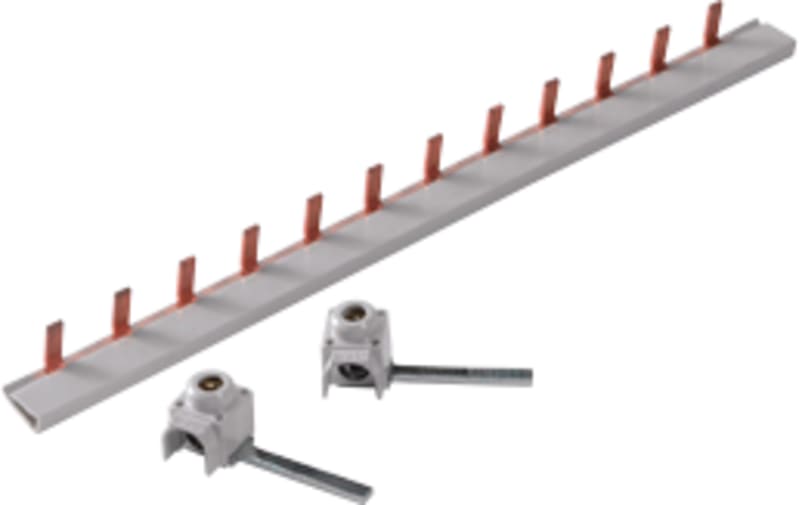

ABB GHV0360875R0035 SZ-KS 16/12 N BUS BAR
Pricing
Request a quote
We reply within 24 hours
Overview
ABB Automasjon ABB GHV0360875R0035 SZ-KS 16/12 N BUS BAR is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Pitch: 44698.0; Accessory Type: Busbar; Connection Type: Pin; Rated Cross-Section: 16 mm²; Rated Operational Voltage: 400 V; Maximum 400 V.
Technical Specifications
- Manufacturer part number (MPN)
- GHV0360875R0035
- EAN / GTIN
- 4012233555505
- Sales unit
- pcs
- Pitch
- 44698.0
- Number of Poles
- 12P
- Number of Phases
- 1-phase
- Number of Mountable Devices
- 12
- Accessory Type
- Busbar
- Connection Type
- Pin
- Rated Cross-Section
- 16 mm²
- Rated Operational Voltage
- 400 V; Maximum 400 V
- Voltage Protection Level ( Up)
- 4.5 kV
- Rated Short-time Withstand Current Low Voltage (I cw )
- 25 kA
- Rated Uninterrupted Current (I u )
- 80 A
- Product Net Width
- 14.7 mm
- Product Net Height
- 15.8 mm
- Product Net Depth / Length
- 204 mm
- Declaration of Conformity - CE
- 9AKK108469A0841
- Declaration of Conformity - UKCA
- 9AKK108469A0914
- ETIM 9
- EC000215 - Phase busbar
- UNSPSC
- 39121117
- eClass
- V11.0 : 27371306
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase buss bar
- Insulated
- Yes
- Cross section
- 16 mm²
- Rated permanent current Iu
- 80 A
- Length
- 204 mm
- Rated surge voltage
- 4.5 kV
- Type of electric connection
- Pin
- Rated short-time withstand current lcw
- 25 kA
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Suitable for number of devices
- 12
- Max. rated operation voltage Ue
- 400 V
- Module width
- 44698 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4012233555505
- SAP 1000059061
- Code 8863970
