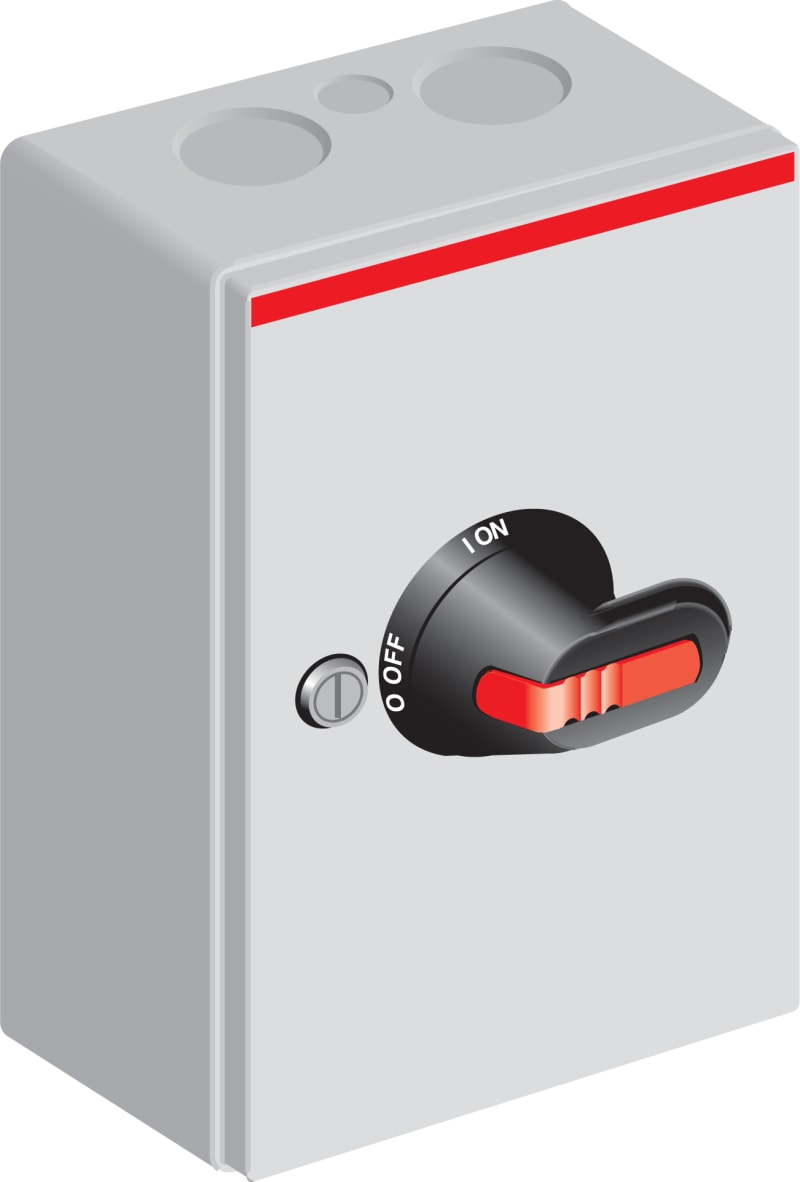

ABB Automasjon OT63ETMM3TE 63 A 3-Pole EMC Safety Switch IP65 Steel Enclosure

ABB OT63ETMM3TE is an EMC enclosed safety switch rated 63 A three-pole at 415 V AC-23, 30 kW, with one N/O auxiliary contact factory-mounted. The rigid alu-zinc coated steel enclosure has a hinged lockable door with cover interlock, defeatable for thermographic inspection, and a black pistol handle. The cabinet is IP65 with IK09 impact rating, holds knock-out cable entries for EMC glands, and includes a PE terminal. Suitable for outdoor use per UL746C for UV exposure, water exposure, and immersion. Typical applications include local isolation of motors and drive systems in EMC-sensitive installations.

Manufacturer part number (MPN)

OT63ETMM3TE

EAN / GTIN

6417019237787

Sales unit

pcs

IP rating

IP54

Degree of Protection

acc. to IEC 60529 IP65

Pollution Degree

3

Product Net Width

165 mm

Product Net Height

250 mm

Product Net Depth / Length

110 mm

Cable Cross-Section

10 ... 70 mm²

Cable Entry Position

Top/Bottom

Cable Outlets Per Side

2xø32.5+ø16.5 / 2xø32.5+ø16.5

Color

RAL7035

Connecting Capacity Main Circuit

Screw Clamp 10 ... 70 mm²; Screw Clamp / PE Terminal 2pc 1.5 ... 25 mm²

Conventional Thermal Current (I the )

Fully Enclosed 115 A

Enclosure Material

Steel sheet

Handle Color

Black

Handle Type

Pistol

Impact Resistance Rating

Housing IK09

Maximum Mounted Auxiliary Contacts

2 NO, 1 NC

Mounted Auxiliary Contacts

1 NO, 0 NC

Neutral Type

No Neutral Terminal

Number of Auxiliary Contacts NC

0

Number of Auxiliary Contacts NO

1

Number of Poles

3P

Power Loss

at Rated Operating Conditions per Pole 4 W; Total 12 W

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 750 V

Rated Operational Current AC-21A (I e )

(400 V) 63 A; (500 V) 63 A; (690 V) 63 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 63 A; (500 V) 63 A; (690 V) 63 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 63 A; (500 V) 50 A; (690 V) 35 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 30 kW; (500 V) 30 kW; (690 V) 30 kW

Rated Operational Voltage

Main Circuit 750 V

Rated Short-Circuit Making Capacity (I cm )

(690 V AC) 3.6 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 2.5 kA; for 0.2 s 2.5 kA

Recommended Screw Driver

Main Circuit Hexagon 4

Special Functions

EMC

Standards

IEC 60947-1, -3

Terminal Type

Screw Terminals

Tightening Torque

Main Circuit 6 N·m

Wire Stripping Length

20 mm

Declaration of Conformity - CE

1SCC340002D2703

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122205

IDEA Granular Category Code (IGCC)

5166 >> Safety switch

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3601744

E-Number (Norway)

1429473

E-Number (Sweden)

3141207

HS Code

8536.30
