EMC Safety Switch 3P 45 A 22 kW IP54, OT36ETMM3TE

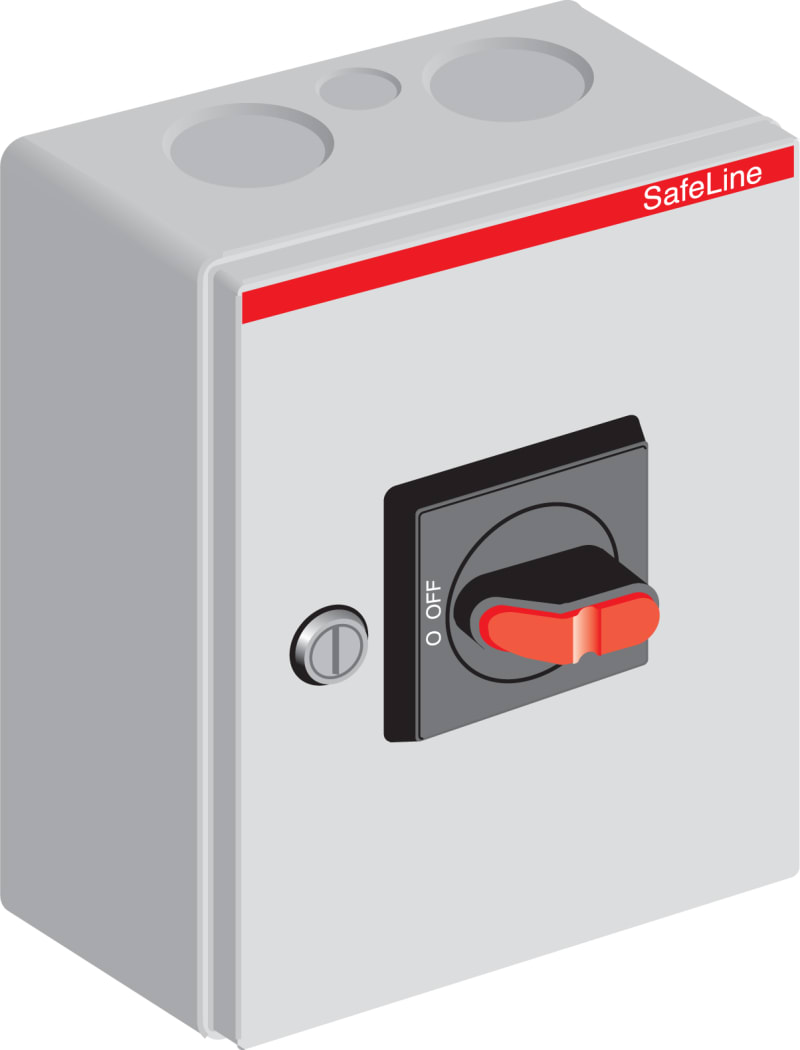

ABB OT36ETMM3TE EMC safety switch, 3-pole, 415 V AC-23A 45 A, 22 kW, with 1 NO auxiliary contact. Steel-sheet enclosure with hinged, interlocked door and door lock; defeatable interlock permits thermographing while energised. Rigid alu-zinc coated steel with polyester powder coating; suitable for outdoor use per UL746C for UV, water exposure and immersion. Knock-out cable entries; EMC cable glands to be used; PE terminal included.

Manufacturer part number (MPN)

OT36ETMM3TE

EAN / GTIN

6417019237770

Sales unit

pcs

IP rating

IP54

Degree of Protection

acc. to IEC 60529 IP65

Pollution Degree

3

Product Net Width

150 mm

Product Net Height

200 mm

Product Net Depth / Length

100 mm

Cable Cross-Section

1.5 ... 35 mm²

Cable Entry Position

Top/Bottom

Cable Outlets Per Side

2xø32.5+ø16.5 / 2xø32.5+ø16.5

Color

RAL7035

Connecting Capacity Main Circuit

Screw Clamp 1.5 ... 35 mm²; Screw Clamp / PE Terminal 2pc 1.5 ... 25 mm²

Conventional Thermal Current (I the )

Fully Enclosed 80 A

Enclosure Material

Steel sheet

Handle Color

Black

Handle Type

Selector

Impact Resistance Rating

Housing IK09

Maximum Mounted Auxiliary Contacts

2 NO, 1 NC

Mounted Auxiliary Contacts

1 NO, 0 NC

Neutral Type

No Neutral Terminal

Number of Auxiliary Contacts NC

0

Number of Auxiliary Contacts NO

1

Number of Poles

3P

Power Loss

at Rated Operating Conditions per Pole 2.8 W; Total 8.4 W

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 750 V

Rated Operational Current AC-21A (I e )

(400 V) 63 A; (500 V) 63 A; (690 V) 63 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 63 A; (500 V) 63 A; (690 V) 63 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 45 A; (500 V) 45 A; (690 V) 20 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 22 kW; (500 V) 22 kW; (690 V) 15 kW

Rated Operational Voltage

Main Circuit 750 V

Rated Short-Circuit Making Capacity (I cm )

(690 V AC) 2.1 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 1.5 kA; for 0.2 s 1.5 kA

Recommended Screw Driver

Main Circuit Pozidriv 2

Special Functions

EMC

Standards

IEC 60947-1, -3

Terminal Type

Screw Terminals

Tightening Torque

Main Circuit 2 N·m

Wire Stripping Length

13 mm

Declaration of Conformity - CE

1SCC340002D2703

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122205

IDEA Granular Category Code (IGCC)

5166 >> Safety switch

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3601742

E-Number (Norway)

1429472

E-Number (Sweden)

3141206

HS Code

8536.30
