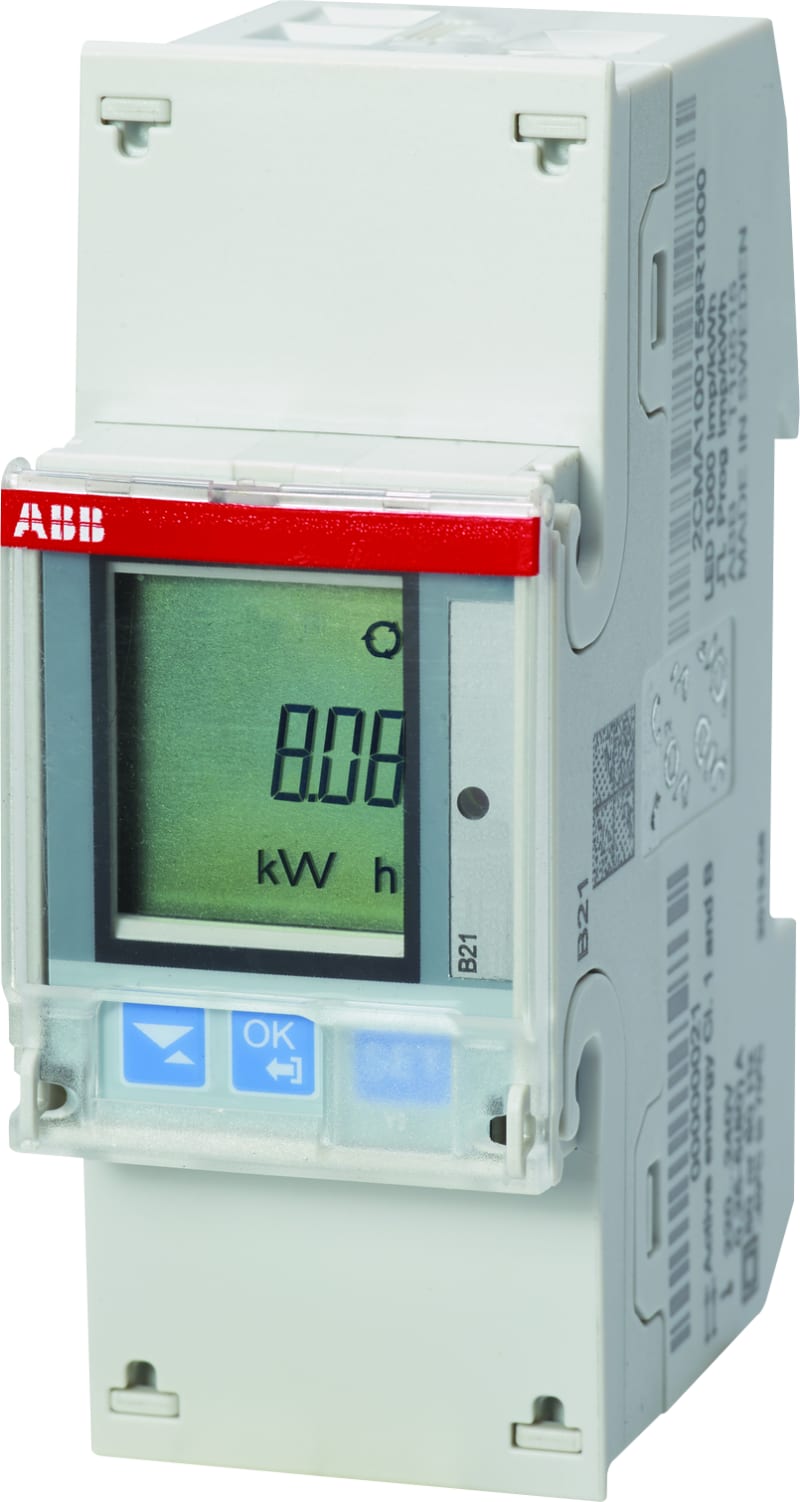

Energy Meter 1-Phase B21 111-100 Steel, Direct Connected, IR + Pulse
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB B21 111-100 Steel single-phase energy meter, direct connected, 57–288 V, 50/60 Hz, active energy class 1 and class B, IR interface and pulse output; DIN-rail mounting.
Technical Specifications
- Manufacturer part number (MPN)
- B21 111-100 Stål
- EAN / GTIN
- 7392696001496
- Sales unit
- pcs
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 35 mm
- Model
- Direct measurement
- Height
- 26.5 mm
- Depth
- 65 mm
- Suitable for
- Purchase
- Type of indication
- Digital
- Power consumption
- 0.414 W
- Frequency
- 50–60 Hz
- Max. current (Imax)
- 65 A
- Width in number of modular spacings
- 2
- Number of positions total (counter)
- 7
- Type of meter
- Electronic
- Degree of protection (IP)
- IP20
- Energy type
- Effective power
- Tariff type
- One-tariff
- Tariff control
- Internal
- Escapement mechanism
- Yes
- Calibrated
- Yes
- Approval
- Measuring Instruments Directive
- Pulse output
- Electrical
- Pulse type
- S0
- Pulse rate
- 1–999999 Imp/kWh (kvarh)
- Accuracy class
- B
- Pole type
- Single phase
- Measurement type load profile
- No
- EEC40 signature
- No
- With lock code
- No
- Nominal voltage (Un) N-L
- 220–240 V
- Nominal voltage (Un) L-L
- 220–240 V
- Nominal current (In)
- 65 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 7392696001496
- SAP 1000408002
- Code 8484883
Product Documentation
More from ABB
ABB

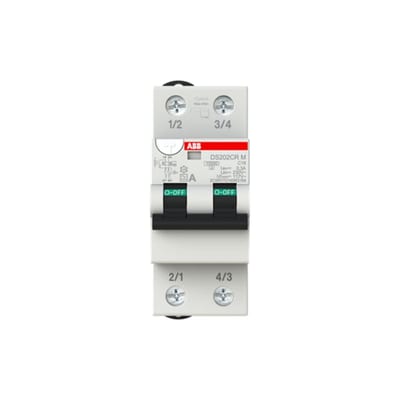

Residual Current Circuit Breaker WITH Overcurrent DS202CRM C16A 300MA
DS202CR M C16 A300
ABB

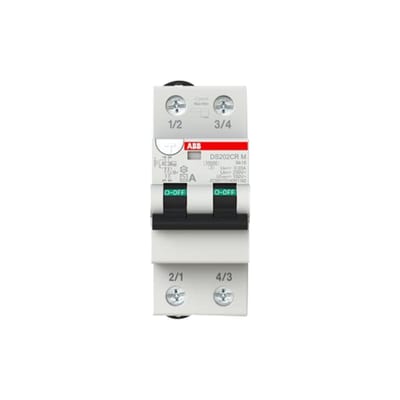

Residual Current Circuit Breaker WITH Overcurrent DS202CRM BK16A 30MA
2CSR772140R1162
ABB
ABB S403-K32 Miniature Circuit Breaker — 3P, Type K, 32 A, 10 kA 2CCS573001R0537
ABB

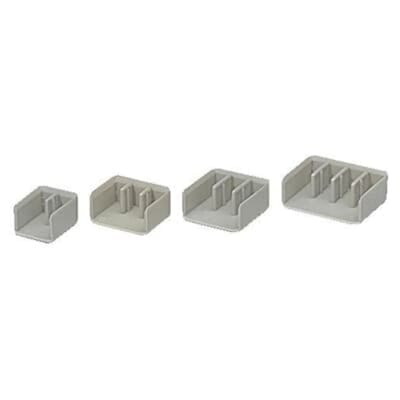

ABB 2CDL800001R0040 Endcap for 4 phases Busbars, cross section 10/16mm²
ABB
TILSTEDEV. 360* Standard
6131/30-24-500
ABB

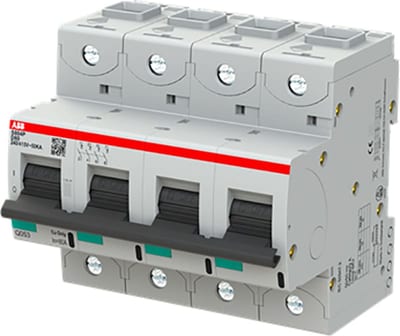

ABB S804P-D80 Miniature Circuit Breaker — 4P, Type D, 80 A, 50 kA
2CCG001247R0001
ABB

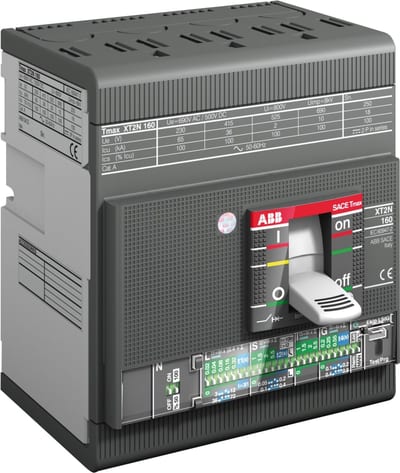

ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — Ekip LS/In, In=25 A, 4-Pole
1SDA067091R1
ABB

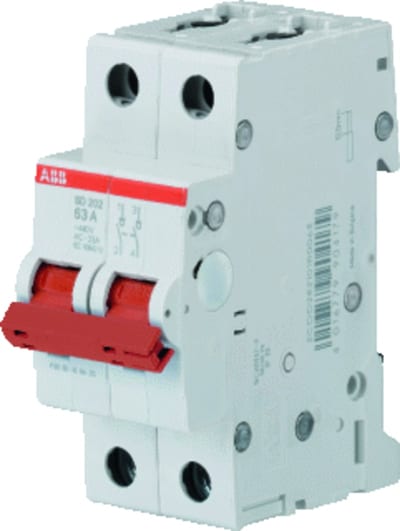

Modular LOAD-Break Switch SD202/63
