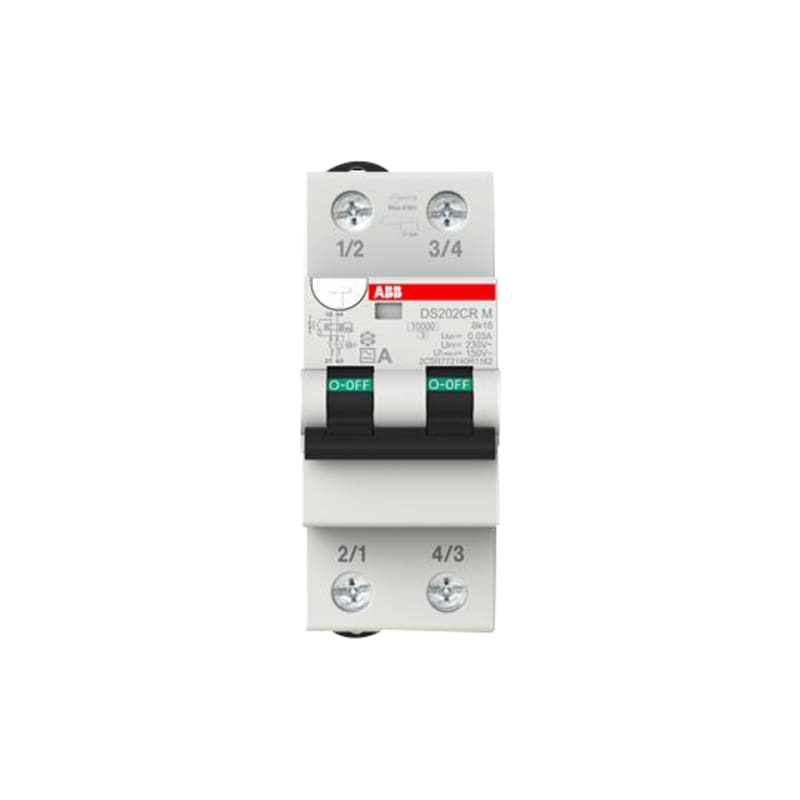

Residual Current Circuit Breaker WITH Overcurrent DS202CRM BK16A 30MA
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSR772140R1162 DS202CR M, 10kA, 2P, Type A, Bk-characteristic, 16A, 30mA, For residential use, ref NEK400, 2010.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSR772140R1162
- EAN / GTIN
- 4022903034469
- HS code
- 8536.90
- Sales unit
- pcs
- Residual current
- 30 mA
- Power loss
- 4.2 W
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 440 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 16 A
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 0.25 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- B
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- No
- Overvoltage category
- 3
- Pollution degree
- 3
- Ambient temperature during operating
- -25–55 °C
- Width in number of modular spacings
- 2
- Built-in depth
- 72 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–35 mm²
- Connectable conductor cross section multi-wired
- 1–25 mm²
- Flush-mounted installation
- No
- Mounting method
- DIN rail
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4022903034469
- SAP 1200689294
- Code 83545405
Product Documentation
