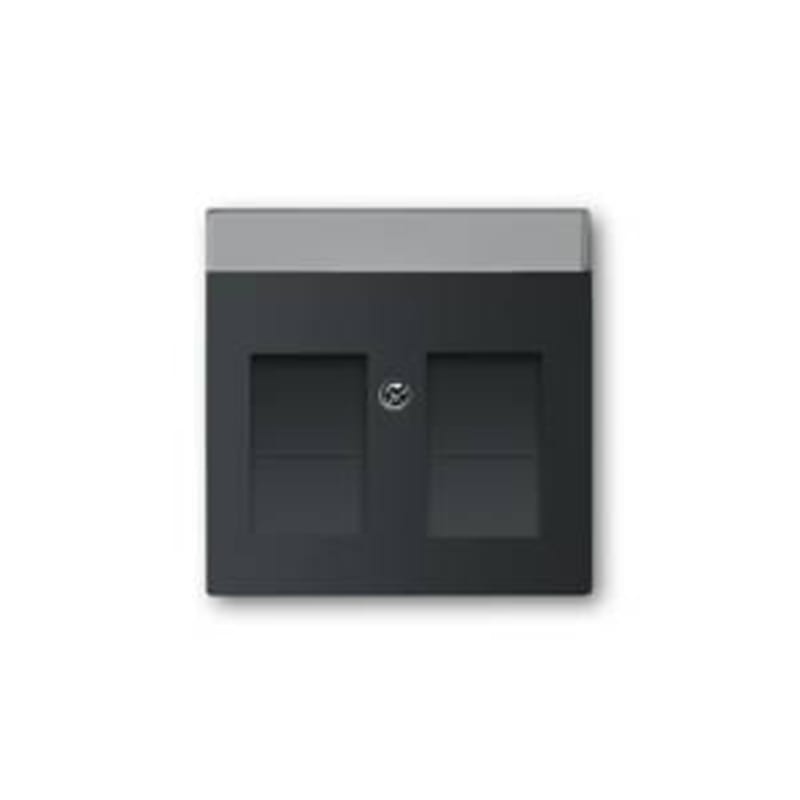

ABB Center Plate 2x RJ45 with Dust Cover Slide Entrance Black Matt
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1800-885 is a 1-gang center plate for modular jacks with slide entrance, finished in matt black (similar to RAL 9005) and supplied with a 60 x 9 mm labelling field. It fits ABB communication inserts 1810, 1812, 1814, 1816, 1818, 1819 and 1820 and is compatible with the Platform 63, future linear, Busch-axcent and carat design ranges. The lacquered thermoplastic body is halogen-free with impact strength IK03 and degree of protection IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 1800-885
- EAN / GTIN
- 4011395127346
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Mounting Type
- Flush-mounted
- Type of Fastening
- Mounting with Screw
- Modular Components Included
- Cover Plate
- Degree of Protection
- IP20
- Application
- Keystone
- Function
- with slide entrance
- Type of Indicator
- With indication plate
- Outlet Orientation
- Straight
- Design Range
- Platform 63; future linear; Busch-axcent; carat
- Design Range Variant
- future linear - matt; Busch-axcent; Busch-axcent pur
- Surface Finishing
- Lacquered; Matt
- Material
- Plastic; Thermoplastic
- Label Space Provided
- With Label Space
- Label Space Size
- 60 x 9 mm
- RAL Number
- Similar to RAL 9005
- Color
- black matt
- Number of Gangs
- 1-gang
- Product Net Width
- 63 mm
- Product Net Height
- 63 mm
- Product Net Depth / Length
- 13.1 mm
- Dimension Diagram
- 2CKA000097E0437
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000018 - Insert/cover for communication technology
- eClass
- V11.0 : 27144049
- Mounting method
- Flush-mounted
- Assembly arrangement
- Control element
- Colour
- Black
- Halogen free
- Yes
- With hinged lid
- No
- Surface protection
- Lacquered
- Outlet direction
- Straight
- With strain relief
- No
- Material quality
- Thermoplastic
- Imprintable label
- With indication plate
- Suitable for number of connectors
- 2
- Shielded buses
- No
- Shielded housing
- No
- With lighting
- No
- Luster terminal
- No
- With dust cover
- Yes
- With imprint
- No
- Impact strength
- IK03
- With buses/couplings
- No
- Support ring
- Yes
- Transparent
- No
- Suitable for degree of protection (IP)
- IP20
- Device width
- 63 mm
- Device height
- 63 mm
- Device depth
- 13.1 mm
- Min. depth of built-in installation box
- 32 mm
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395127346
- SAP 1000350537
- Code 81126874
Product Documentation
More from ABB
ABB
ABB GMA1SL0423A00 Gemini BASE H30 – SIZE 2 - 3;GEMINI BASE H30 – SIZE 2 - 3
ABB
ABB S402-B8 Miniature Circuit Breaker — 2P, Type B, 8 A, 10 kA
2CCS572001R0085
ABB
Kit HR/VR FP XT5 400A 3PCS (same lenght)
1SDA104774R1
ABB
ABB SN201M-B10 Miniature Circuit Breaker — 1P+N, Type B, 10 A, 10 kA
2CSS275101R0105
ABB
ABB 1SDA066585R1 LONG Handle Emergency FOR Adjustable Depth Rotary Handle XT1...XT4
ABB
ABB SACE Tmax XT6H 800 Moulded-Case Switch-Disconnector — 3-Pole
1SDA100796R1
ABB
Impressivo SENT.PL Signal JACK/KN White
2TKA003208G1
ABB

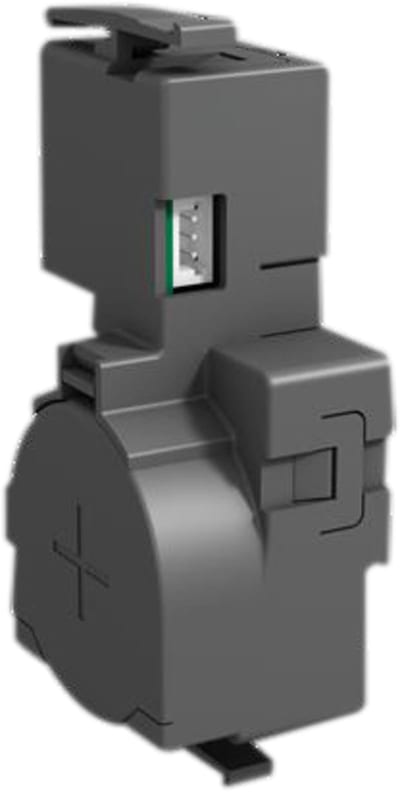

EKIP COM STA MODB.RS-485 XT2-XT4 INT F/P
