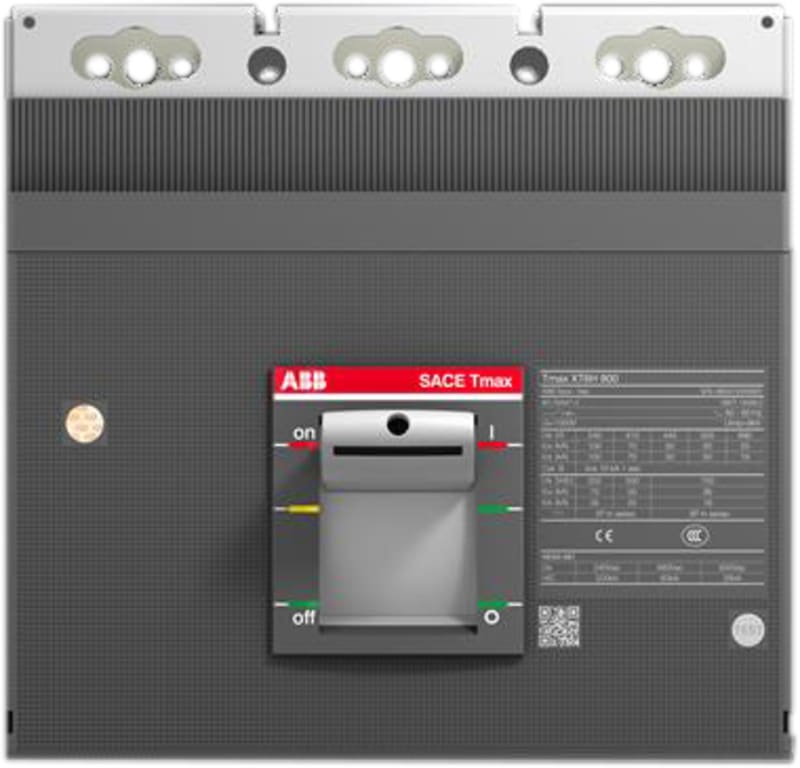

ABB SACE Tmax XT6H 800 Moulded-Case Switch-Disconnector — 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT6H 800 A frame moulded-case switch-disconnector (non-automatic isolating and switching duty, supplied without an overcurrent trip unit). 3-pole, F/F (front, fixed) terminals. Rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA100796R1, EAN 8056221008501, ABB/SAP material 1200638378, catalogue code 83052968.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT6 (moulded-case switch-disconnector, IEC 60947-2)
- Configuration
- XT6H 800 SWITCH UNIT 3p FF
- ABB order code (MPN)
- 1SDA100796R1
- EAN / GTIN
- 8056221008501
- ABB / SAP material no.
- 1200638378
- Frame
- XT6 (800 A frame)
- Trip unit
- none (switch-disconnector)
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.50
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.50
Cross References
- EAN 8056221008501
- SAP 1200638378
- Code 83052968
Product Documentation
