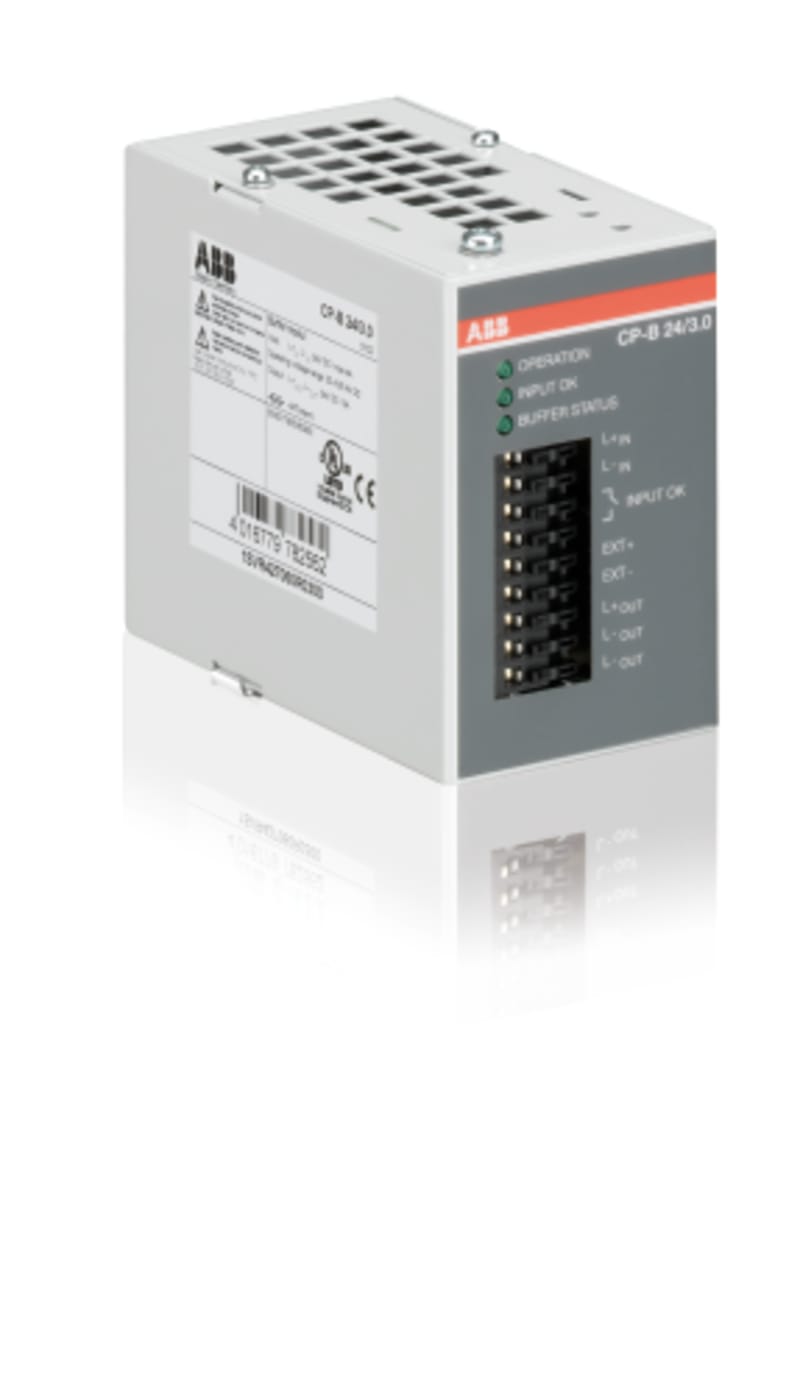

ABB 1SVR427060R0300 CP-B 24/3.0 Buffer module 24 V / 3 A, energy storage 1000 Ws
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 1SVR427060R0300 CP-B 24/3.0 Buffer module 24 V / 3 A, energy storage 1000 Ws is listed under Control & Automation / Power Supplies. HS code: 8504.40.
Technical Specifications
- Manufacturer part number (MPN)
- 1SVR427060R0300 EAN / GTIN: 4016779782562 Sales unit: pcs Product Net Width: 60 mm Product Net Height: 100 mm Product Net Depth / Length: 126.2 mm Function: Buffer module Rated Input Voltage (U IN ): 24 V DC Input Voltage (U in ): 23.7 ... 26.4 V DC Rated Frequency (f): DC Rated Output Power: 69 W Output Power: 69 W Rated Output Voltage: 24 V DC Output Voltage (U out ): 24 V DC Rated Output Current: 3 A Output Current: 3 A Degree of Protection: Housing IP20; Terminals IP20 Pollution Degree: 2 Connecting Capacity Input Circuit: Flexible with Ferrule 0.08 ... 1.0 mm²; Flexible 0.08 ... 1.0 mm²; Rigid 0.08 ... 1.5 mm² Connecting Capacity Output Circuit: Flexible with Ferrule 0.08 ... 1.0 mm²; Flexible 0.08 ... 1.0 mm²; Rigid 0.08 ... 1.5 mm² Wire Stripping Length: Input Circuit 6 mm; Output Circuit 6 mm minimum Mounting Distance: Other Device Same Type, Vertical 40 mm Mounting Position: 1 Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 Standards: CAN/CSA C22.2 No.107.1; IEC/EN 63000; EN 55011; IEC/EN 61000-6-2; IEC/EN 61000-6-4; IEC/EN 62040-2; UL 508 Connecting Capacity Input Circuit UL/CSA: Flexible with Ferrule 28-18 AWG; Flexible 28-18 AWG; Rigid 28-16 AWG Connecting Capacity Output Circuit UL/CSA: Flexible with Ferrule 28-18 AWG; Flexible 28-18 AWG; Rigid 28-16 AWG Ambient Air Temperature: Operation -40 ... +60 °C; Storage -40 ... +60 °C Maximum Operating Altitude Permissible: Without Derating 2000 m cUL Certificate: cUL508_E174460 Declaration of Conformity - CE: 1SVD982014-00 Declaration of Conformity - UKCA: 1SVD982014-10 UL Certificate: UL508_E174460 Object Classification Code: C ETIM 9: EC000382 - UPS eClass: V11.0 : 27040701 UNSPSC: 39121004 E-Number (Finland): 2712387 E-Number (Norway): 6609480
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4016779782562
- SAP 1200794297
- Code 84007184
Product Documentation
