INSERT, WLAN Internet Radio
Pricing
Request a quote
We reply within 24 hours
Product Description

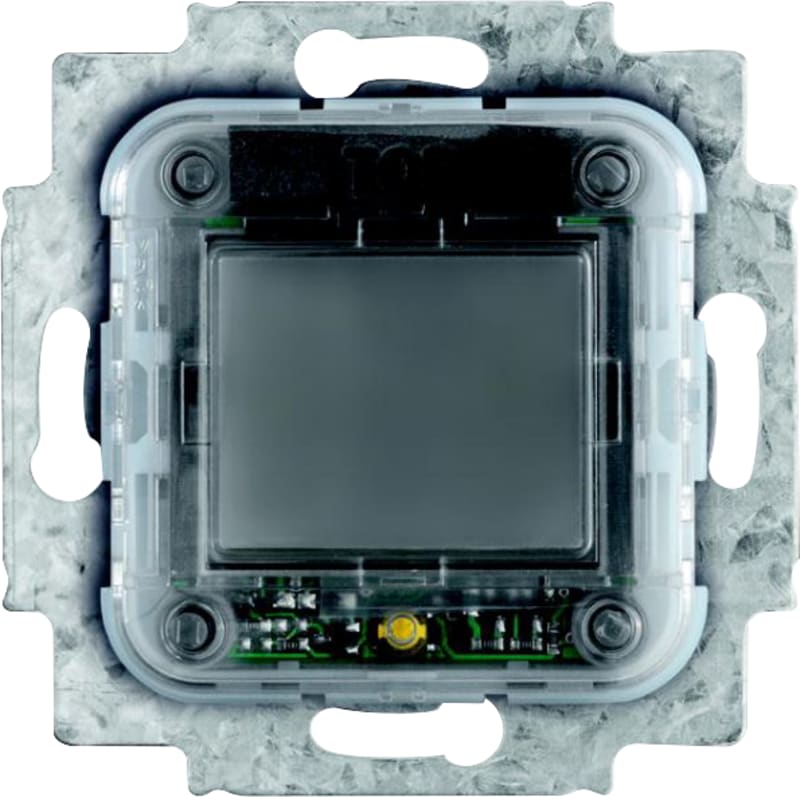

ABB 2CKA008200A0153 — WLAN Internet radio alarm clock for flush-mounted installation.For the reception of national and international radio stations via Internet. Radio station search possible via various genres. With high resolution graphic display and background illumination. With external AUX input.Integrated web-server for configuration and control. Remote operation with smartphone via browser surface. UPnP replay function. Additional 3rd party smartphone app needed. For mono/stereo operation. 8 radio stations storable. With time and date display. With alarm function. With short-time timer. With automatic switch-off function (automatic sleep mode). With extension input to remote-controlled ON/OFF switches. With integrated WLAN antenna. WLAN Standards: IEEE 802.11b / IEEE 802.11g and IEEE 802.11n (2,4 GHz). WLAN safety: WPA / WPA2. Permitted speaker impedance: 4 - 8 Ohm Can be installed as 1gang and in multiple combinations.No claw mountion. Fixing by use of keyholes.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA008200A0153
- EAN / GTIN
- 4011395157220
- Sales unit
- pcs
- Instructions and Manuals
- 2CKA000273B8718; 2CKA000273B8719; 2CKA000273B8720
- Mounting Type
- Flush Mounted
- Type of Fastening
- Mounting with Screw; Without Claw
- Modular Components Included
- Flush Mounted Insert with Control Element
- Ambient Air Temperature
- Operation 5 ... +40 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CKA001373B8724
- Transmission Standard
- Wireless LAN
- Display Type
- LCD
- Screen Type
- Flat
- Broadcast Standard
- Internet
- Terminal Type
- Screwless Terminals
- Rated Voltage (U r )
- 110 ... 230 V
- Rated Frequency (f)
- 50 / 60 Hz
- Design Range
- Platform 63; Busch-Duro 2000 SI; Reflex SI; Busch-balance SI; Busch-art linear; future linear; Busch-axcent; solo; Pure Stainless Steel; carat; Busch-Dynasty; alpha; impuls
- Design Range Variant
- Busch-Duro 2000 SI; Busch-Duro 2000 SI Linear; Reflex SI; Reflex SI Linear; Busch-art linear; Busch-art linear - with Decor Ring; Busch-art linear - pur; future; future linear; Busch-axcent; Busch-axcent pur; alpha nea; alpha exclusive
- Surface Finishing
- Untreated; Matt
- Material
- Thermoplastic
- Color
- black
- Product Net Width
- 71 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 48.4 mm
- Built-In Depth ( t 2 )
- 33 mm
- Screen Size
- 1.68 in
- Building Information Modeling – BIM
- 9AKK108471A9951
- Declaration of Conformity - CE
- 2CKA100000E2174
- EU Data Act Compliance Declaration
- 9AKK108471A4358
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000636 - Electronic insert for domestic switching devices
- eClass
- V11.0 : 27144018
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element
- Model
- Radio
- Halogen free
- Yes
- Surface protection
- Untreated
- Radio-controlled
- No
- Material quality
- Thermoplastic
- Transparent
- No
- IFTTT support available
- No
- Min. depth of built-in installation box
- 33 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8527.92
Cross References
- EAN 4011395157220
- SAP 1000696516
- Code 8632255
