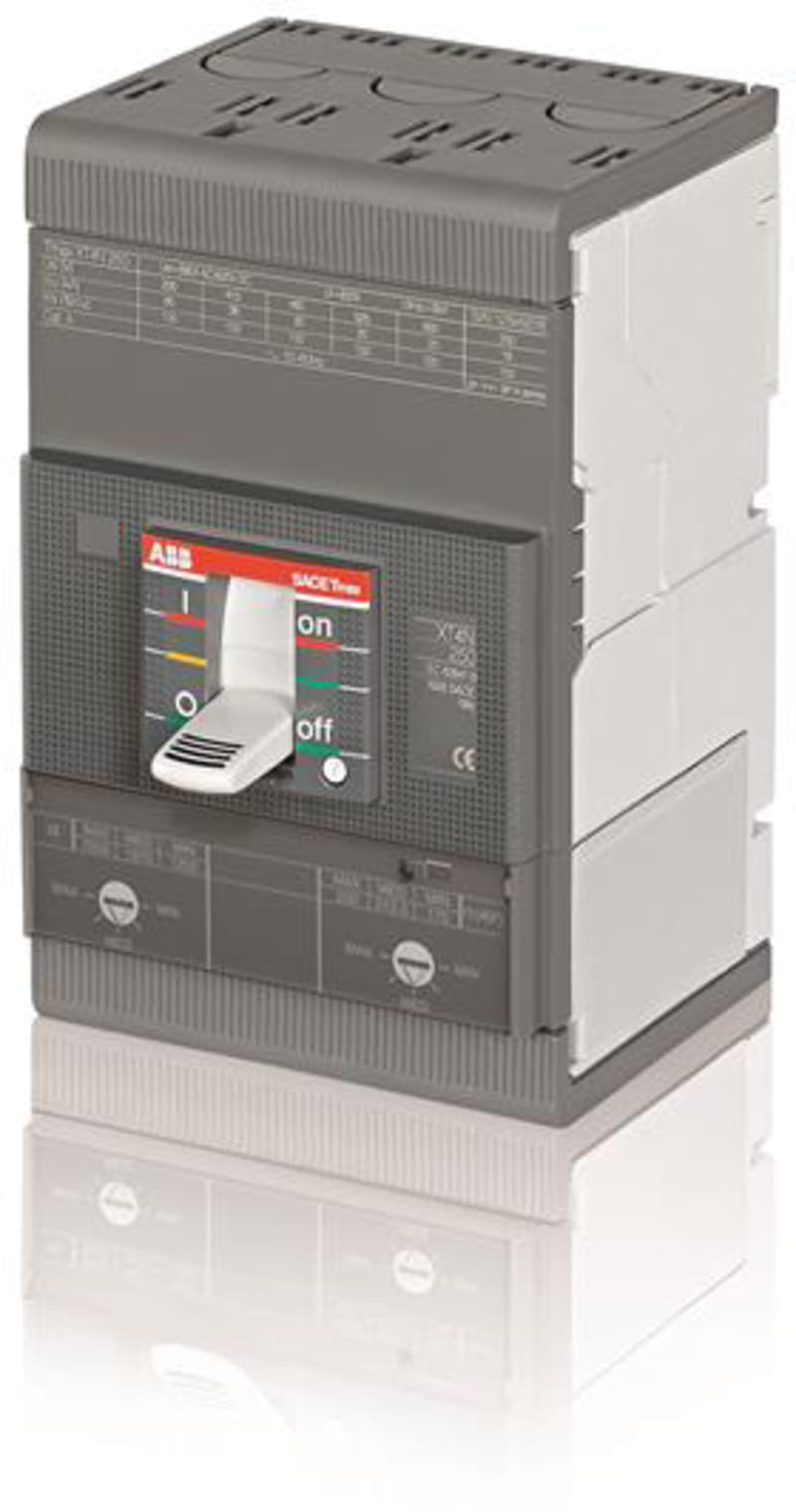

ABB SACE Tmax XT3N 250 Moulded-Case Circuit Breaker — MA 200 Im=1200, In=200 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT3N 250 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 200 A, 3-pole, F/F (front, fixed) terminals. Magnetic-only trip unit MA 200 Im=1200 (magnetic instantaneous short-circuit release, for motor protection). Breaking-capacity class N; rated ultimate short-circuit breaking capacity Icu = 36 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA068074R1, EAN 8015644019556, ABB/SAP material 1000792102, catalogue code 81406096.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT3 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT3N 250 MA 200 Im=1200...2400 3p FF
- ABB order code (MPN)
- 1SDA068074R1
- EAN / GTIN
- 8015644019556
- ABB / SAP material no.
- 1000792102
- Frame
- XT3 (250 A frame)
- Breaking-capacity class
- N
- Rated ultimate breaking capacity Icu (415 V AC)
- 36 kA
- Trip unit
- MA 200 Im=1200
- Rated uninterrupted current In
- 200 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644019556
- SAP 1000792102
- Code 81406096
