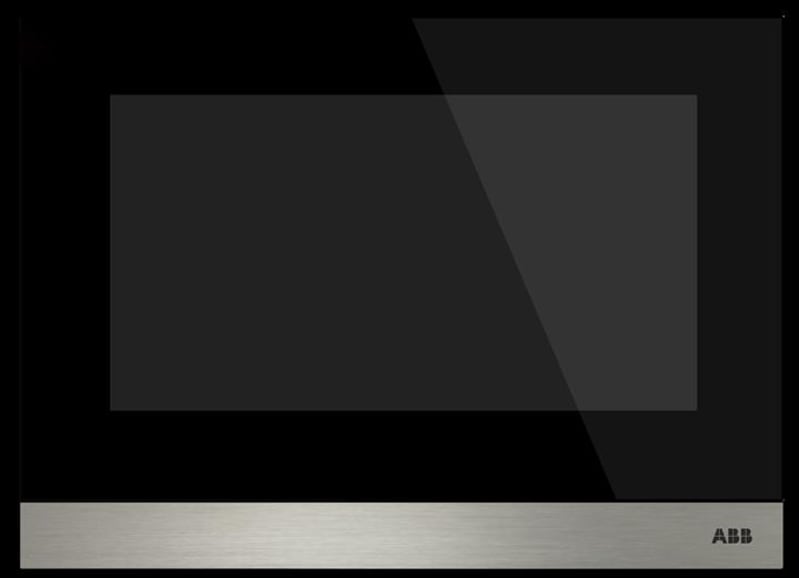

ABB ABB Welcome IP touch 7, with cyber security boot & storage, support DES+KNX+f@h+APP, LAN + WiFi, DC&PoE, with T-loop, end strip, SM&FM, black H8236-4B
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB H8236-4B — ABB Welcome IP touch 7, with cyber security boot & storage, support DES+KNX+f@h+APP, LAN + WiFi, DC&PoE, with T-loop, end strip, SM&FM, black.
Technical Specifications
- Manufacturer part number (MPN)
- H8236-4B
- EAN / GTIN
- 6955891816978
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Ambient Air Temperature
- Operation -10 ... +55 °C
- Degree of Protection
- IP30
- Communication Interface
- LAN + Wi-Fi
- Compatible Bus Systems
- free@home (TP); KNX (IP)
- Product Range
- free@home; KNX; Welcome IP
- Transmission Standard
- Ethernet; Wireless LAN
- Connection Type
- RJ45
- Display Type
- TFT
- Screen Type
- Touchscreen
- Terminal Type
- Screw Terminals, Pluggable
- Material
- Glass
- RAL Number
- Similar to RAL 9004
- Color
- black
- Product Net Width
- 199 mm
- Product Net Height
- 150 mm
- Product Net Depth / Length
- 17 mm
- Screen Size
- 7 in
- Building Information Modeling – BIM
- 9AKK108469A6981
- EcoSolutions Profile
- 9AKK108470A8454
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 40.51 %
- ABB Site Meeting Group Waste To Landfill Target
- No non-hazardous waste is sent to a landfill
- Extended Product Lifetime
- Product Modularity
- Offered with Takeback Services
- Take Back for Recycling
- Environmental Product Declaration - EPD
- 9AKK108470A8454
- Declaration of Conformity - CE
- 2TMD081313X0062
- Declaration of Conformity - UK-PSTI
- ABB2TMA130050B0065
- EU Data Act Compliance Declaration
- 9AKK108471A4300
- Cyber Security Software Support Period
- 2 year
- ETIM 9
- EC000779 - Indoor station door communication
- UNSPSC
- 43221525
- Mounting method
- Surface mounted
- Colour
- Black
- Width
- 199 mm
- Height
- 150 mm
- Depth
- 17 mm
- With memory function
- Yes
- Hands free
- Yes
- Overhear protected
- Yes
- Installation technique
- Network technology
- With video
- Yes
- Screen diagonal
- 177.8 mm
- Picture system
- PAL
- Hearing aid compatible
- Yes
- Property picture system
- Colour
- IFTTT support available
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8517.70
Cross References
- EAN 6955891816978
- SAP 1200640723
- Code 83056536
Product Documentation
More from ABB
ABB

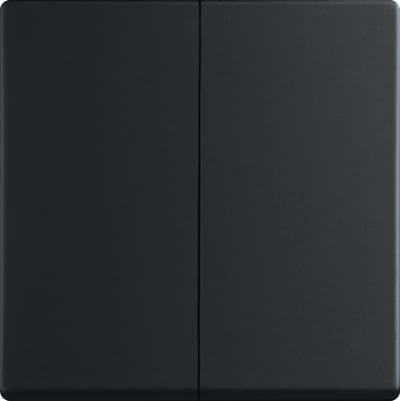

ABB 2CKA006730A0141 HUE SMART 2-Gang Rocker for Casambi Switch Insert
ABB

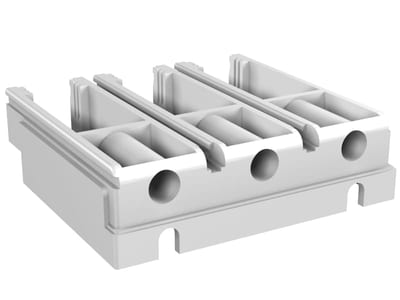

ADP MOUNTING Fast. x PF XT2 3P
ADPMONT.FIXED TERM.x PF XT2 3p
ABB
ABB SACE Tmax XT4L 160 Moulded-Case Circuit Breaker — TMA 100-1000, In=100 A, 4-Pole
1SDA068387R1
ABB

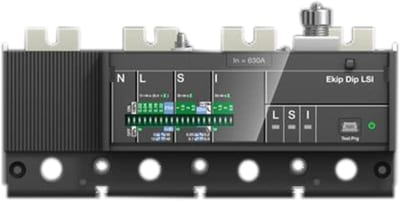

Ekip Dip LSI In=320 XT5 4P
