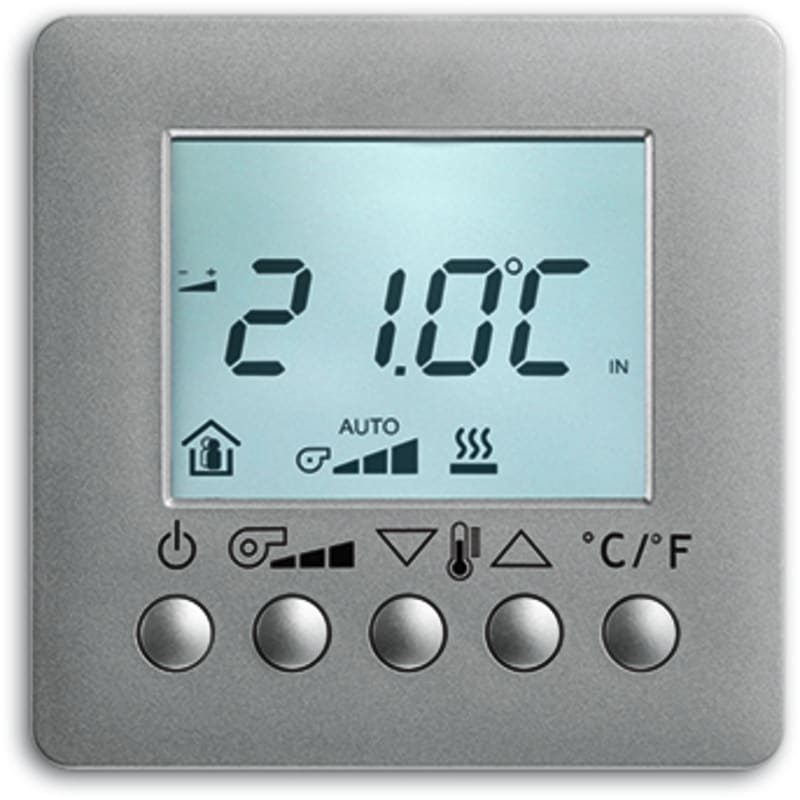

Room Thermostat 6138/11-83-500 Aluminium
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006138A0005 — Control element for room temperature control with LCD and 5 operating buttons. Used for single-room temperature control in heating and air-conditioning technology. The controller is a constant room temperature controller for fan convectors (fan coils) in 2-pipe and 4-pipe systems and conventional heating or cooling systems. The room temperature controller works in both heating and cooling mode. The fan stage can be switched manually or in automatic mode. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006138A0005
- EAN / GTIN
- 4011395116135
- HS code
- 8536.90
- Sales unit
- pcs
- Instructions and Manuals
- 2CKA000073B7263
- Mounting Type
- Surface Mounted
- Modular Components Included
- Complete Device
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Temperature Class Default
- I
- Data Sheet, Technical Information
- 2CKA000073B9534
- Number of Digital Inputs
- 0
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Transmission Standard
- Twisted Pair Wiring
- Display Type
- LCD
- Screen Type
- Flat
- Terminal Type
- Screw Terminals
- Surface Finishing
- Lacquered; Matt
- Material
- Plastic; Thermoplastic
- RAL Number
- Similar to RAL 9006
- Color
- aluminium
- Product Net Width
- 81 mm
- Product Net Height
- 81 mm
- Product Net Depth / Length
- 20 mm
- Dimension Diagram
- 2CKA000097E0639
- Screen Size
- 2.52 in
- EPLAN Data
- 9AKK108464A1202
- Building Information Modeling – BIM
- 2CKA110002E4876
- Declaration of Conformity - CE
- 2CKA100000E1191
- Declaration of Conformity - UKCA
- 2CKA400000E0286
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001101 - Room temperature controller for bus system
- eClass
- V11.0 : 27143133
- UNSPSC
- 39121803
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395116135
- SAP 1000464487
- Code 8880223
Product Documentation
More from ABB
ABB

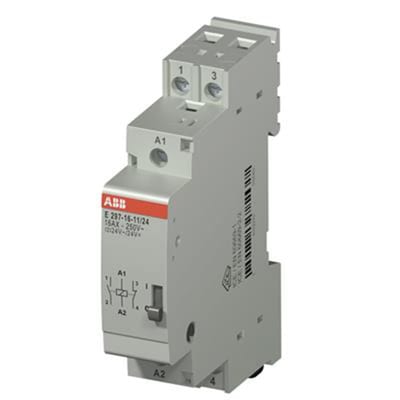

Installation Relay E297-16-11/24
ABB

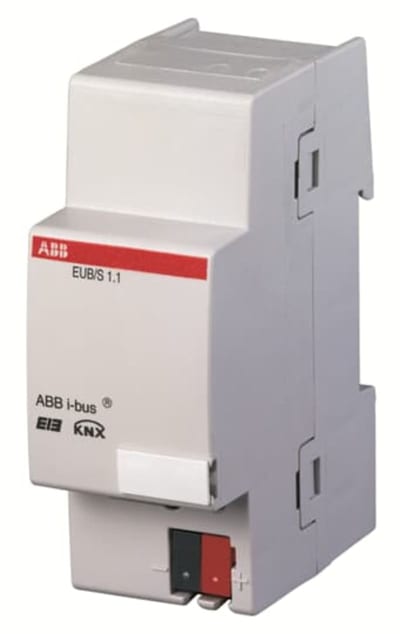

ABB 2CDG110066R0011 EUB/S1.1 KNX Bus Voltage Monitoring Module
ABB
Auxiliary contact OA3G01
OA3G01 Auxiliary contact
ABB
Meter 3F A43 112-100
2CMA100244R1000
ABB

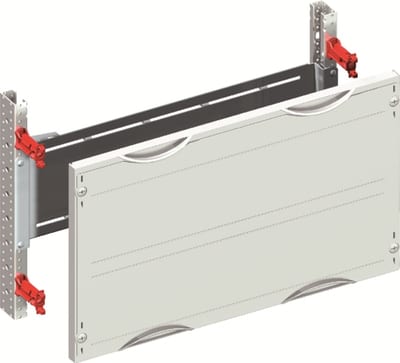

MBA291T for XT2 (2CPX042842R9999)
ABB

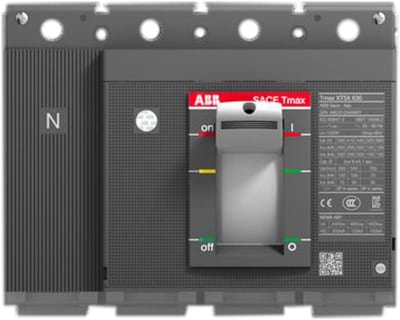

ABB SACE Tmax XT5X 400 Moulded-Case Switch-Disconnector — 4-Pole
1SDA100573R1
ABB

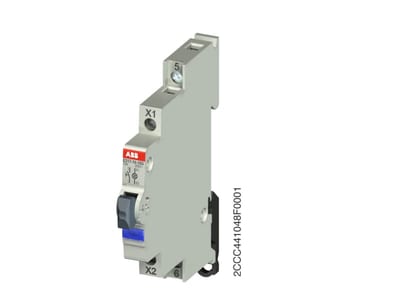

Illuminated Push Button E217-16-10G48
2CCA703174R0001
ABB

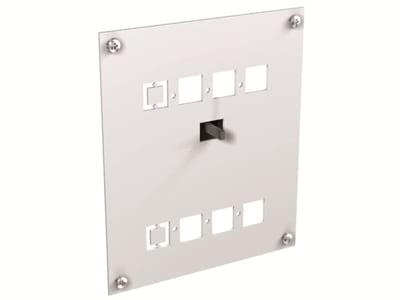

ABB 1SDA105126R1 Plate FOR Mechanical Interlock FOR Fixed Circuit-Breaker XT6
