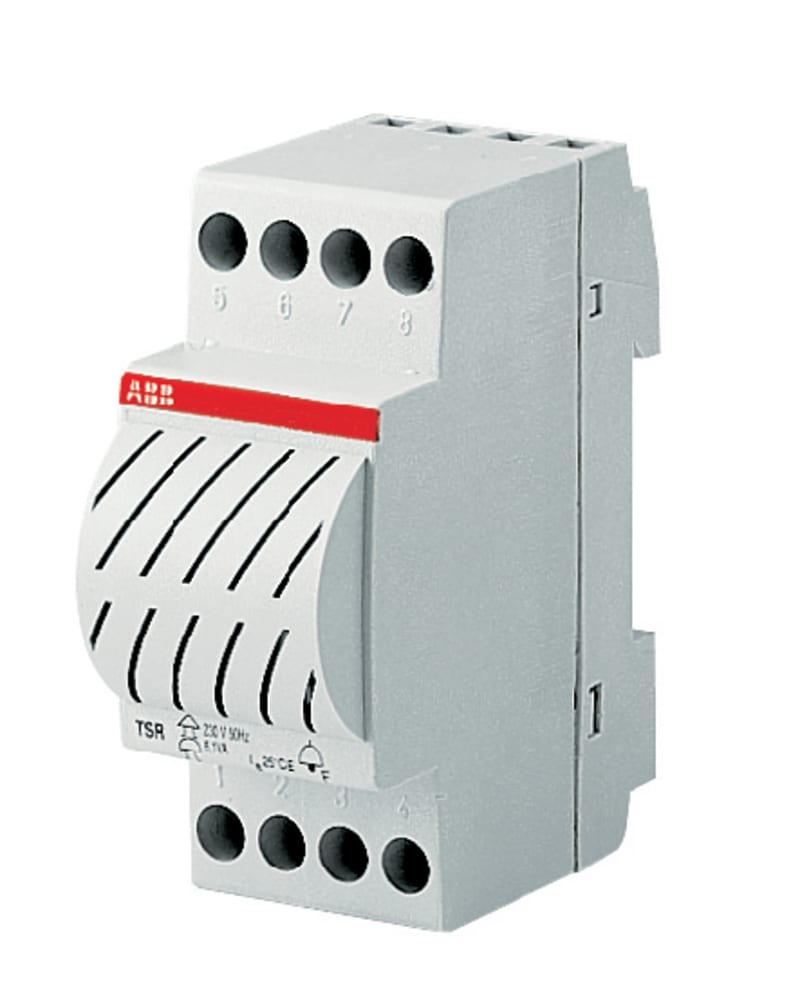

Summer TSR (2CSM100000R0831)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSM100000R0831 — Bell characterized by discontinuous use through one or more pushbuttons, suitable for public and tertiary acoustic signalling.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSM100000R0831
- EAN / GTIN
- 8012542369608
- Sales unit
- pcs
- Sound / Tone Type
- Intermittent
- Sound dB (A)
- Bell (1 m) 80 dB; Buzzer (1 m) 70 dB; Threetones (1 m) 84 dB
- Options Provided
- Transformer included
- Remarks
- Discontinous operations: the device need rest time between two consecutive functionings
- Cable Cross-Section
- Maximum 10 mm²
- Rated Voltage (U r )
- 230 V AC
- Rated Operational Voltage
- 230 V AC
- Primary Voltage
- 230 V AC
- Rated Frequency (f)
- 50 Hz
- Power Consumption (@P cons )
- 5.5 V·A
- Degree of Protection
- IP40
- Width in Number of Modular Spacings
- 2
- Product Net Width
- 35 mm
- Product Net Height
- 0.085 m
- Product Net Depth / Length
- 0.075 m
- Declaration of Conformity - CE
- 2CSC446012D2702
- Instructions and Manuals
- 9AKK107991A8334
- Mounting Position
- Vertical
- ETIM 9
- EC001547 - Bell transformer
- UNSPSC
- 39121026
- eClass
- V11.0 : 27031190
- Object Classification Code
- H
- Standards
- EN 62080
- Optical notification
- No
- Acoustic notification
- Yes
- Type of tone
- Continuous tone
- Sound level
- 80 dB
- Max. power loss
- 6 W
- Voltage type
- AC
- Built-in depth
- 74 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 8012542369608
- SAP 1200639398
- Code 83054657
Product Documentation
