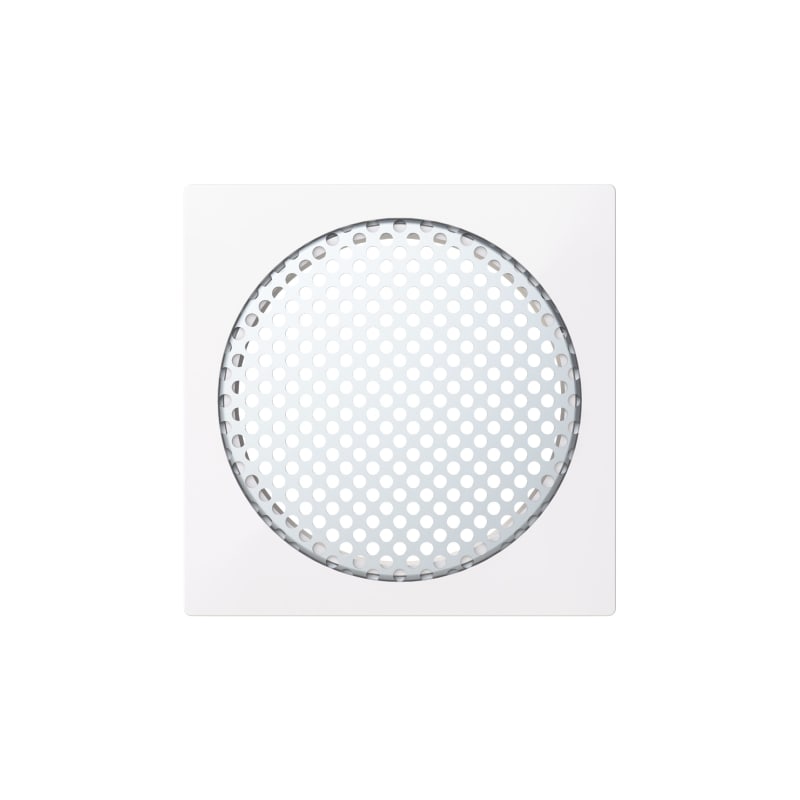

ABB 2TKA00005249 Center plate for loudspeaker
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2TKA00005249 Center plate for loudspeaker is listed under Cables & Wiring / Connectors. Sales unit: pcs; Package quantity: 16 pcs; Mounting Type: Flush-mounted; Type of Fastening: Clamp; Degree of Protection: IP20; Application: Loudspeaker connection.
Technical Specifications
- Manufacturer part number (MPN)
- 2TKA00005249
- EAN / GTIN
- 6438199012537
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Mounting Type
- Flush-mounted
- Type of Fastening
- Clamp
- Degree of Protection
- IP20
- Application
- Loudspeaker connection
- Type of Indicator
- Without indication field
- Outlet Orientation
- Straight
- Number of Batteries
- 0
- Design Range
- Saga
- Surface Finishing
- Untreated;Glossy
- Material
- Plastic;Thermoplastic
- RAL Number
- RAL 9003 - Signal White
- Color
- White
- Number of Modules
- 1
- Product Net Width
- 55 mm
- Product Net Height
- 21 mm
- Product Net Depth / Length
- 55 mm
- Built-In Depth ( t 2 )
- 40 mm
- Dimension Diagram
- 9AKK108470A8366
- Declaration of Conformity - CE
- 9AKK108468A6708;9AKK108468A6701, 9AKK108468A6703
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000018 - Insert/cover for communication technology
- Mounting method
- Flush-mounted
- Assembly arrangement
- Central cover plate
- Colour
- White
- Halogen free
- Yes
- With hinged lid
- No
- Utilization
- Loudspeaker connection
- Surface protection
- Untreated
- Outlet direction
- Straight
- With strain relief
- No
- Material quality
- Thermoplastic
- Imprintable label
- Without indication field
- Suitable for number of connectors
- 2
- Shielded buses
- No
- Shielded housing
- No
- With lighting
- No
- Luster terminal
- No
- With dust cover
- No
- With imprint
- No
- With buses/couplings
- No
- Support ring
- No
- Transparent
- No
- Suitable for degree of protection (IP)
- IP20
- Device width
- 55 mm
- Device height
- 21 mm
- Device depth
- 55 mm
- Min. depth of built-in installation box
- 40 mm
- Anti-bacterial treatment
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 6438199012537
- SAP 1200707874
- Code 83764915
Product Documentation
More from ABB
ABB
ABB S201M-C32 Miniature Circuit Breaker — 1P, Type C, 32 A, 10 kA
2CDS271061R0324
ABB

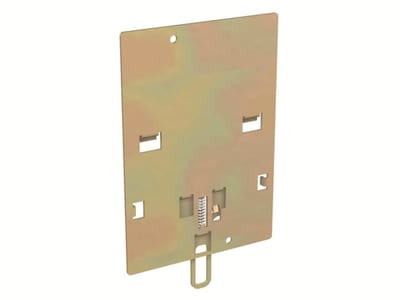

ABB 1SDA067134R1 Bracket FOR DIN 50022 Profile Mounting WITH Residual Current Release RC SEL 200 FOR MOD. 200mm XT1 IV
ABB

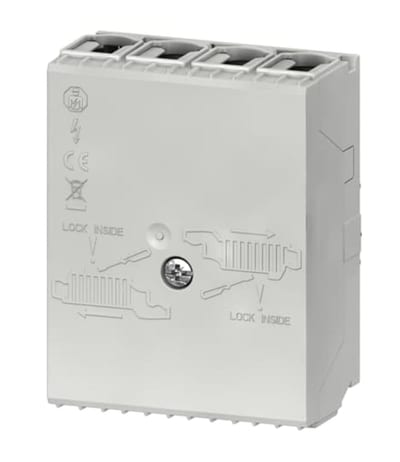

Connection Block ZLS924-3LNAB
2CCF181820R0001
ABB

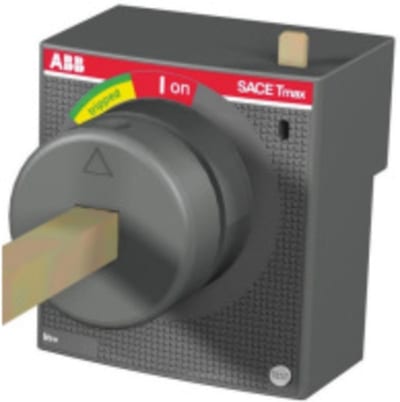

ABB 1SDA066484R1 BASE FOR Adjustable Depth Rotary Handle FOR Withdrawable Circuit-Breaker XT2-XT4
