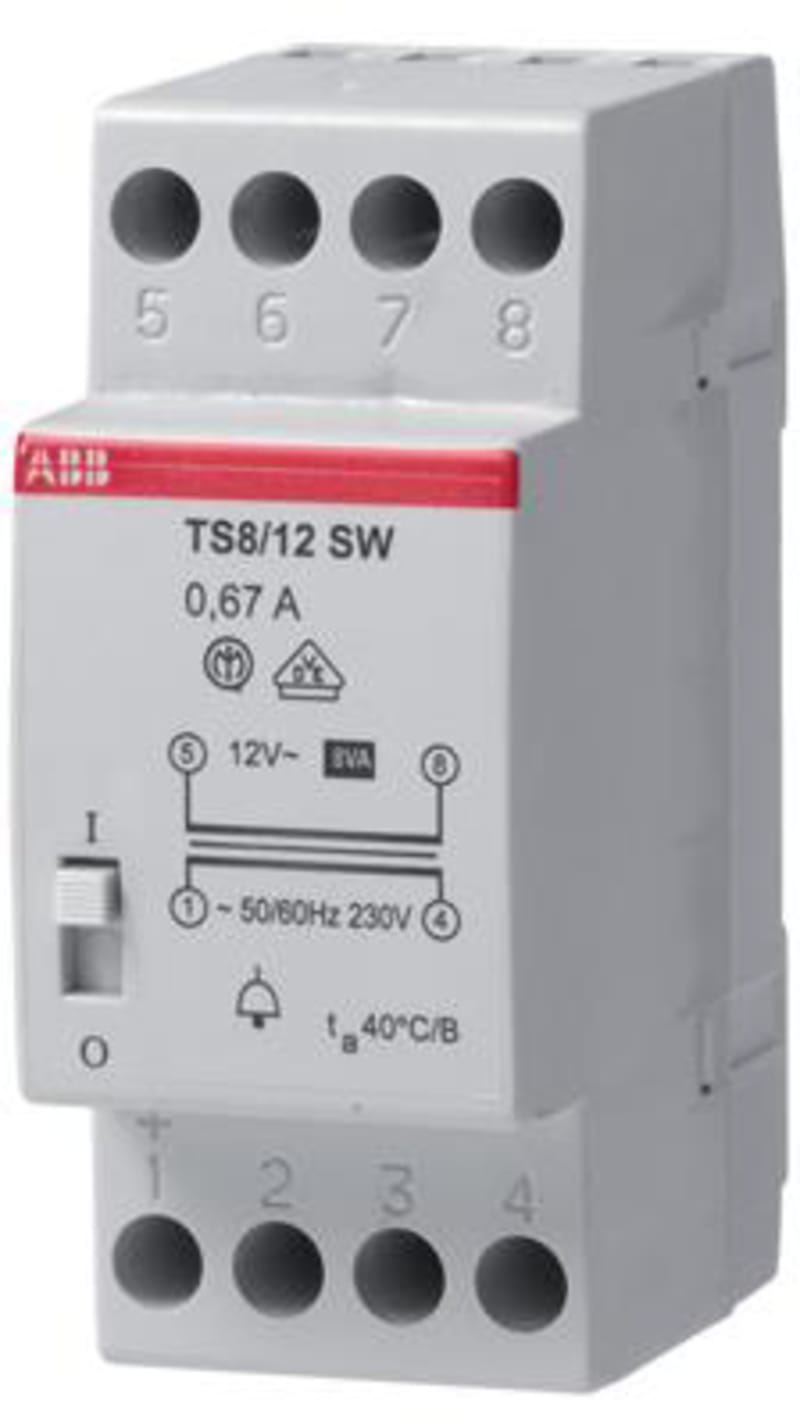

Bell Transformer M. Protection TS 8/4-8-12SW

ABB 2CSM081022R0811 — These transformers, with safety extremely-low voltage secondary (SELV), are suitable for driving loads that call for a discontinuous supply. Switch 0-1.

Manufacturer part number (MPN)

2CSM081022R0811

EAN / GTIN

8012542368700

HS code

8536.90

Sales unit

pcs

Application

Residential

Power Supply

8 V·A

Insulation Class

B

Tightening Torque

0.5 N·m

Transformer Type

Non - Inherently Short Circuit Proof

Options Provided

With switch

Remarks

Suitable for loads that require a discontinuous supply. Double insulation between primary and secondary windings

Connecting Capacity

2.5 mm²

Wire Stripping Length

9 mm

Rated Operational Voltage

230 V AC

Primary Voltage

230 V

Secondary Voltage

(7-8) 4 V AC; (5-7) 8 V AC; (5-8) 12 V AC

Secondary Current

0.66 A

Output Current Maximum (I out )

2 A

Rated Frequency (f)

50/60 Hz

Power Loss

Total 2.5 W

Rated Output Power

8 W

Connecting Capacity UL/CSA

14 AWG

Ambient Air Temperature

Operation +10 ... +40 °C

Degree of Protection

IP20

Width in Number of Modular Spacings

2

Product Net Width

35 mm

Product Net Height

0.085 m

Product Net Depth / Length

0.065 m

CAD Dimensional Drawing

9AKK106930A4670; 9AKK106930A4718

Declaration of Conformity - CE

2CSC446002D2701

VDE Certificate

9AKK107992A6774

ETIM 9

EC001547 - Bell transformer

UNSPSC

39121026

eClass

V11.0 : 27031190

Object Classification Code

T

Standards

IEC/ EN 61558-2-8

Certification Agency

IMQ

HS Code

8536.90

• EAN 8012542368700
• SAP 1200039058
• Code 81662545
