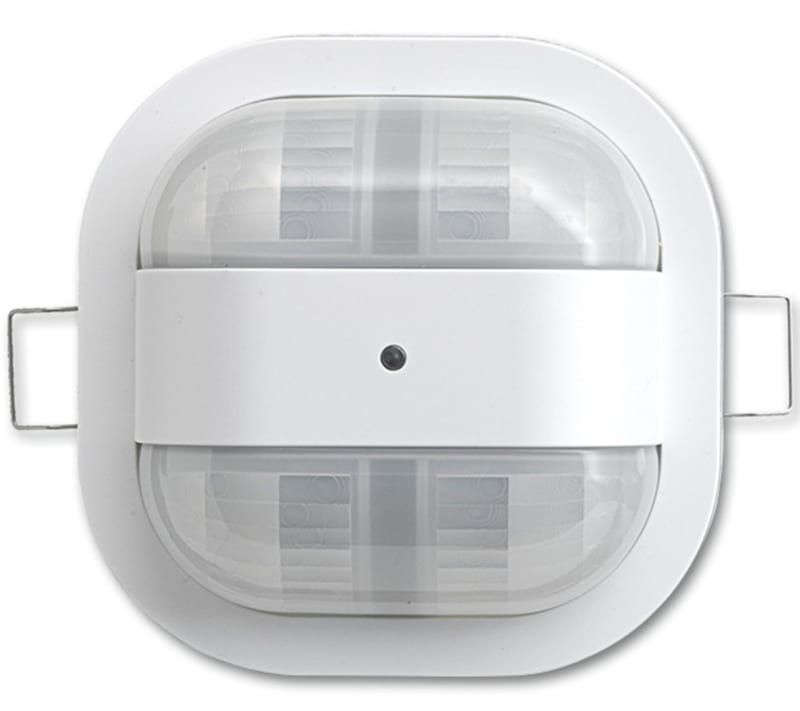

BEV.PROBE CORRUGATED 24M Slave
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006800A2755 — Slave presence detector for extension of the detection range of master presence detectors. Detection range (for installation height of 3 m): rectangular Walking persons: crosswise to the detector 24 m x 3 m, frontal/lengthways to the detector 14 m x 3 m. Mounting height 27 mm. Ceiling installation using integrated spring bracket. Twist protection via additional quick tensioning. Surveillance density: 92 sectors with 368 switching segments. Suitable for false ceilings with a board thickness from 9 to 25 mm. Hole size: Ø 68 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006800A2755
- EAN / GTIN
- 4011395217788
- Sales unit
- pcs
- Mounting Type
- Built-in
- Mounting Position
- Ceiling
- Mounting Height
- Optimum 2 m
- Modular Components Included
- Complete Device
- Ambient Air Temperature
- -5 ... 45 °C; Operation -5 ... +45 °C
- Degree of Protection
- IP40
- Data Sheet, Technical Information
- 2CKA001473B9577; 2CKA001673B9577
- Measuring Range
- 24 x 3 m
- Number of Inputs
- Extension 1
- Number of Switching Zones
- 368
- Sensor Type
- Passive Infrared
- Illuminance
- 5 ... 2000 lx
- Terminal Type
- Screwless Terminals
- Sensor Detection Range
- 90 ... 360 °; Horizontal 90 ... 360 °
- Rated Voltage (U r )
- 230 ... 230 V
- Auxiliary Voltage AC/DC
- 110 V AC/DC; 230 V AC/DC
- Input Voltage Type
- AC
- Rated Frequency (f)
- 50 ... 60 Hz
- Power Loss
- 0.3 W; Total 0 W
- Design Range
- ProfessionalLINE
- Surface Finishing
- Matt; Untreated
- Material
- Plastic; Thermoplastic
- RAL Number
- Similar to RAL 9016
- Color
- white
- Product Net Width
- 94 mm
- Product Net Height
- 94 mm
- Product Net Depth / Length
- 76 mm
- Built-In Depth ( t 2 )
- 49 mm
- Declaration of Conformity - CE
- 2CKA100000E0700
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000133 - Movement sensor/presence detector complete
- eClass
- V11.0 : 27144007
- Nominal voltage
- 230 V
- Colour
- White
- Width
- 94 mm
- Model
- Presence detector
- Halogen free
- Yes
- Height
- 94 mm
- Depth
- 76 mm
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- Creep-under protection
- Yes
- Voltage type
- AC
- Frequency
- 50–60 Hz
- With remote control
- No
- Suitable for wall mounting
- No
- Built-in diameter
- 68 mm
- Staircase light controller
- Yes
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 6 m
- Max. reach sideways
- 6 m
- Temperature
- -5–45 °C
- Ambient temperature
- -5–45 °C
- Response value sensitivity adjustable
- No
- Dim function with dimmer basic element
- No
- Response value luminosity
- 5–2000 lx
- Suitable for C-load
- No
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- No
- Substation input
- No
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- Yes
- Forced switch off
- No
- Scan angle
- 0 °
- Built-in length
- 49 mm
- Impact strength
- IK00
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Detection angle horizontal
- 90–360 °
- Min. switch-on time
- 0 s
- Response value luminosity adjustable
- No
- Optimum mounting height
- 2 m
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- No
- Min. starting current
- 0 A
- Min. depth of built-in installation box
- 49 mm
- Max. presence range
- 72 m²
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Movement sensor/presence detector technology
- Passive infrared
- Suitable for ceiling mounting
- Yes
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4011395217788
- SAP 1200253716
- Code 82212730
Product Documentation
More from ABB
ABB

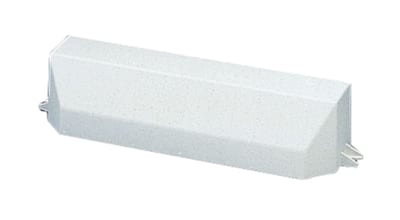

Cover FOR AM4/5 PMR 576
2TKA110010G1
ABB

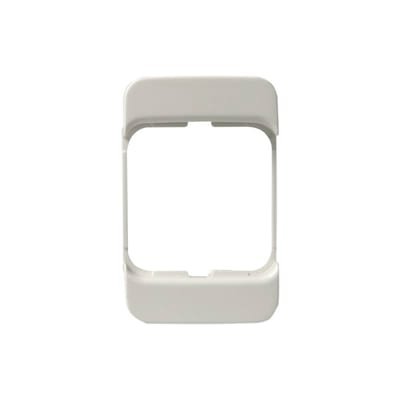

ABB 2TKA000802G1 Use to adapt Jussi-device to Jussi 100mm cover frames
ABB
Illuminated Push Button E217-16-01G
2CCA703254R0001
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M B16 A30MA
2CSR275180R1165
ABB
Mounting Frame FOR Keystone RJ45
1819.01
ABB

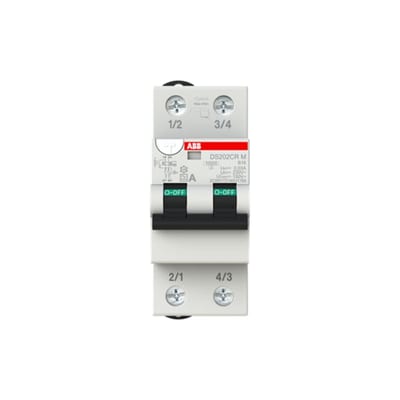

Residual Current Circuit Breaker WITH Overcurrent DS202CRM B16A 30MA BULK
DS202CR M B16 A30 U
ABB

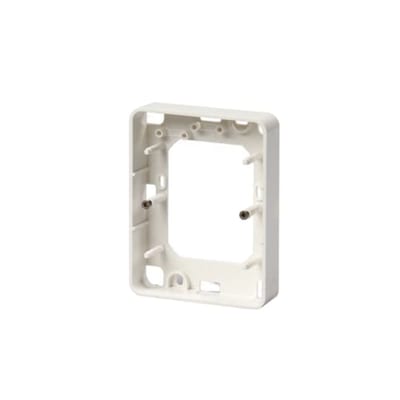

Jussi Cover FOR DBL Socket 22mm
