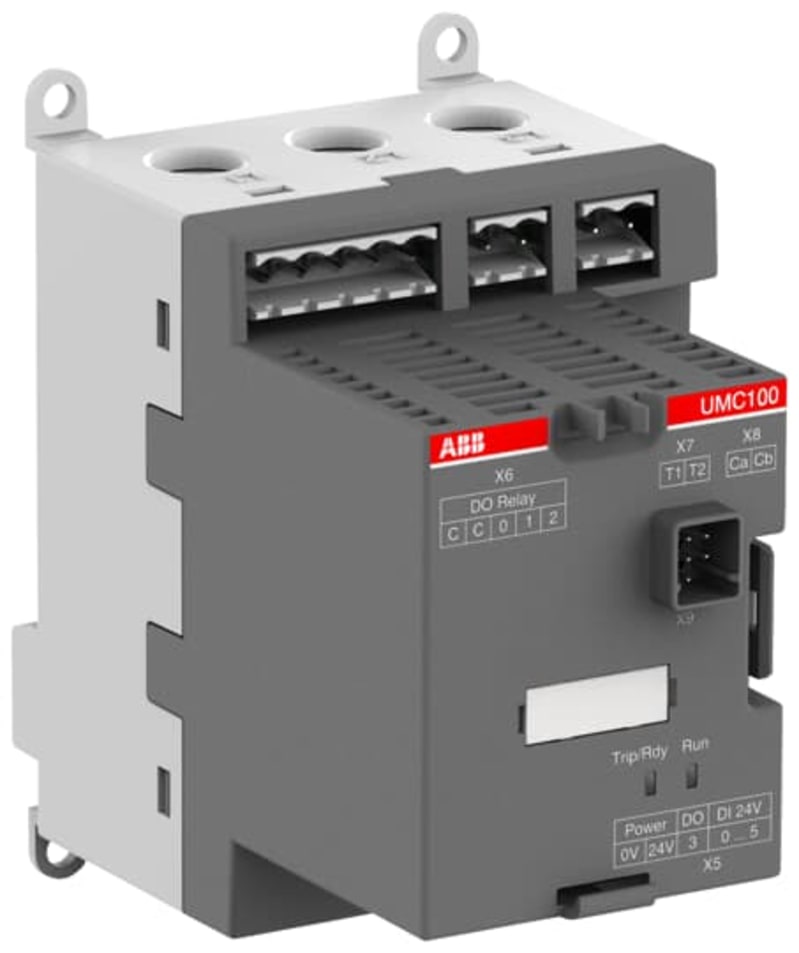

UMC100.3 110-240V (1SAJ530000R1100)

ABB 1SAJ530000R1100 — The intelligent motor controller UMC100.3 DC uses a 110.240 V AC/DC supply and is suitable to protect against overload. It can be connected to a variety of communication networks and has a wide range of additional parameters to maximize motor protection.

Manufacturer part number (MPN)

1SAJ530000R1100 EAN / GTIN: 4013614496929 Sales unit: pcs Voltage: 110-240 V Country of Origin: India Lead Time: 0 day Product Sales Status: Active Product Net Width: 70 mm Product Net Depth / Length: 107 mm Product Net Height: 106 mm Connecting Capacity: 1x 0.2-2.5 mm² minimum Mounting Distance: 0 mm Mounting Position: 1 ... 6 Number of Poles: 3P Pollution Degree: 3 Power Loss: Approximately 3.5 W Rated Control Supply Voltage (U s ): 110 ... 240 V AC/DC Rated Frequency (f): Main Circuit 50 Hz; Main Circuit 60 Hz; Supply Circuit 50/60 Hz Rated Impulse Withstand Voltage (U imp ): Auxiliary Circuit 4 kV Rated Operational Current (I e ): 63 A Rated Operational Voltage: Main Circuit 690 V AC; Main Circuit 1000 V AC Recommended Screw Driver: Pozidriv 1 Setting Range: 0.24 ... 63 A Standards: CAN/CSA C22.2 No.60947-1; CAN/CSA C22.2 No.60947-4-1; IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; IEC/EN 60947-8; UL 508 Terminal Type: Screw Terminals Tightening Torque: Auxiliary Circuit 0.5 N·m; Control Circuit 0.5 N·m Trip Class: class 5E; class 10E; class 20E; class 30E; class 40E Wire Stripping Length: 7 mm Connecting Capacity UL/CSA: 1x 28-12 AWG Maximum Operating Voltage UL/CSA: Auxiliary Circuit 230 V AC/DC; Main Circuit 600 V AC Tightening Torque UL/CSA: Auxiliary Circuit 8 in·lb; Control Circuit 8 in·lb Ambient Air Temperature: Operation 0 ... +60 °C; Storage -25 ... +70 °C Degree of Protection: IP20 Maximum Operating Altitude Permissible: Without Derating 2000 m Resistance to Shock acc. to IEC 60068-2-27: 15g 1 shock 11 ms Resistance to Vibrations: 4g 2 ... 100 Hz ABS Certificate: 17-HG1610225-PDA ATEX Certificate: Not available CB Certificate: DK-41658-A1-UL CCC Certificate: 2015010309791750 CQC Certificate: CQC2015010309791750 cULus Certificate: 20141015_E48139 Declaration of Conformity - CCC: 2020980309000543 Declaration of Conformity - CE: 1SVD981038-00 DNV Certificate: TAA000015X-revision4 EU Data Act Compliance Declaration: 1SAC200463M0001 eClass: V11.0 : 27370804 E-Number (Finland): 3709069 E-Number (Norway): 4552621 ETIM 6: EC002572 - Motor management device IDEA Granular Category Code (IGCC): 4354 >> Motor control centers Object Classification Code: B UNSPSC: 39121104

HS Code

8537.10

• EAN 4013614496929
• SAP 1200640690
• Code 83056547
