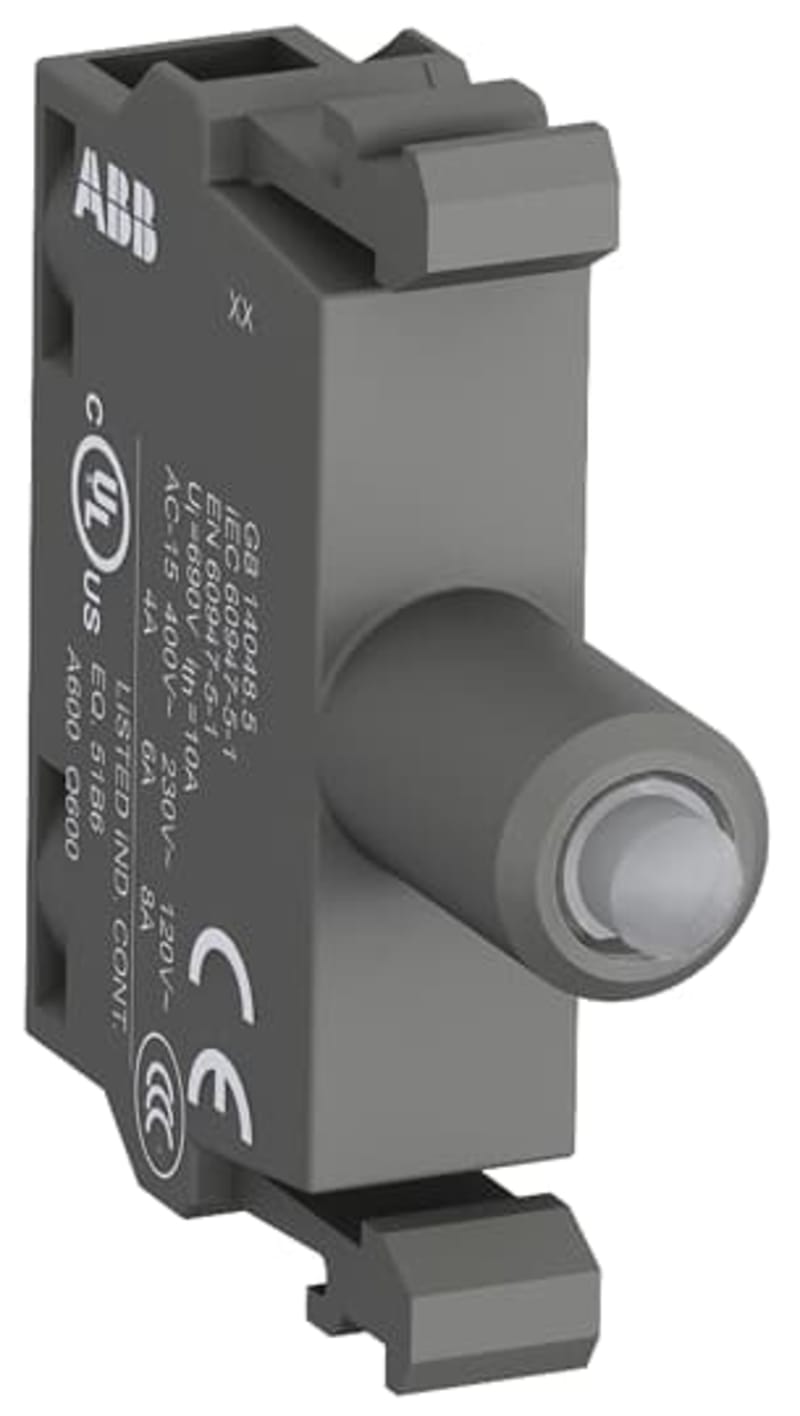

Lamp Block with LED MLBL-07R, 230 V, Red
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SFA611621R1071 — The MLBL-07R LED block is: - Red - Illuminated - Front mounting - 230 V. This LED block is part of ABB's modular plastic range, the most versatile range with a high level of flexibility and market-leading electrical ratings. Engineered for total reliability, longer lifetime, and highest mechanical durability. Self-cleaning contacts ensure reliable operation without the need for maintenance, increasing uptime. A high degree of protection guarantees reliability in extreme environments. The innovative design simplifies the entire process, from selection to easy and quick, tool-free installation. The perfect solution for every application.
Technical Specifications
- Manufacturer part number (MPN)
- 1SFA611621R1071
- EAN / GTIN
- 7320500544860
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Country of Origin
- China
- Lead Time
- 0 day
- Product Sales Status
- Active
- Product Net Width
- 0.01 m
- Product Net Height
- 0.044 m
- Product Net Depth / Length
- 0.042 m
- Ambient Air Temperature
- Operation -25 ... +70 °C; Storage -40 ... +85 °C
- Color
- Red
- Illumination
- Illuminated
- Lamp Type
- 230 V AC, integrated LED
- Mounting Type
- Front mounting
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Operational Voltage
- 230 V AC
- Power Loss
- Maximum 0.4 W
- Connecting Capacity
- Flexible with Ferrule 1 x 0.75...2.5 mm²; Flexible with Ferrule 2 x 0.75...2.5 mm²; Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²; Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²; Flexible 1 x 0.75 ... 2.5 mm²; Flexible 2 x 0.75 ... 2.5 mm²; Solid 1 x 0.75...2.5 mm²; Solid 2 x 0.75...2.5 mm²
- Connection Type
- Screw Clamp
- Terminal Type
- Screw Terminals
- Tightening Torque
- 0.9 N·m
- Wire Stripping Length
- 8 mm
- Suitable For
- MCBH-00; MCBH5-00; MP1; MP2; MP3; MP4; MPMT3; MPMP3; M2SS1; M2SS2; M2SS3; M2SS4; M2SS5; M2SS6; M3SS1; M3SS2; M3SS3; M3SS4; M3SS5; M3SS6; M3SS7; M3SS8; MPM1
- Suitable for Product Class
- Pilot Devices
- Connecting Capacity UL/CSA
- 1x 18...14 AWG; 2x 18...14 AWG
- Degree of Protection
- Terminals IP20
- CB Certificate
- SEMKO_SE-56219
- CQC Certificate
- CQC2008010305274953
- cULus Certificate
- 9AKK107046A9925
- Declaration of Conformity - CCC
- 2020980305001106
- Declaration of Conformity - CE
- 2CMT2015-005452
- Declaration of Conformity - UKCA
- 2CMT2020-006121
- DNV GL Certificate
- E-14107
- EAC Certificate
- 1SFC150017D1101
- Object Classification Code
- E
- ETIM 6
- EC000204 - Lamp holder block for control circuit devices
- eClass
- V11.0 : 27371209
- UNSPSC
- 39122221
- IDEA Granular Category Code (IGCC)
- 5219 >> Switch part or accessory
- E-Number (Finland)
- 2315775
- E-Number (Norway)
- 4373113
- E-Number (Sweden)
- 3705067
- EAN
- 7320500372852
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7320500544860
- SAP 1200924015
- Code 84210932
Product Documentation
