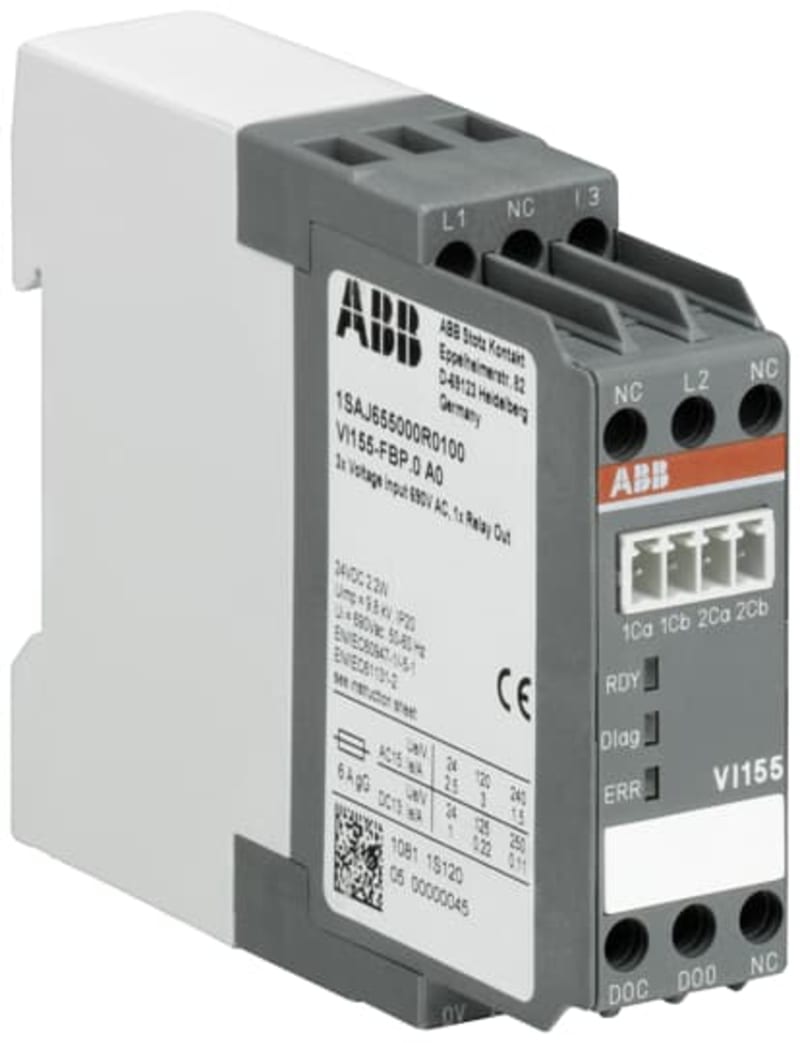

Voltage Module VI155-FBP.0
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SAJ655000R0100 — Voltage expansion module for UMC100. Also for use in IT networks. With this module the UMC100 provides voltage and power based supervision. Available process data: line to line voltage, power, energy, cosphi, THD (total harmonic distortion).
Technical Specifications
- Manufacturer part number (MPN)
- 1SAJ655000R0100
- EAN / GTIN
- 4016779837194
- Sales unit
- pcs
- Country of Origin
- Germany
- Lead Time
- 0 day
- Product Sales Status
- Active
- Product Availability Class
- Replaced
- Replacement Part ID
- 1SAJ655000R0101
- Product Net Width
- 22.5 mm
- Product Net Depth / Length
- 102 mm
- Product Net Height
- 78 mm
- Connecting Capacity
- 1x 0.75-2.5 mm²
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Power Loss
- Approximately 0.8 W
- Rated Control Supply Voltage (U s )
- 24 V DC
- Recommended Screw Driver
- Pozidriv 1
- Standards
- CAN/CSA C22.2 No.14; IEC/EN 60947-1; IEC/EN 60947-5-1; IEC/EN 61131-2; UL 508
- Suitable For
- UMC100-FBP; UMC100.3
- Suitable for Product Class
- Universal Motor Controllers
- Terminal Type
- Screw Terminals
- Tightening Torque
- Auxiliary Circuit 0.22 N·m; Control Circuit 0.6 ... 0.8 N·m
- Wire Stripping Length
- 7 mm
- Connecting Capacity UL/CSA
- Flexible with Ferrule 1x 18-14 AWG; Flexible 1x 18-14 AWG; Rigid 1x 20-12 AWG
- Degree of Protection
- IP20
- ABS Certificate
- 9AKK106930A7739
- ATEX Certificate
- Not available
- cULus Certificate
- cULus_20220318_E48139
- Declaration of Conformity - CE
- 1SVD981039
- DNV Certificate
- DNV_E-13261
- DNV GL Certificate
- TAA000015X
- GL Certificate
- 1SAA962005-0401
- eClass
- V11.0 : 27370805
- E-Number (Finland)
- 3709073
- E-Number (Norway)
- 4552564
- ETIM 6
- EC002613 - Extension module for motor management device
- IDEA Granular Category Code (IGCC)
- 4776 >> Electronic motor control and protection device
- Object Classification Code
- B
- UNSPSC
- 39121552
Standards & Compliance
- HS Code
- 9030.33
Cross References
- EAN 4016779837194
- SAP 1200640687
- Code 83056495
Product Documentation
