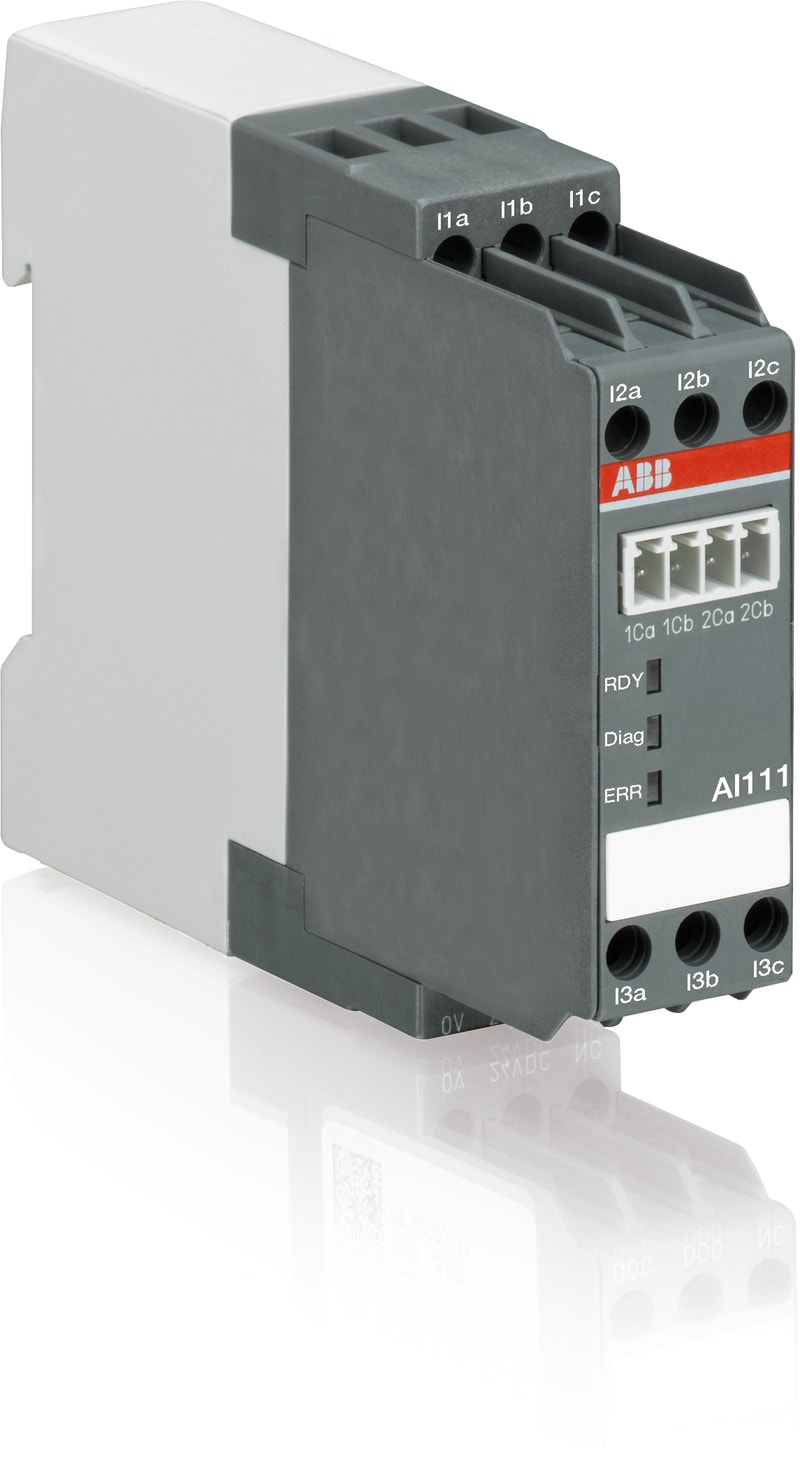

UMC accessories AI111.0
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SAJ613000R0101 — AI111.0 AI111.0 Analog Input-Module for UMC100, 3 inputs PT100, PT100, KTY83, KTY84, NTC, Supply 24 V DC. Two analogue extension modules can be connected at the same time.
Technical Specifications
- Manufacturer part number (MPN)
- 1SAJ613000R0101
- EAN / GTIN
- 4013614496967
- Sales unit
- pcs
- Product Net Width
- 22.5 mm
- Product Net Depth / Length
- 102 mm
- Product Net Height
- 78 mm
- Connecting Capacity
- 1x 0.75-2.5 mm²
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Power Loss
- Approximately 1 W
- Rated Control Supply Voltage (U s )
- 24 V DC
- Recommended Screw Driver
- Pozidriv 1
- Standards
- CAN/CSA C22.2 No.61010-1; CAN/CSA C22.2 No.61010-2-201; IEC/EN 61131-2; UL 61010-1; UL 61010-2-201
- Sub-Function
- RTD; NTC; 0/4 - 20 mA
- Suitable For
- UMC100.3
- Terminal Type
- Screw Terminals
- Tightening Torque
- Auxiliary Circuit 0.22 N·m; Control Circuit 0.6 ... 0.8 N·m
- Wire Stripping Length
- 7 mm
- Connecting Capacity UL/CSA
- Flexible with Ferrule 1x 18-14 AWG; Flexible 1x 18-14 AWG; Rigid 1x 20-12 AWG
- Degree of Protection
- IP20
- ABS Certificate
- 9AKK106930A7739
- ATEX Certificate
- Not available
- cULus Certificate
- cULus61010_20211004-E179811
- Declaration of Conformity - CE
- 1SVD981046
- DNV Certificate
- TAA000015X-revision4
- eClass
- V11.0 : 27370805
- E-Number (Finland)
- 3709074
- E-Number (Norway)
- 4552518
- ETIM 6
- EC002613 - Extension module for motor management device
- IDEA Granular Category Code (IGCC)
- 3562 >> PLC analogue I/O-module
- Object Classification Code
- B
- UNSPSC
- 32151705
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4013614496967
- SAP 1200640682
- Code 83056530
