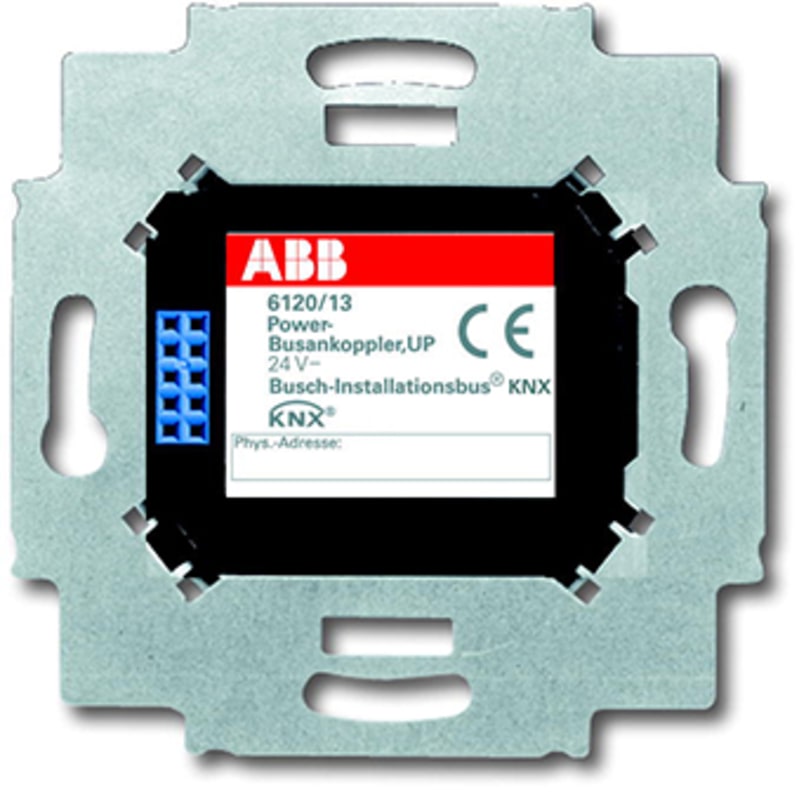

Power BUSTILK. 6120/13-500
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006120A0072 — For Busch-priOn® support frame, 1gang, 2gang, and 3gang. Additional power supply must be connected via enclosed terminal block, e.g. yellow/white wires in bus connection. KNX connection exclusively for bus communication. The bus can be connected via enclosed terminal block.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006120A0072
- EAN / GTIN
- 4011395102275
- Sales unit
- pcs
- Instructions and Manuals
- 2CKA000273B7232
- Mounting Type
- Flush Mounted
- Type of Fastening
- Mounting with Screw
- Modular Components Included
- Flush Mounted Insert with Mounting Plate
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Number of Connections
- 1
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Transmission Standard
- Twisted Pair Wiring
- Connection Type
- Pin
- Terminal Type
- Bus Connection
- Rated Voltage (U r )
- 24 V DC
- Auxiliary Voltage AC/DC
- 24 V DC
- Design Range
- priOn
- Product Net Width
- 71 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 23.5 mm
- Built-In Depth ( t 2 )
- 22 mm
- Dimension Diagram
- 2CKA000097E4175
- EPLAN Data
- 9AKK108464A1129
- Declaration of Conformity - CE
- 2CKA100000E0978
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000634 - Bus coupler for bus system
- eClass
- V11.0 : 27143108
- Mounting method
- Flush-mounted
- Number of connections sensor/actuator
- 1
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Bus system LON
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Radio frequency bidirectional
- No
- Min. depth of built-in installation box
- 22 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4011395102275
- SAP 1000191699
- Code 8709602
Product Documentation
