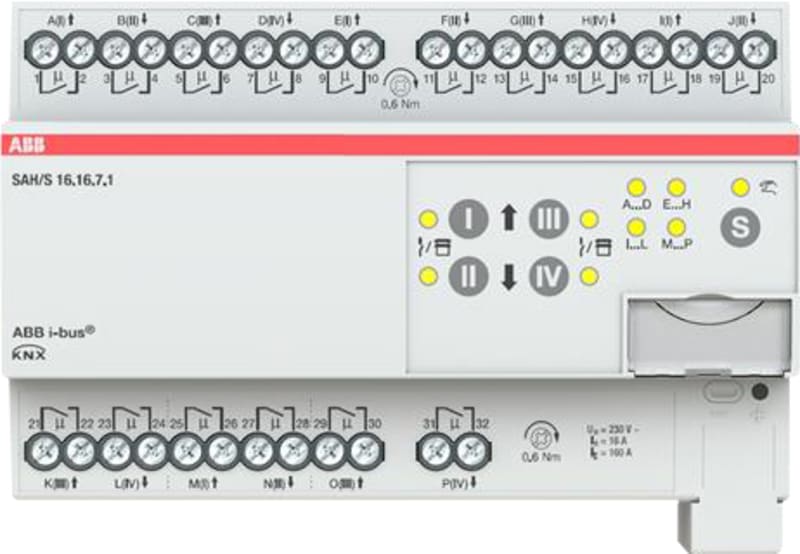

Kombiaktuator SAH/S16.16.7.1 (2CDG110251R0011)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG110251R0011 — The compact 16 A combi switch actuator has 16 independent switching relays. The outputs can be used individually via ABB i-bus® KNX for switching electrical loads or in pairs for controlling 230 V AC roller shutter or blind drives (no electromechanically interlocking). The device features a manual operation, which can also be disabled. Via the manual operation the outputs can be operated manually and the switching or driving status is displayed. The device is powered by KNX and requires no additional power supply.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG110251R0011
- EAN / GTIN
- 4016779066853
- HS code
- 8536.90
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941212P0002
- Wiring Diagram
- 9AKK108464A0319
- Mounting Type
- DIN-Rail
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC505182D0211
- Contact Position Indication
- ON / OFF
- Number of Outputs
- 16
- Number of LEDs
- 10
- Maximum Number of Switching Outputs
- 16
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Transmission Standard
- Twisted Pair Wiring
- Utilization Category
- Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
- Manual Operation
- Yes
- Suitable for C-Load
- No
- Number of Batteries
- 0
- Terminal Type
- Bus Connection
- Voltage Range
- 230 V AC
- Auxiliary Voltage AC/DC
- KNX
- Output Voltage (U out )
- 230 V AC
- Rated Current (I n )
- 16 A
- Maximum Switching Current
- 16 A
- Maximum Switching Power
- 1200 W
- Power Loss
- 8 W
- Color
- light grey
- Width in Number of Modular Spacings
- 8
- Product Net Width
- 140 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 63.5 mm
- Built-In Depth ( t 2 )
- 64.5 mm
- Dimension Diagram
- 2CDC072027F0017
- EPLAN Data
- 9AAC189169_EPLAN
- EcoSolutions Profile
- 9AKK108470A2429
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 30.5 %
- Circular Design Principles Lifetime
- 2CKA000073B5454
- ABB Site Meeting Group Waste To Landfill Target
- No non-hazardous waste is sent to a landfill
- Extended Product Lifetime
- Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services; Product Durability; Product Modularity
- Offered with Takeback Services
- Take Back for Recycling
- Environmental Product Declaration - EPD
- 9AKK108469A7992
- CB Certificate
- 9AKK107991A3222
- Declaration of Conformity - CE
- 2CDK505209D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0751
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001097 - Switch actuator for bus system
- eClass
- V11.0 : 27143125
- UNSPSC
- 31251516
- IDEA Granular Category Code (IGCC)
- 3268 >> Switch actuator
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779066853
- SAP 1200379219
- Code 82381464
