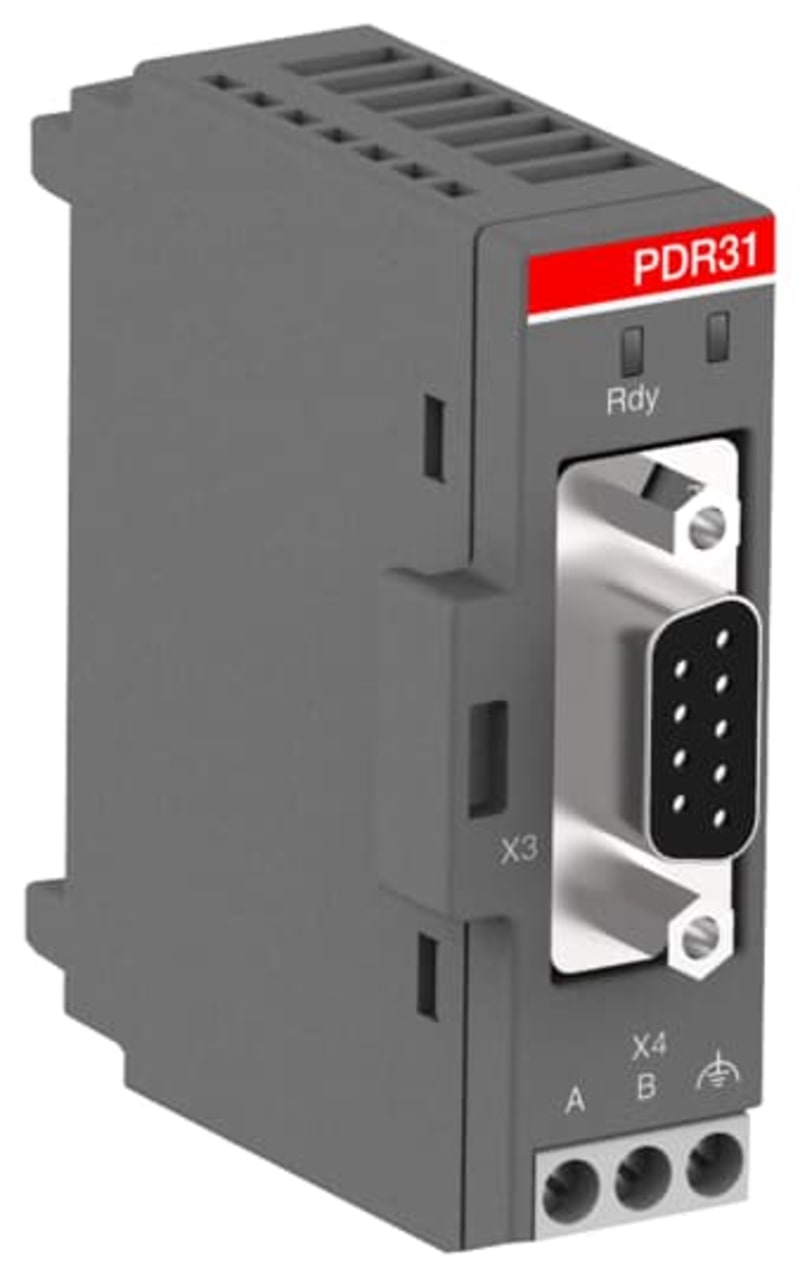

PDR31.0 PROFIBUS Endemotstand
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SAJ243000R0001 — The PDR31.0 is an active bus termination, which is necessary to ensure stable communication in Profibus DP networks. The PDP32.0 ProfibusDP communication module itself cannot act as an active termination.
Technical Specifications
- Manufacturer part number (MPN)
- 1SAJ243000R0001
- EAN / GTIN
- 4013614499647
- Sales unit
- pcs
- Product Net Width
- 22.5 mm
- Product Net Depth / Length
- 59 mm
- Product Net Height
- 64 mm
- Connecting Capacity
- 1x 0.2-2.5 mm²
- Mounting Type
- UMC100.3/Single Mounting
- Mounting on DIN Rail
- With Single Mounting KIt
- Power Loss
- Approximately 0.5 W
- Rated Control Supply Voltage (U s )
- 24 V DC
- Recommended Screw Driver
- Pozidriv 1
- Standards
- IEC/EN 61131-2
- Suitable For
- UMC100
- Terminal Type
- Screw Terminals
- Tightening Torque
- Auxiliary Circuit 0.5 N·m; Control Circuit 0.5 N·m
- Wire Stripping Length
- 7 mm
- Connecting Capacity UL/CSA
- Flexible with Ferrule 1x 28-12 AWG; Rigid 1x 28-12 AWG
- Degree of Protection
- IP20
- ABS Certificate
- 9AKK106930A7739
- ATEX Certificate
- Not available
- Declaration of Conformity - CE
- 1SVD981004
- DNV Certificate
- TAA000015X-revision4
- eClass
- V11.0 : 27242608
- E-Number (Norway)
- 4552638
- ETIM 6
- EC001604 - Fieldbus, decentr. periphery - communication module
- Object Classification Code
- K
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4013614499647
- SAP 1200640686
- Code 83056539
Product Documentation
More from ABB
ABB
ABB VFI online double conversion,400V,13500W,RS232,USB,COM slot,includes 42X8AH batteries mounted linked and tested 4NWP103584A1510
ABB
ABB 1SDA067292R1 Magnetic Release Three-POLE IN AC-DC MA Iu 52 I3=314...728 A XT2
ABB

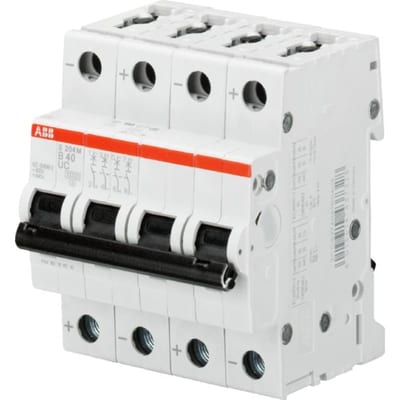

ABB S204M-C16 Miniature Circuit Breaker — 4P, Type C, 16 A, 10 kA
2CDS274061R0164
ABB

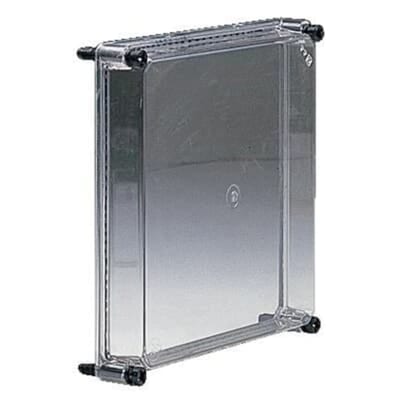

ABB APO iso-distributors. ADT7 Lid 370X300X45MM Polycarbonate, transparentwith lid screws 4TBO851176C0100
ABB

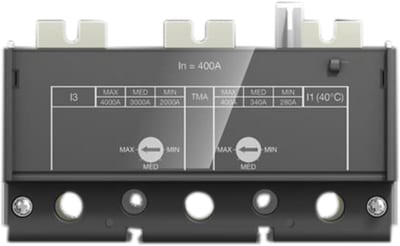

ABB 1SDA100628R1 Thermomagnetic Release Three-POLE IN AC-DC TMG R 320 I3=800...1600 XT5
ABB

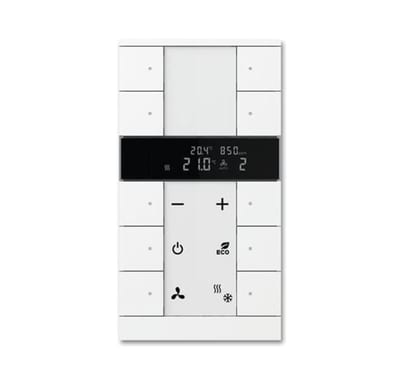

Tenton 5/10V White
SBC/U10.0.1-84
ABB

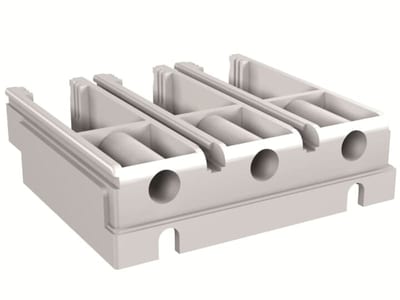

ABB 1SDA116191R1 Adaptor FOR Assembly Fixed Terminals FOR Fixed PART Three-POLE XT5 630A 1PC
ABB

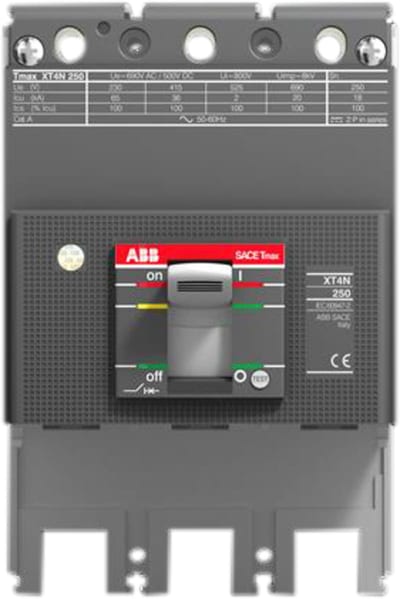

ABB SACE Tmax XT4L 160 Moulded-Case Switch-Disconnector — 3-Pole
