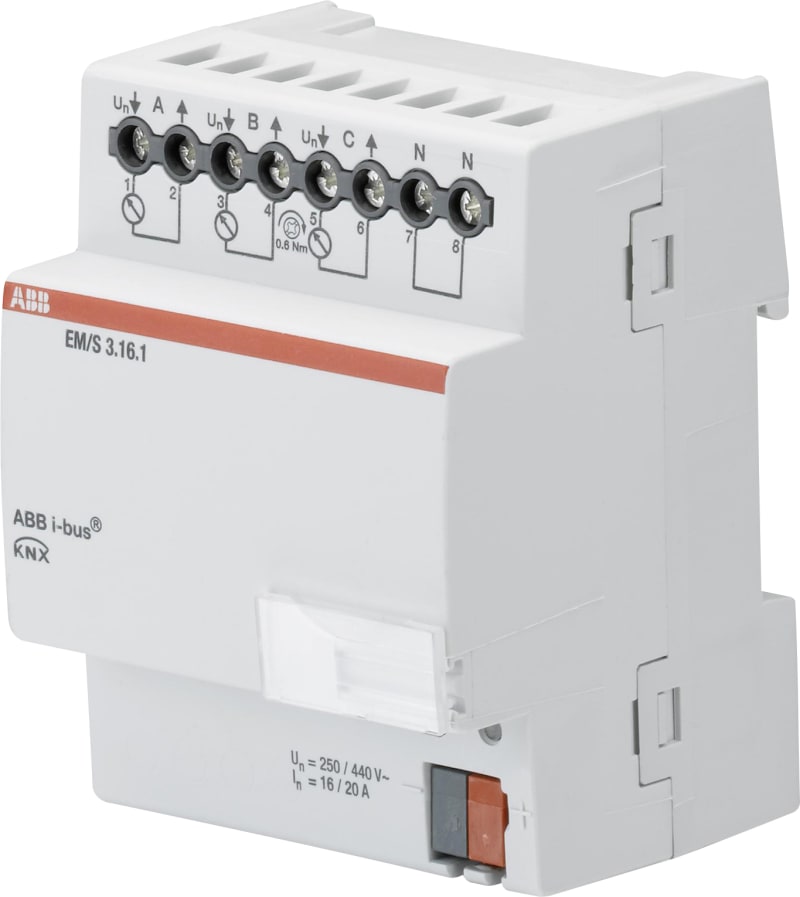

Energimeter 3 KAN. EM/S3.16.1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG110148R0011 — measures energy consumption and various electrical parameters in the terminal current. Active power, Current, Voltage and Frequency can be monitored via threshold values and peak loads can be limited through a simple load control. The measured values are provided via ABB i-bus® KNX.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG110148R0011
- EAN / GTIN
- 4016779877060
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941094P0002
- Wiring Diagram
- 9AKK108469A6550
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC505119D0201; 2CDC512069D0201
- Number of Outputs
- 3
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Connection Type
- Direct
- Manual Operation
- No
- Number of Batteries
- 0
- Voltage Range
- 110 ... 230 V AC
- Auxiliary Voltage AC/DC
- KNX
- Output Voltage (U out )
- 230 V AC
- Maximum Switching Current
- 20 A
- Power Loss
- 3 W; Total 3 W
- Width in Number of Modular Spacings
- 4
- Product Net Width
- 72 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Built-In Depth ( t 2 )
- 64.5 mm
- Dimension Diagram
- 2CDC072033F0015
- EPLAN Data
- 9AAC189206_EPLAN
- Declaration of Conformity - CE
- 2CDK512075D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0655
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- KNX Certificate
- 9AKK105710A0034
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001102 - Energy management for bus system
- eClass
- V11.0 : 27143126
- UNSPSC
- 39121803
- Object Classification Code
- A
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Radio frequency bidirectional
- No
- Local operation/hand operation
- No
- With LED indication
- Yes
- Suitable for C-load
- No
- Max. number of switching contacts
- 3
- Rated current
- 20 A
- Rated operating voltage
- 95–265 V
- Different phases connectable
- Yes
- With bus connection
- Yes
- Bus module detachable
- No
- Min. depth of built-in installation box
- 64.5 mm
- Modular expandability
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779877060
- SAP 1000407026
- Code 81091365
Product Documentation
