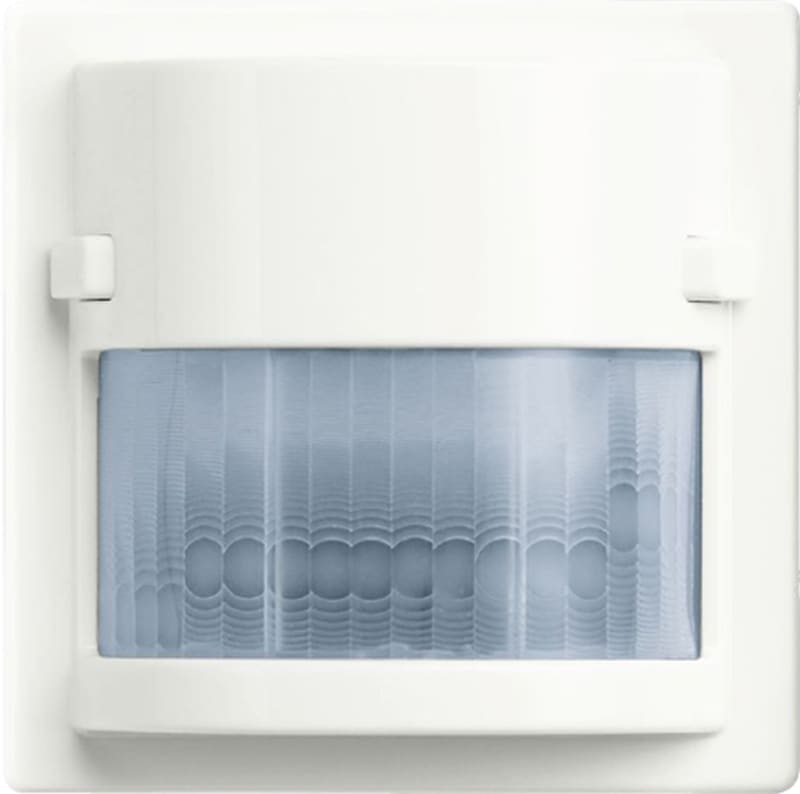

BEV.180° COMF.Multi 6122/02-884-500

ABB 2CKA006132A0292 — For ABB i-bus® KNX 6120/12-101, 6120/13. Movement detector with up to 4 channels. Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.).

Manufacturer part number (MPN)

2CKA006132A0292 EAN / GTIN: 4011395140697 Sales unit: pcs Instructions and Manuals: 2CKA000173B7414 Mounting Type: Flush-mounted Mounting Position: vertical Mounting Height: Optimum 0.8 m Modular Components Included: Cover Plate Ambient Air Temperature: Operation -5 ... +45 °C Degree of Protection: IP20 Data Sheet, Technical Information: 2CKA006134D0110; DEBJE-th_KNX_Bedienelemente_ABB_FR_V1-Spec Measuring Range: 6 m Number of Channels: 4 Compatible Bus Systems: KNX (TP) Product Range: KNX Transmission Standard: Twisted Pair Wiring minimum Switching Time: Switch-On 10 s Sensor Detection Range: Horizontal 0 ... 180 °; Vertical -40 ... -5 ° Design Range: Platform 63; future linear; Busch-axcent; carat Design Range Variant: future linear - matt; Busch-axcent; Busch-axcent pur Surface Finishing: Lacquered; Matt material: Plastic; Thermoplastic RAL Number: Similar to RAL 9016 Color: studio white matt Product Net Width: 63 mm Product Net Height: 63 mm Product Net Depth / Length: 40 mm Built-In Depth ( t 2 ): 33 mm Declaration of Conformity - CE: 2CKA100000E1018 Declaration of Conformity - UK-PSTI: 2CKA410000E0016 EU Data Act Compliance Declaration: 9AKK108470A9399 Cyber Security Software Support Period: 2 year EU Data Act Applicability and Compliance: Applicable - Compliant ETIM 9: EC001582 - Movement sensor for bus system eClass: V11.0 : 27143144 Bus system KNX Secure: No Bus system KNX Secure-RF (Radio Frequency): No Bus system KNX: Yes Bus system KNX-RF (Radio Frequency): No Bus system radio frequency: No Bus system LON: No Bus system Powernet: No Radio frequency bidirectional: No Model: Movement sensor material quality: Thermoplastic Surface protection: Lacquered Colour: White Transparent: No With bus connection: Yes Creep-under protection: No Operation mode switch: Yes Animal zone: No Staircase light controller: Yes Response value luminosity adjustable: No Teach-function for response value luminosity: No Optimum mounting height: 0.8 m Max. reach sideways: 2.5 m Max. reach frontally: 10 m Detection angle vertical: -40–-5 ° Detection angle horizontal: 0–180 ° Min. switch-on time: 10 s Max. duty cycle: 17 min Min. depth of built-in installation box: 33 mm Width: 63 mm Height: 63 mm Depth: 40 mm Country of origin: Germany

HS Code

8538.90

• EAN 4011395140697
• SAP 1000464513
• Code 8572725
