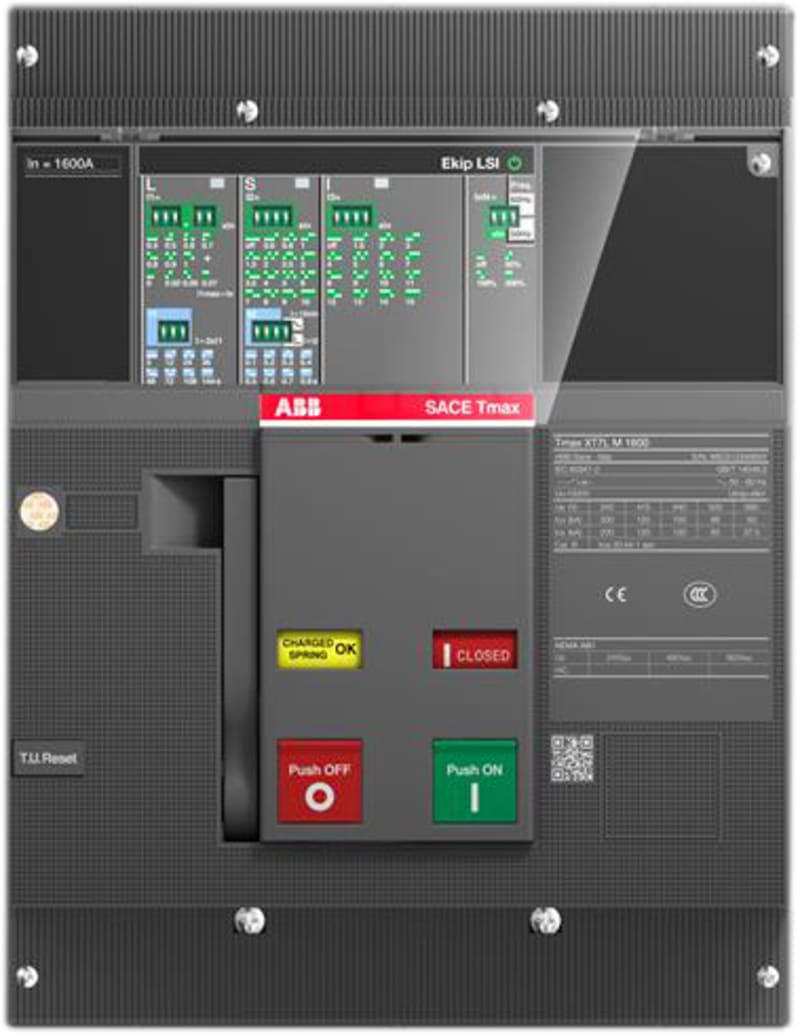

ABB SACE Tmax XT7L 1600 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=1250 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT7L 1600 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 1250 A, 3-pole, F/F (front, fixed) terminals. Electronic trip unit Ekip Dip LSI (L overload, S short-time-delay, I instantaneous protection). Breaking-capacity class L; rated ultimate short-circuit breaking capacity Icu = 120 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA101500R1, EAN 8056221013116, ABB/SAP material 1200638769, catalogue code 83052548.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT7 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT7L M 1250 Ekip Dip LSI In=1250A 3p FF
- ABB order code (MPN)
- 1SDA101500R1
- EAN / GTIN
- 8056221013116
- ABB / SAP material no.
- 1200638769
- Frame
- XT7 (1600 A frame)
- Breaking-capacity class
- L
- Rated ultimate breaking capacity Icu (415 V AC)
- 120 kA
- Trip unit
- Ekip Dip LSI
- Rated uninterrupted current In
- 1250 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8056221013116
- SAP 1200638769
- Code 83052548
Product Documentation
More from ABB
ABB
ABB S203M-Z10 Miniature Circuit Breaker — 3P, Type Z, 10 A, 10 kA
2CDS273061R0428
ABB
ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — In=160 A, 3-Pole 1SDA067717R1
ABB
ABB SN201M-B32 Miniature Circuit Breaker — 1P+N, Type B, 32 A, 10 kA
2CSS275101R0325
ABB
ABB 4-Pole, side operated, base mounted switch-disconnector with black direct mount handle, terminal bolt kit included 1SCA022779R5080
ABB
ABB S204M-C4 Miniature Circuit Breaker — 4P, Type C, 4 A, 10 kA
2CDS274061R0044
ABB
ABB SACE Tmax XT7L 800 Moulded-Case Circuit Breaker — Ekip Dip LS/In, In=800 A, 3-Pole
1SDA100954R1
ABB
TMA 80-800 XT4 3P (1SDA067384R1)
ABB

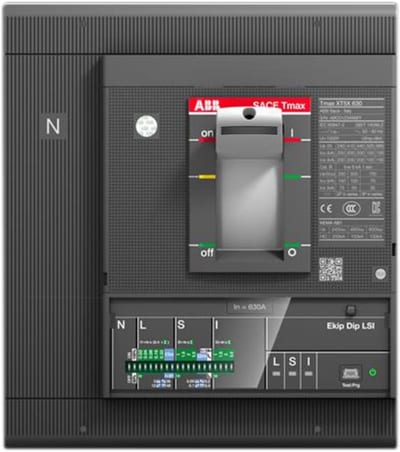

ABB SACE Tmax XT5N 400 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=250 A, 4-Pole
